C556, C556i Navy Self Powered Elliptical Fitness
Page 78
Procedure 7.28 - Replacing a Ramp Mounting Bracket
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm,
when the rear covers are removed.
Procedure
1. Remove the front, top, left and right rear cover sections per Procedure 7.18.
2. Remove three bolts, washers and single nut that fasten the right stairarm connector to the
right stairarm. Remove three bolts, washers and single nut that fasten the left stairarm
connector to the left stairarm.
3. Rotate both stairarms to the rear, so that they are resting on the floor to the rear of the EFX.

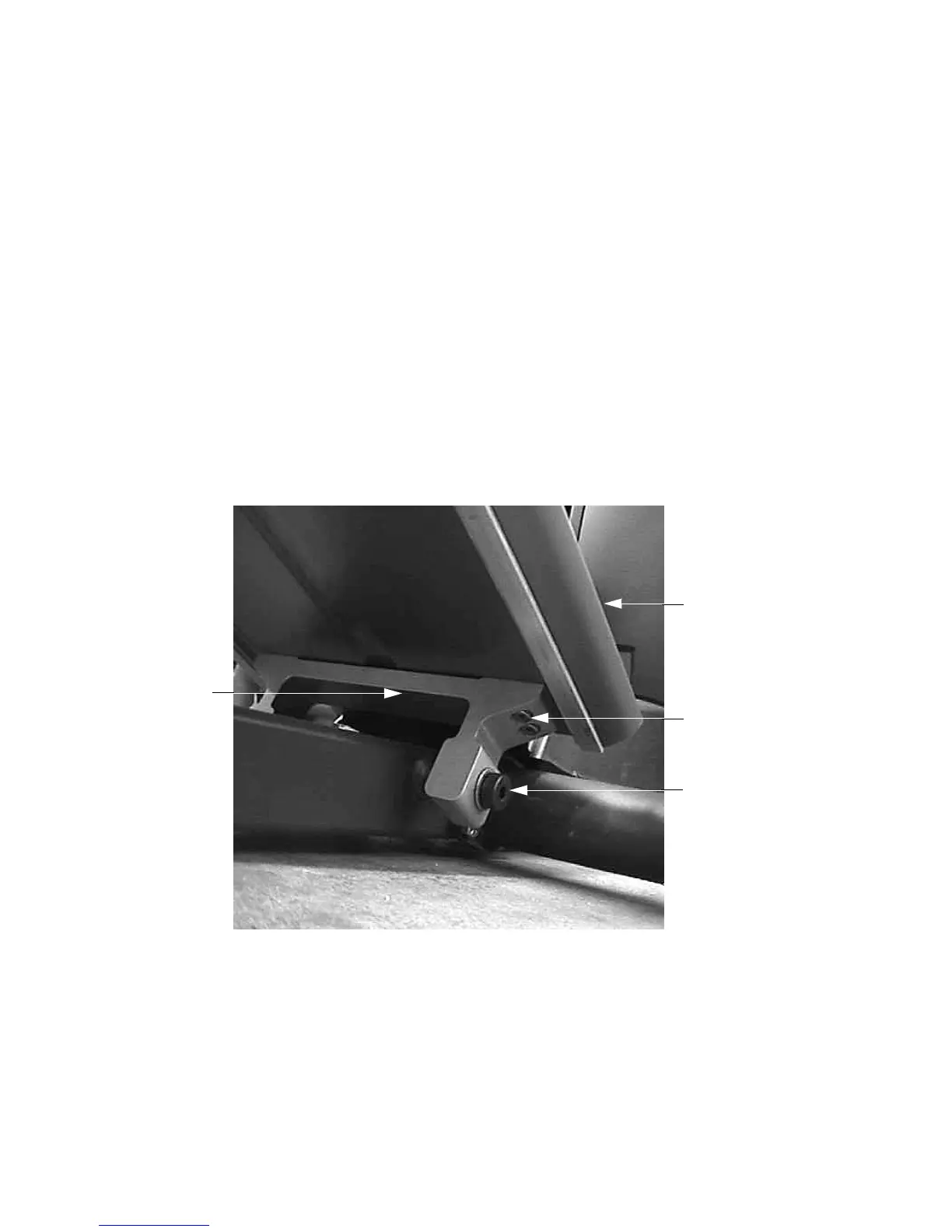

Diagram 7.27 - Ramp Mounting Bracket
4. Remove the screw that fastens the ramp end cap to the ramp. Remove the ramp end cap.
5. Remove the four bolts that fasten the ramp to the rear ramp bracket.
6. Remove two bolts, four washers and two nuts that fasten the ramp to the front ramp support.
Ramp Bracket
Ramp
Mounting Bolt
Mounting Bolt
To Next Page
