C556, C556i Navy Self Powered Elliptical Fitness
Page 59
Procedure 7.17 - Replacing an Upper Pivot Arm
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
1. Remove the handlebar.
2. Remove the bearing shaft from the upper end of the upper pivot arm. The bearing shaft will
be very tight, a long handled socket wrench with a 7/16” hex key will be necessary for
removal. See Diagram 7.12.

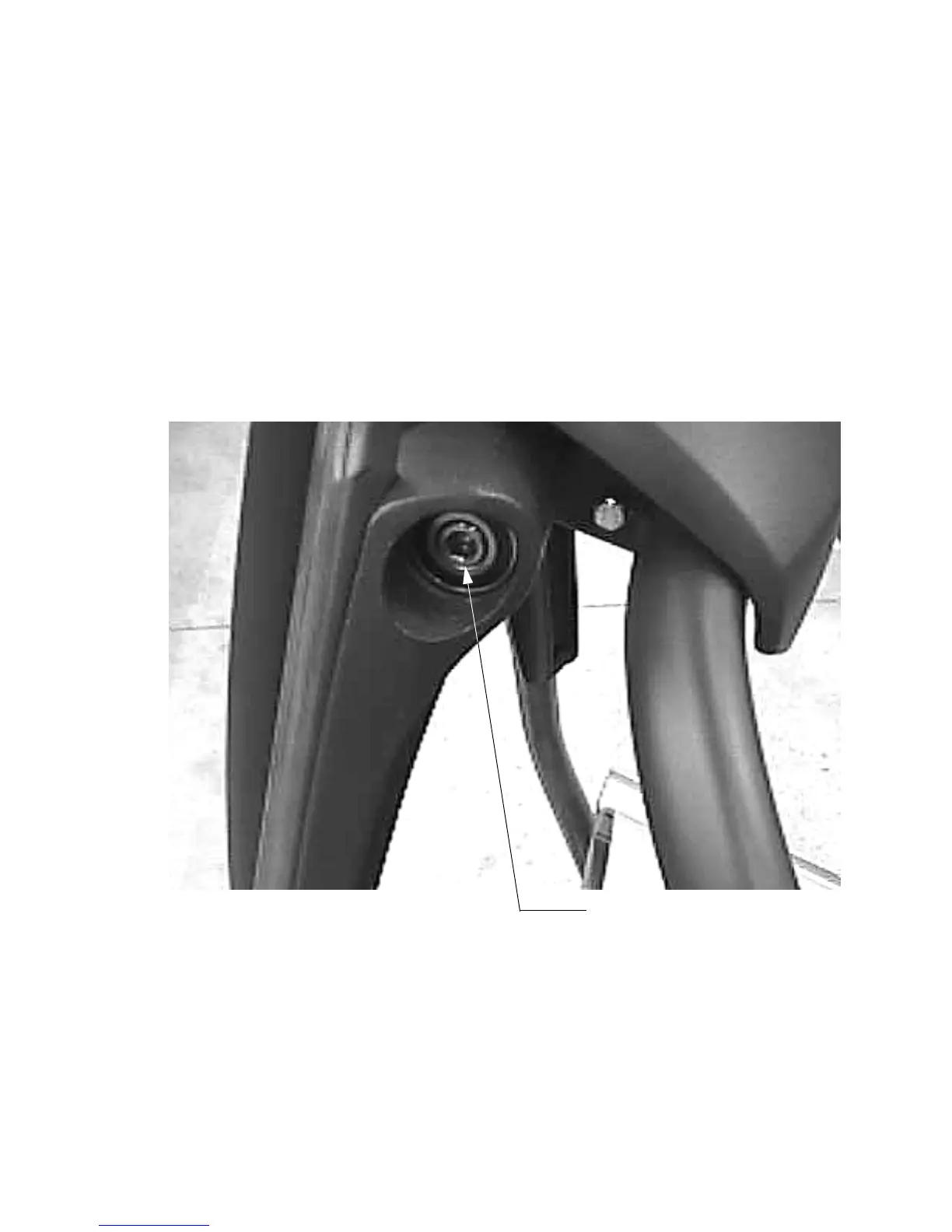

Diagram 7.12 - Upper Pivot Arm
3. Remove the upper pivot arm from the unit.
4. Set the upper end of the upper pivot arm in it’s mounting position and carefully thread the
bearing shaft into the frame. Care must be taken to avoid cross-threading the bearing shaft.
5. Torque the bearing shaft to 150 foot pounds (1800 inch pounds).
6. Replace the handlebar.
Bearing Shaft
