C556, C556i Navy Self Powered Elliptical Fitness
Page 52
Procedure 7.13 - Replacing a Ramp Assembly
Procedure.
1. Remove the three bolts that fasten each pivot arm connector to the stairarm. See Diagram
7.6.
2. Rotate both stairarms to the rear of the unit.
3. Remove the screws that fasten the ramp end cap to the ramp assembly. Slide the ramp end
cap out of the ramp assembly and rotate the ramp assembly toward the rear of the unit.
4. Remove four rear ramp mounting bolts (2 each side). See Diagram 7.9.

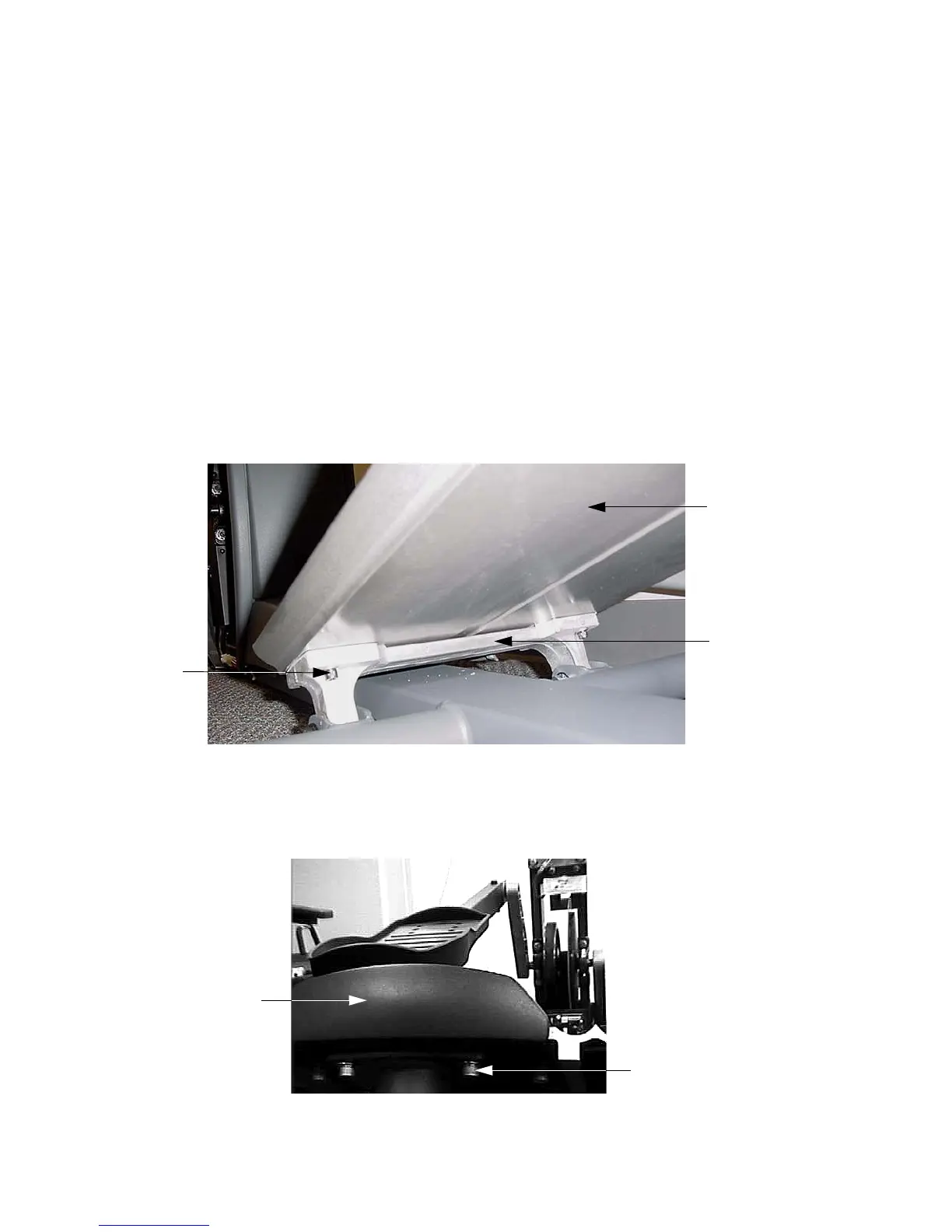

Diagram 7.9 - Rear Ramp Mounting
5. Remove the two mounting bolts from the front bottom of the ramp assembly. These bolts
fasten the ramp to its front support.
Diagram 7.10 - Front Ramp Mounting
Ramp
Mounting
Bolt
Mounting
Bracket
Mounting Bolt
Ramp End Cap
