C556, C556i Navy Self Powered Elliptical Fitness
Page 42
Procedure 7.8 - Replacing the Input Pulley Assembly
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
1. Remove the rear cover and disconnect the red battery lead from terminal M6 of the lower
PCA.
2. Remove the stairarm assemblies as described in Procedure 7.12 (C556 Navy) or Procedure
7.13 (C556i Navy).
3. Remove the crankarm assemblies as described in Procedure 7.5, steps 2 to 5.
4. Remove the input pulley assembly mounting nuts (2 per pillow block bearing).
5. Remove tension from the input pulley belt as described in step 6:
6. Straighten the locking tabs and turn the left and right tension bolts counterclockwise until
tension is removed from the both belts. (See Diagram 5.3)

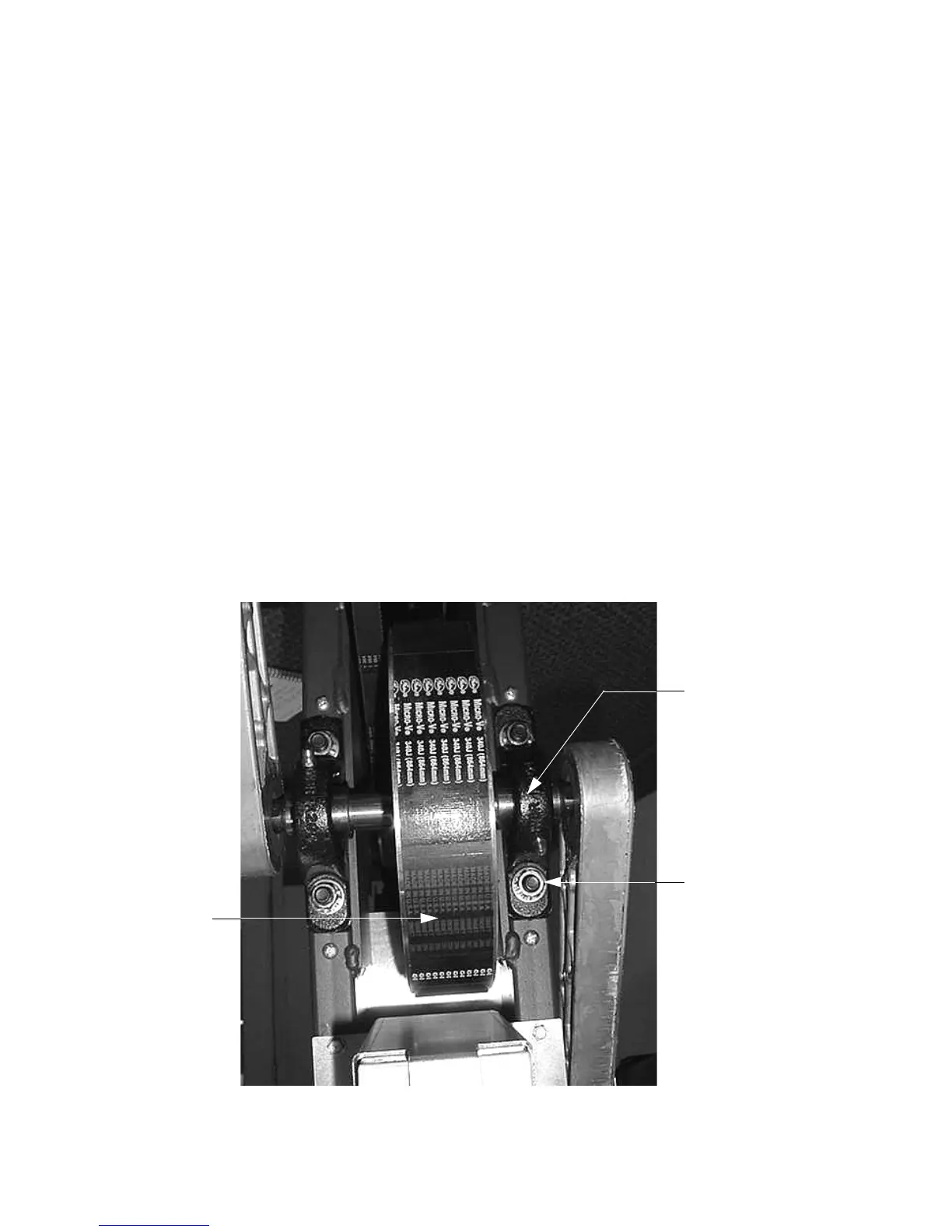

Diagram 7.6 - Input Pulley Assembly
Input Pulley
Mounting Nut
Pillow Block
Bearing
Input Pulley
Belt
To Next Page
