C556, C556i Navy Self Powered Elliptical Fitness
Page 56
Procedure 7.15 - Replacing a Lower Pivot Arm (C556 Navy,
only)
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
1. Remove the retaining ring that fastens the lower pivot arm to the stairarm connector. See
Diagram 7.11.
2. Remove the bolt that fastens the lower pivot arm to the handlebar arm.

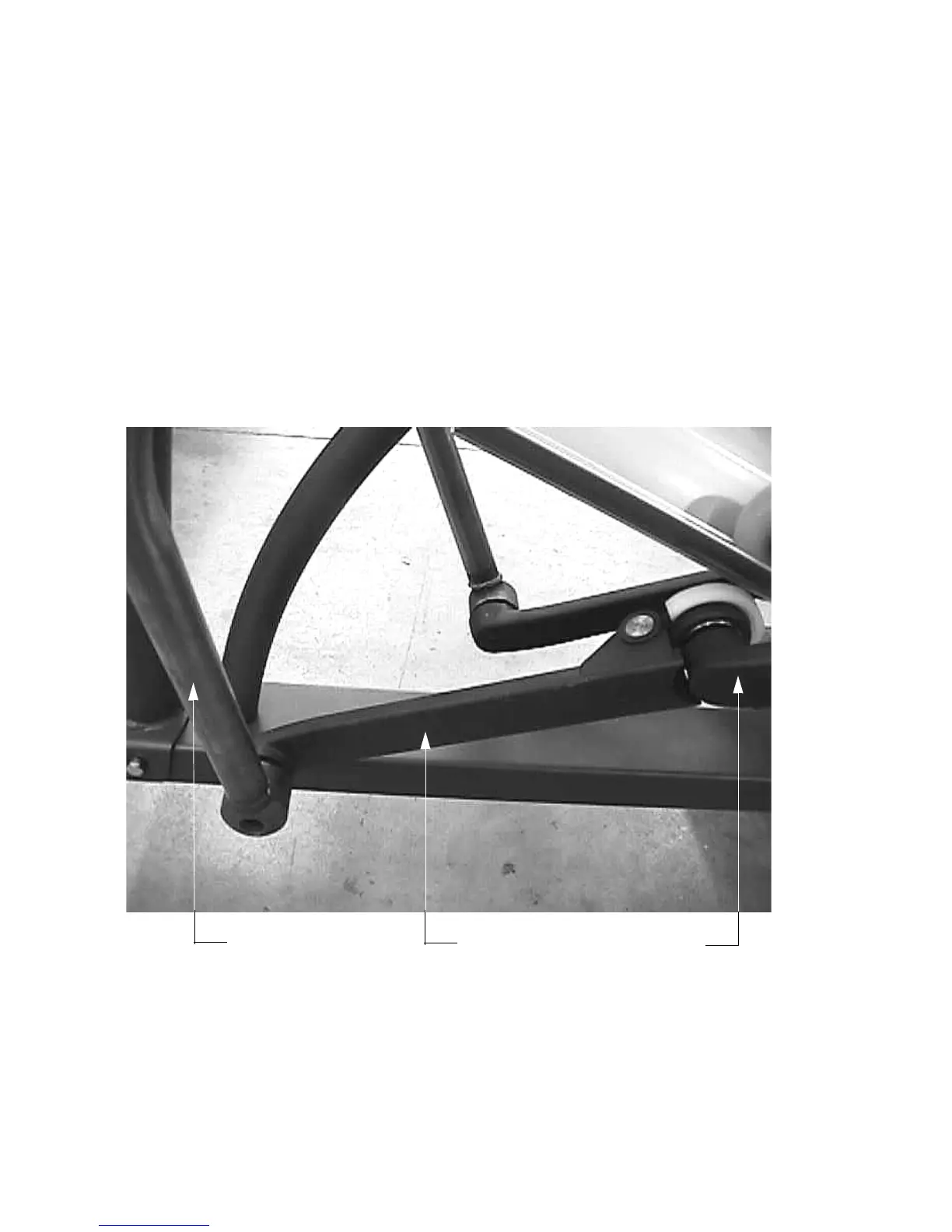

Diagram 7.11 - Pivot Arms
3. Remove the lower pivot arm.
4. Slide the lower pivot arm onto the pivot arm connector. Replace the retaining ring removed
in step 1.
Handlebar
Lower
Pivot Arm
Stairarm
Connector
To Next Page
