page 19
24. Insert the left and right handrails into the upper clamp. Diagram 16. Using
one hand, apply pressure on the portion of the handrail being inserted into the
clamp while, with the other hand, lift and lower the base of the handrail. This
rotating motion helps move the handrail into the clamp. Repeat this step for the
opposite handrail.
25. Check the gap in the upper clamp. Diagram 16, inset. Look underneath the
handrail clamp to see that the gap, which exists between the two ends of the
handrails, is no greater than 1/2-inch.

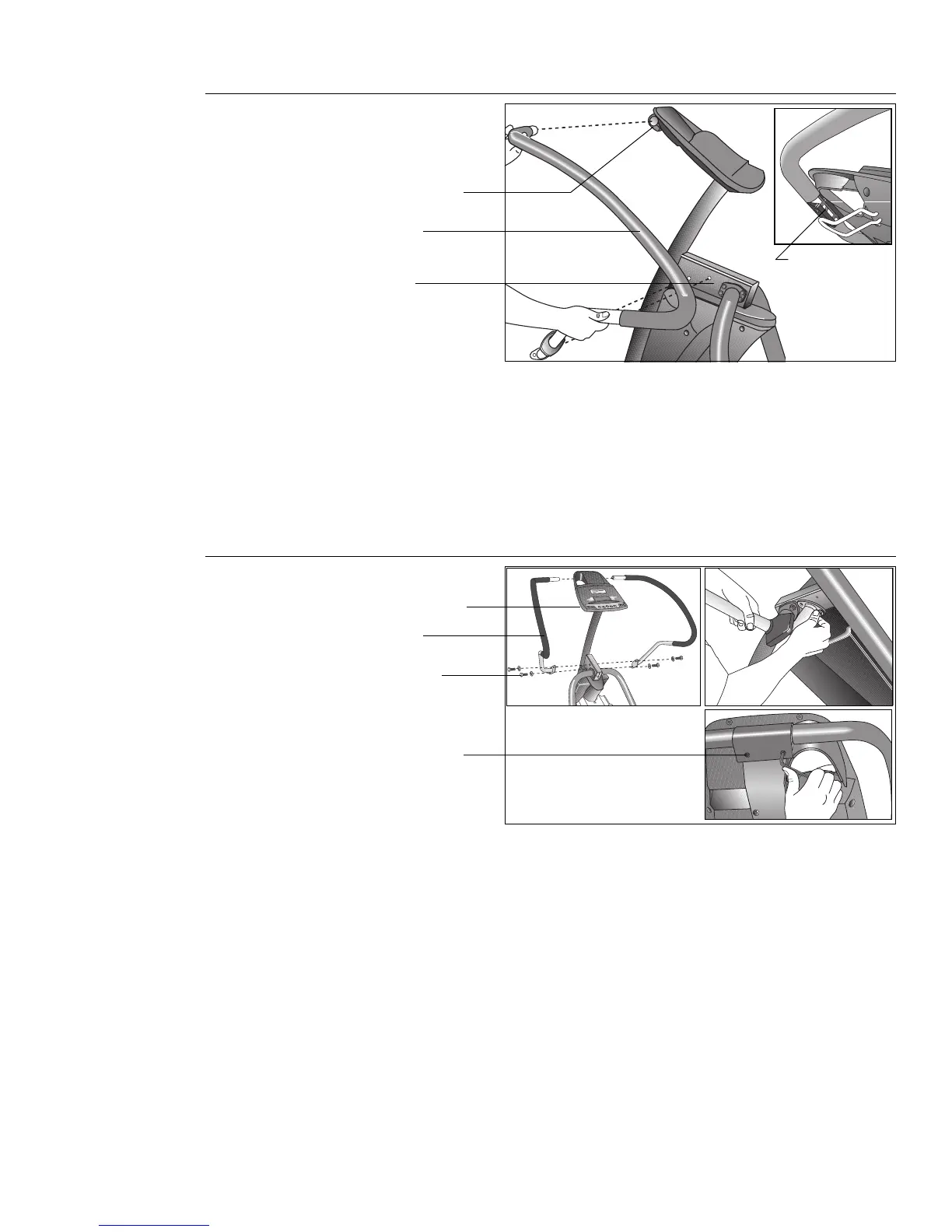

Diagram 16
Insert the handrails
into the handrail
clamp.
26. Secure the handrails. Diagram 17. Align the handrail base mounts with the
handrail bracket. Insert two bolts (F) and washers (G) and finger tighten. Repeat
this step for the opposite handrail.
a. Check the gap between the ends of the handrails in the clamp. Refer to
Diagram 16, inset.
b. With the gap between 1/4-inch and 1/2-inch, tighten the bolts in the
handrail clamp using the hex key provided.
c. Return to the bolts (F) in the base of the handrails and tighten each
securely using a 9/16-inch socket extension and wrench.
Handrail clamp
Handrail
Upright support
bracket
Tighten bolts in
handrail clamp.
Gap between
handrail ends
inside clamp
should be
no greater than
1/2-inch.
Diagram 17
Secure the handrails.
Display console
Handrail
Screws (F) and
washers (G)
To Next Page
