2. Assemble Leg Extension
A. Cut wire ties.
B. Attach the Leg Extension to the Main Base using
two 2½-inch bolts
two spring washers
Wrench tighten using a ⁹⁄₁₆ box-end wrench.

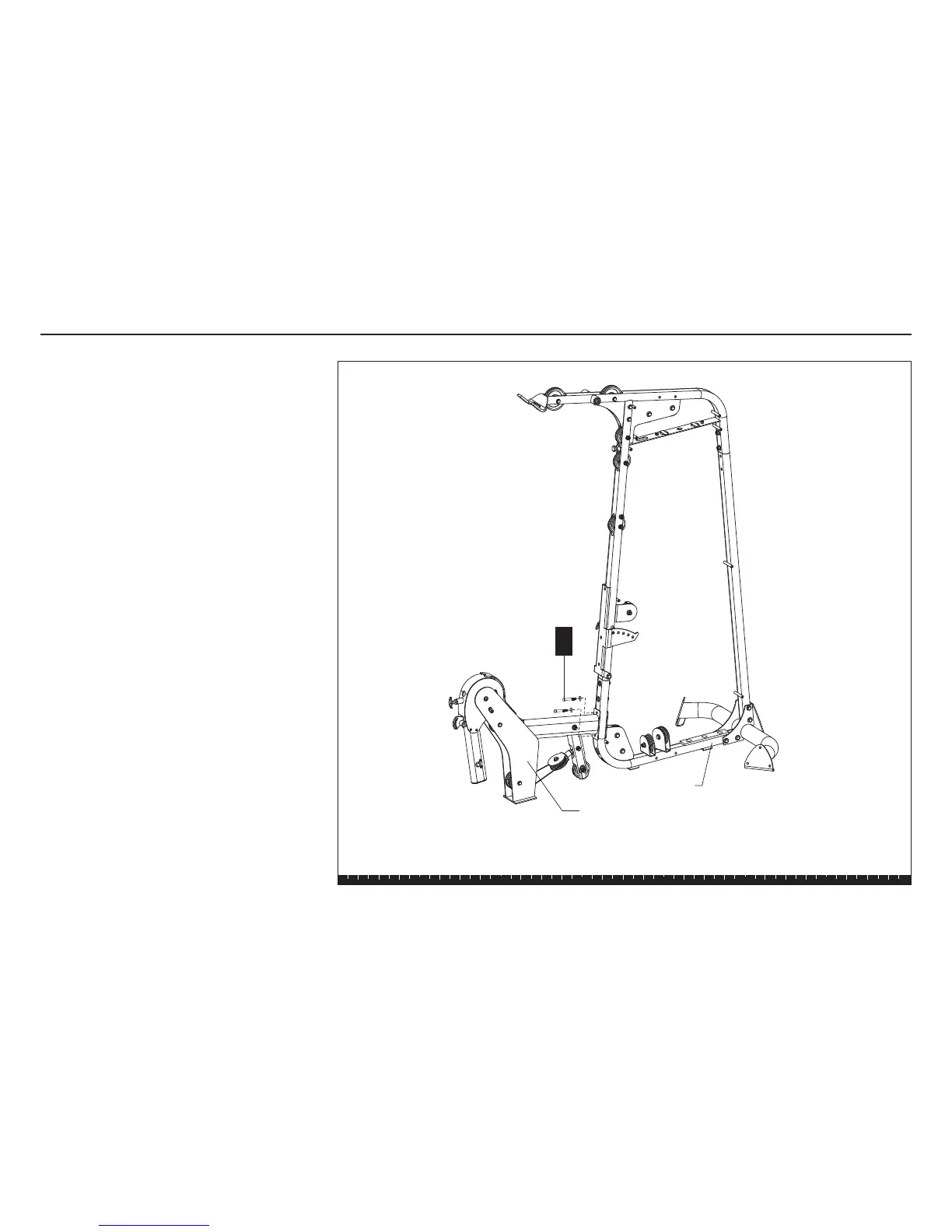

Step 2. Assemble Leg Extension
B
2 - 2½” bolts
2 - spring washers
Leg
Extension
Main Base
