9. Install Leg Press Option
Cable Connection
A. Disassemble the 3½-inch pulley attached to the
base frame bracket and feed the threaded end of
the Leg Press Option Cable 130211 under the
pulley. Reattach the pulley to its bracket using
one 2-inch hex head bolt
two flat washers
one locknut
Wrench tighten.
B. Attach the threaded end of the cable to the Single
Floating Pulley. Continue turning the screw three to
four full turns to secure it inside the floating pulley
housing. Rest the Single Floating Pulley on the
floor.

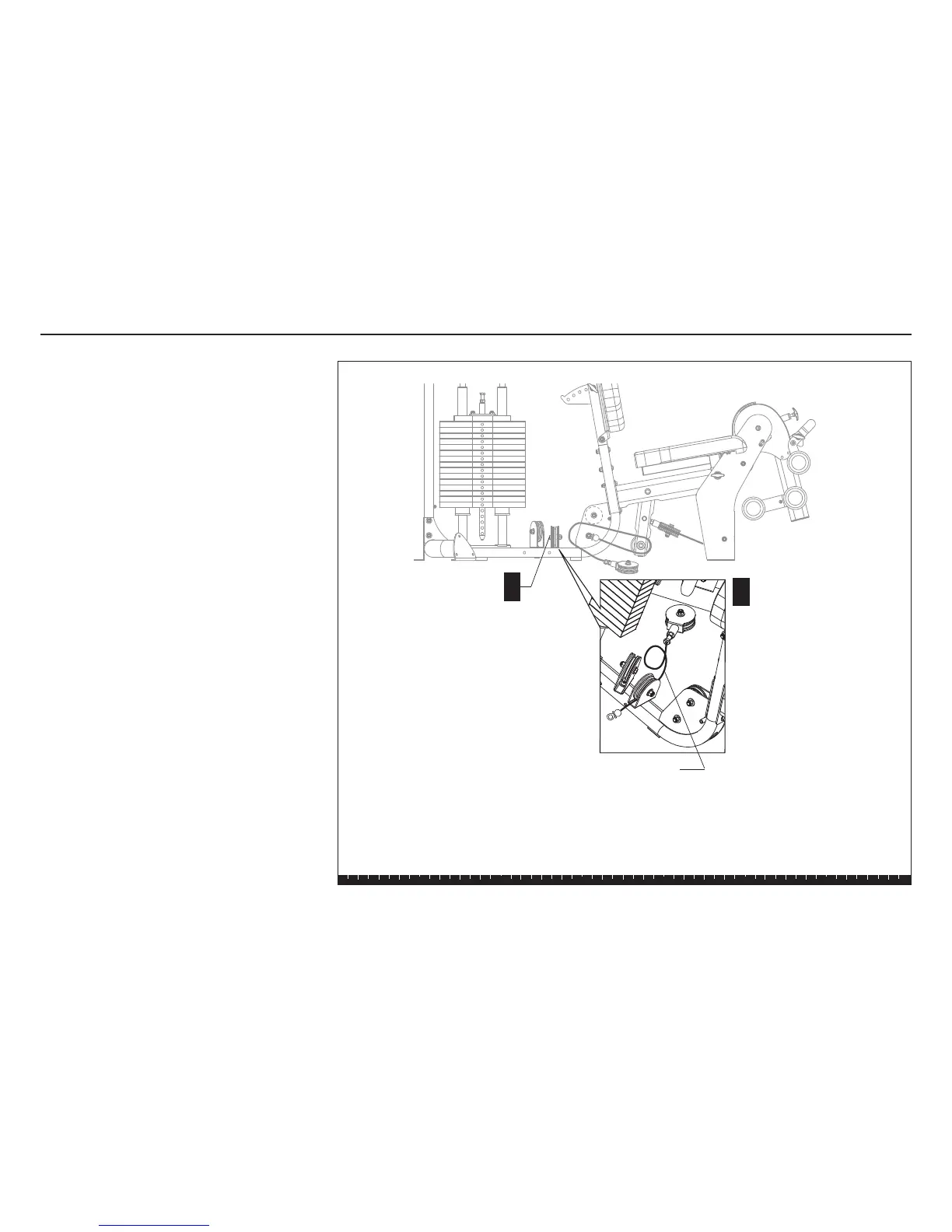

Step 9. Install Leg Press Option Cable Connection
Leg Press Option
Cable 130211
B
A
1 - 2" bolt
2 - washers
1 - locknut

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
