Weight Label Strip
Weight
Label
Guide Rod Spacers*
*Heavy Stack Option not shown.
14. Apply Weight Decals and
Lubricant
A. Peel the Weight Label off the Weight Label Strip.
B. Peel the backing off the Weight Label to expose the
adhesive and place a label on each Weight Plate,
starting with the Top Cap Weight. The
recommended location of the label is toward the
rear of the unit (refer to the illustration).
C. Apply one tube of lubricant to each Guide Rod.
CAUTION: The lubricant can stain clothes. Wear
proper attire when lubricating the Guide Rods.
This completes the assembly of your S3.19 Strength-
Training Fitness Equipment. Before exercising on the
S3.19, adjust the cable tension. Refer to Cable
Adjustments and Maintenance.
Note: If you have purchased optional equipment, refer
to the Assembly Instructions accompanying the option.
Lubricant Guide Rod
C

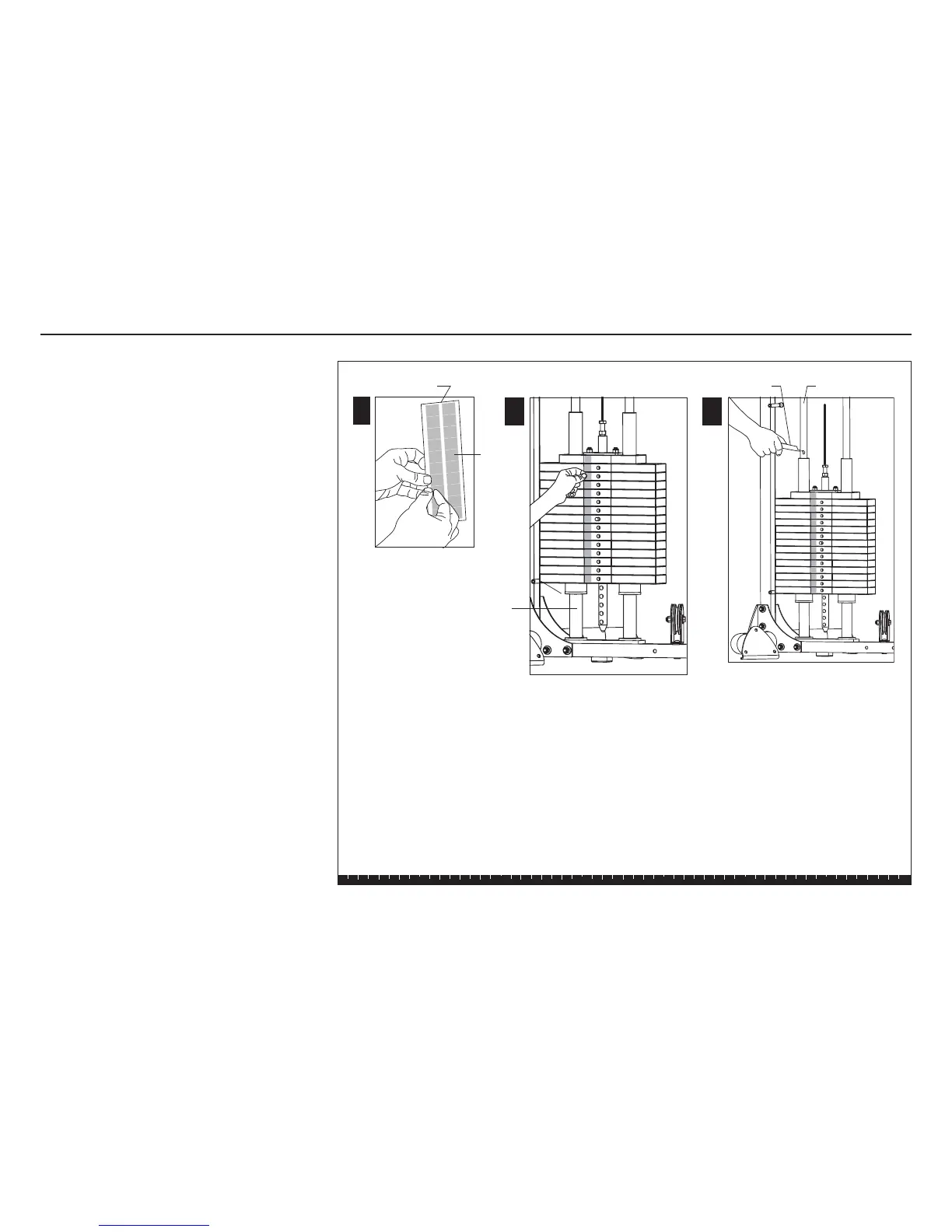

Step 14. Apply Weight Decals and Lubricant

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
