Precor move beyond S3.19 User Manual

S3.19 Assembly and Maintenance Guide
page 18
1 2 3 4 5 6

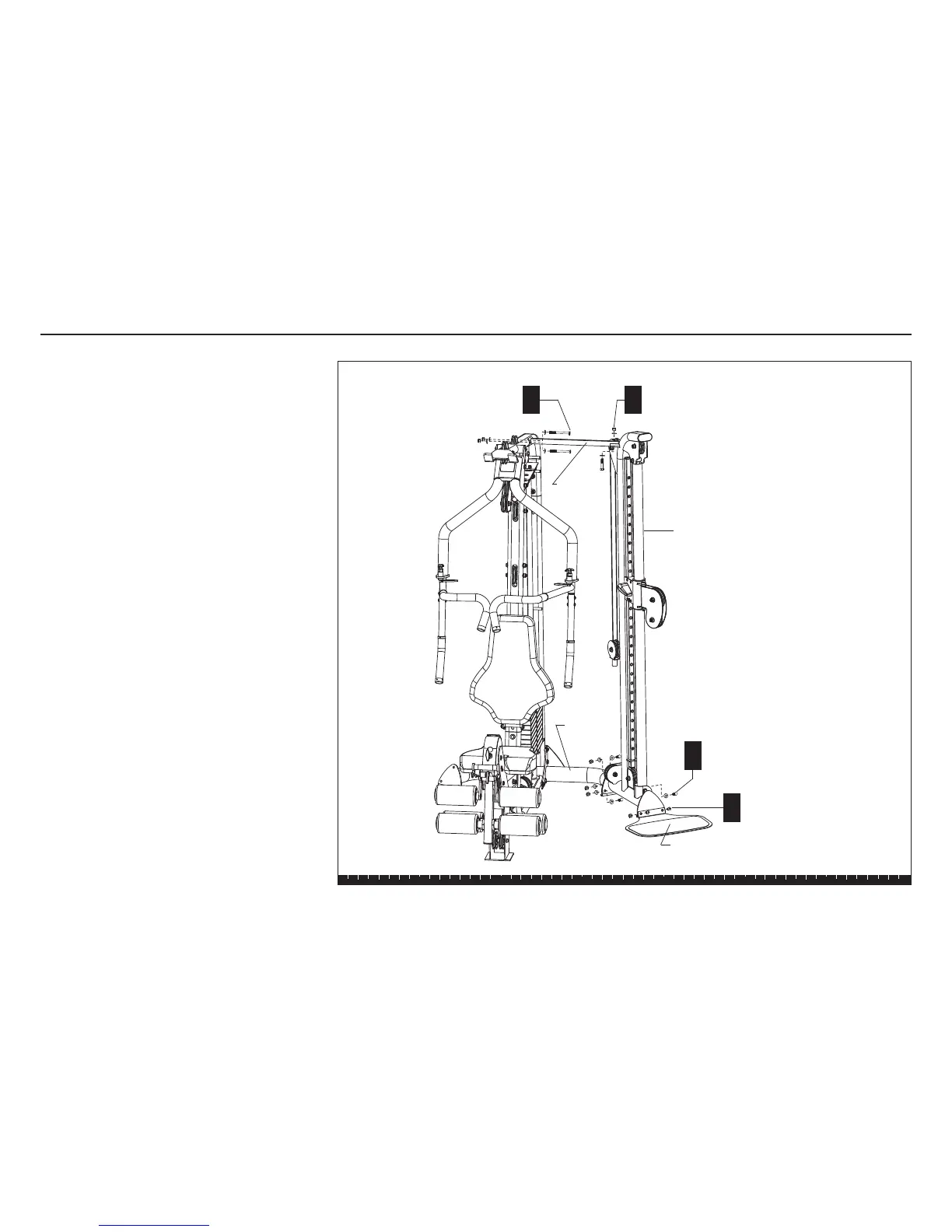

6. Install Hi/Lo Pulley Assembly
Note: Ask for assistance to move the Hi/Lo Pulley
Assembly and align the mounting holes.
A. Attach the Hi/Lo Pulley Assembly to the Rear
Crossbar using
three 1¼-inch hex head bolts
three flat washers
three spring washers
three locknuts
Wrench tighten.
B. Attach the Floor Plate using
two ¾-inch buttonhead bolts
two locknuts
Wrench tighten using a 6mm hex key.
C. Attach the Crossbrace to the Top Beam using
two 4-inch hex head bolts
four radius washers
two locknuts
D. Attach the Crossbrace to the Hi/Lo Pulley using
one 2-inch hex head bolt
one washer
one locknut
Wrench tighten all three fasteners that secure the
Crossbrace.
A
B
C
D
2 - 4" bolts
4 - radius washers
2 - locknuts
3 - 1¼" bolts
3 - washers
3 - spring washers
3 - locknuts
2 - ¾" buttonhead bolts
2 - locknuts
Floor Plate
1 - 2" bolt
1 - washer
1 - locknut
Rear
Crossbar
Hi/Lo Pulley Assembly
Crossbrace

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
