Precor move beyond S3.19 User Manual

S3.19 Assembly and Maintenance Guide
page 16
1 2 3 4 5 6
5. Assemble Press Arm
Important: Obtain adult assistance to attach the Press
Arm Assembly.
A. Attach the Press Arm Assembly, with the label
facing out, to the Top Beam using
one ¾-inch x 5¼-inch threaded shaft
two 1-inch zinc buttonhead bolts
two zinc flat washers
Wrench tighten.
Note: Make sure the Press Arm rotates freely. If
resistance exists, loosen the fasteners a ¹⁄₄ turn.

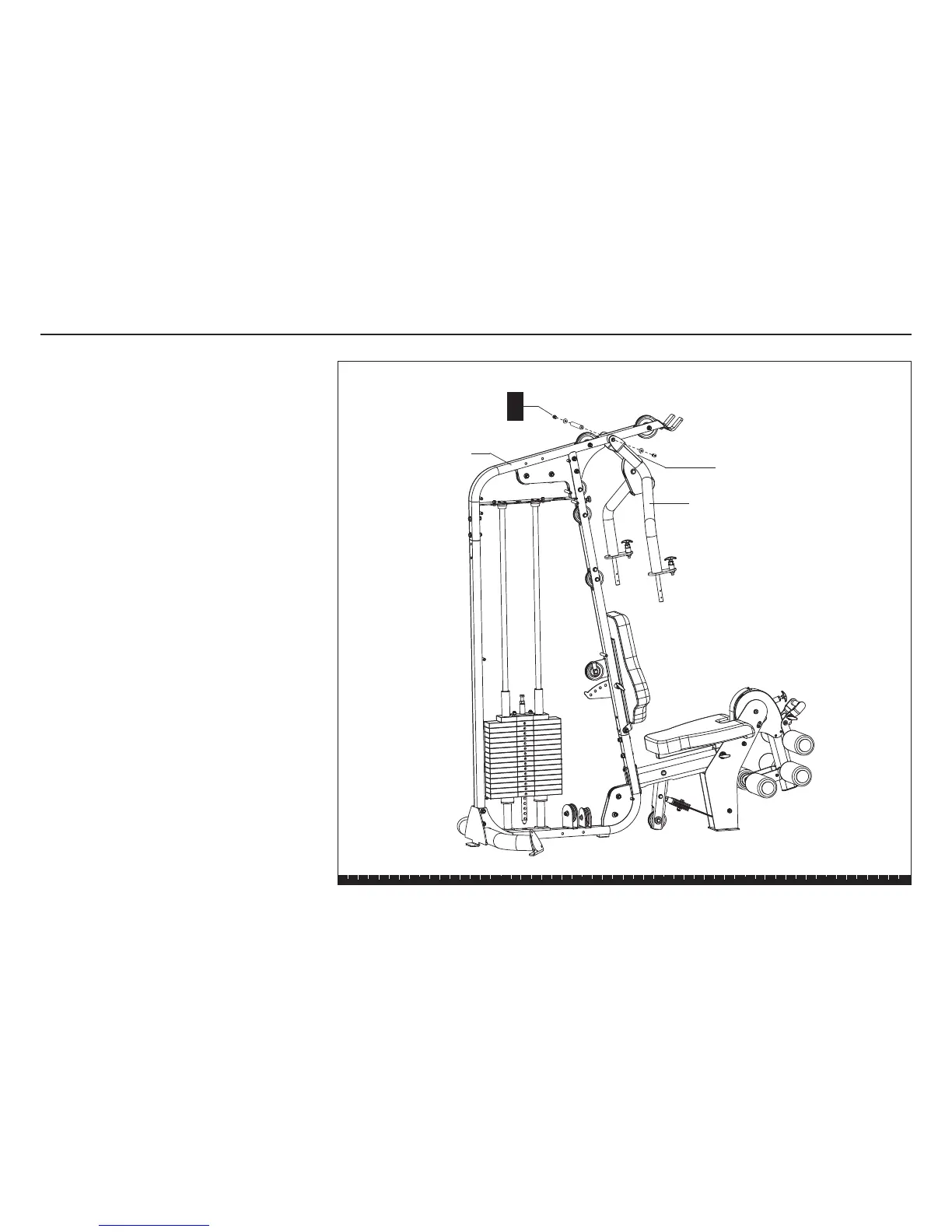

Step 5. Assemble Press Arm
A
1 - ¾" threaded shaft
2 - 1" zinc buttonhead bolts
2 - zinc washers
Top Beam
Press Arm
Assembly
Label on Press Arm Assembly

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
