Precor move beyond S3.19 User Manual

S3.19 Assembly and Maintenance Guide
page 15
1 2 3 4 5 6

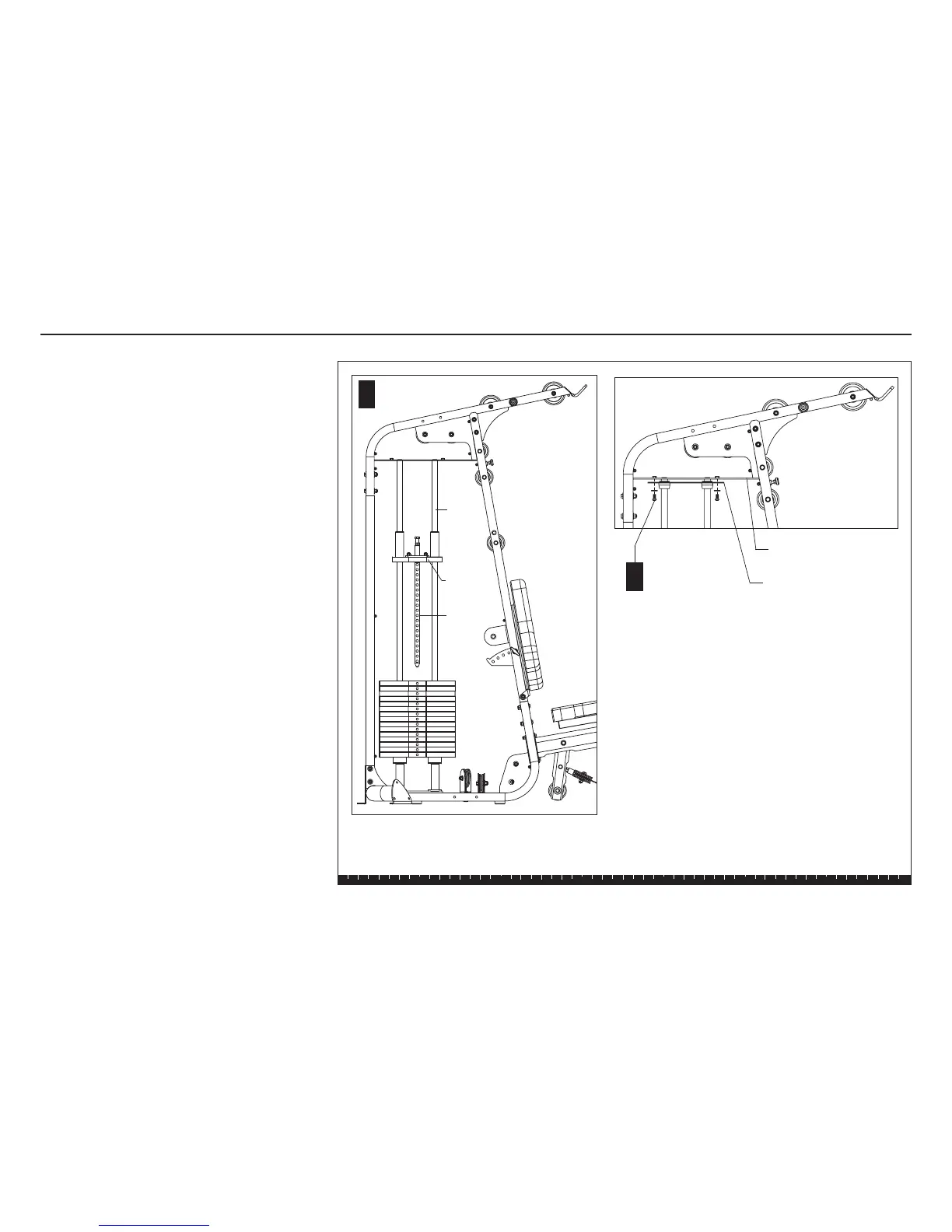

D. Orient the hole in the Top Cap Weight with the
curve in the weight plates. Place the Top Cap
Weight onto the Guide Rods and slide the Selector
Stem into the weight stack.
E. Slide the Guide Rod Bracket onto the Guide Rods
and secure it to the Upper Frame Crosspiece using
two ¾-inch buttonhead bolts
two flat washers
Wrench tighten.
D
Step 4. Assemble Weight Stack, continued
Top Cap
Weight
Guide
Rod
Selector
Stem
Upper Frame
Crosspiece
Guide Rod Bracket
E
2 - ¾" buttonhead
bolts
2 - washers

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
