S3.19 Assembly and Maintenance Guide
page 23
1 2 3 4 5 6
10. Install Mid Pulley Cable and
Hi/Lo Pulley Connection
A. Disassemble the center pulley on the Main Upright
and feed the threaded end of Mid Pulley Cable
130209 through the opening and over the 3½-inch
pulley. Attach the pulley to the Main Upright using
one 4-inch hex head bolt
two shoulder spacers
one locknut
Wrench tighten.
B. Disassemble the Single Floating Pulley attached to
the Leg Extension Cable 130210. Feed the Mid
Pulley Cable around the pulley and reattach the
pulley to its housing using
one 2-inch zinc hex head bolt
two zinc washers
one thin zinc locknut
Wrench tighten.
B

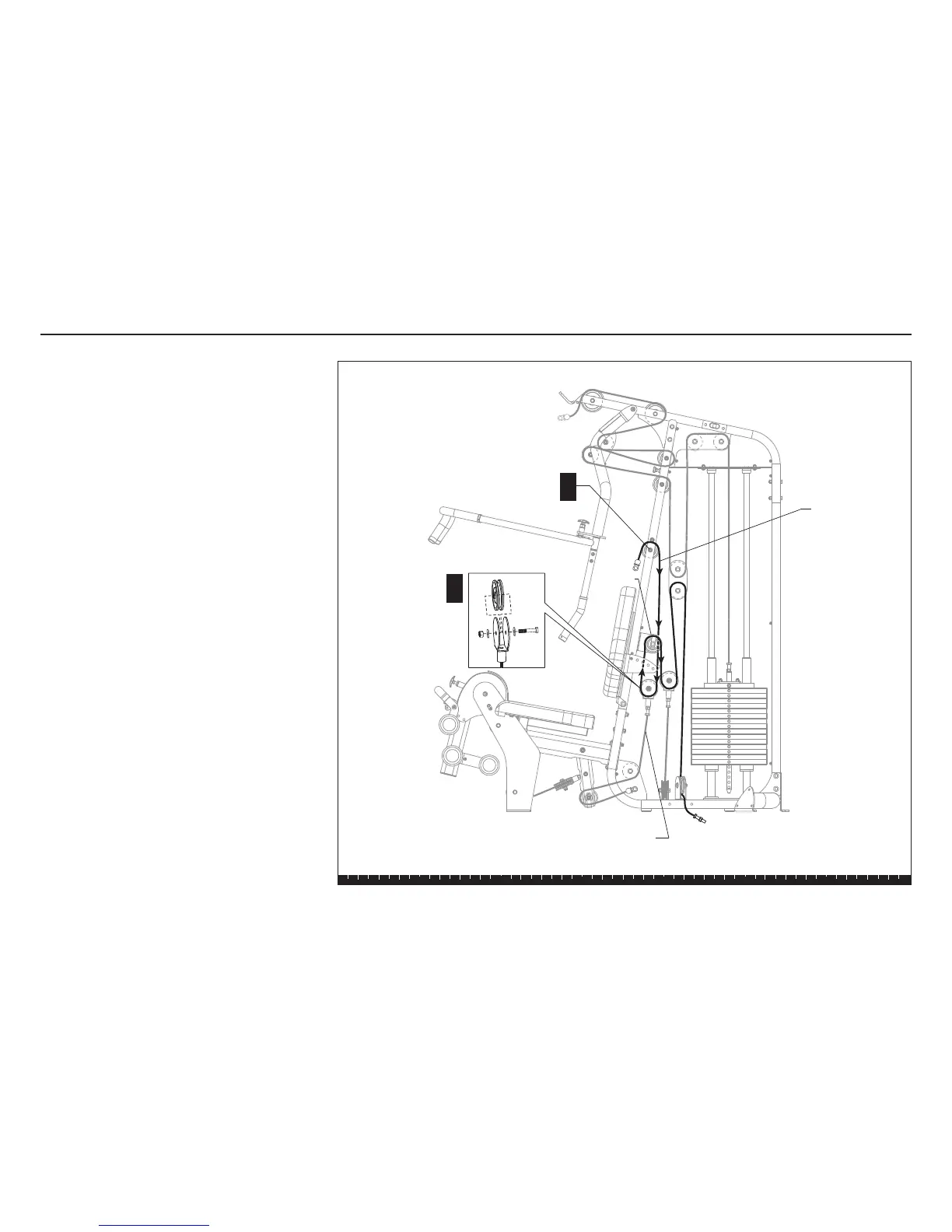

Step 10. Install Mid Pulley Cable and Hi/Lo Pulley Connection
A
1 - 4" bolt
2 - shoulder spacers
1 - locknut
Single Floating
Pulley
1 - 2" zinc bolt
2 - zinc washers
1 - zinc locknut
Leg Extension Cable 130210
Mid
Pulley
Bracket
Mid Pulley Cable
130209

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
