C. For proper cable operation, the 3½-inch pulley,
located on the Mid-pulley Bracket, must be on the
same side as the Hi/Lo Pulley Assembly. If the
pulley is not on the correct side, reassemble it.
D. Feed the threaded end of the cable over the top of
the Mid-pulley Bracket’s 3½-inch pulley. Rest the
cable on the floor.
Important: Stand between the S3.19 and the Hi/Lo
Pulley Assembly and review the cable alignment.
The Mid Pulley Cable must fall behind the Mid-
pulley Bracket before wrapping around the Leg

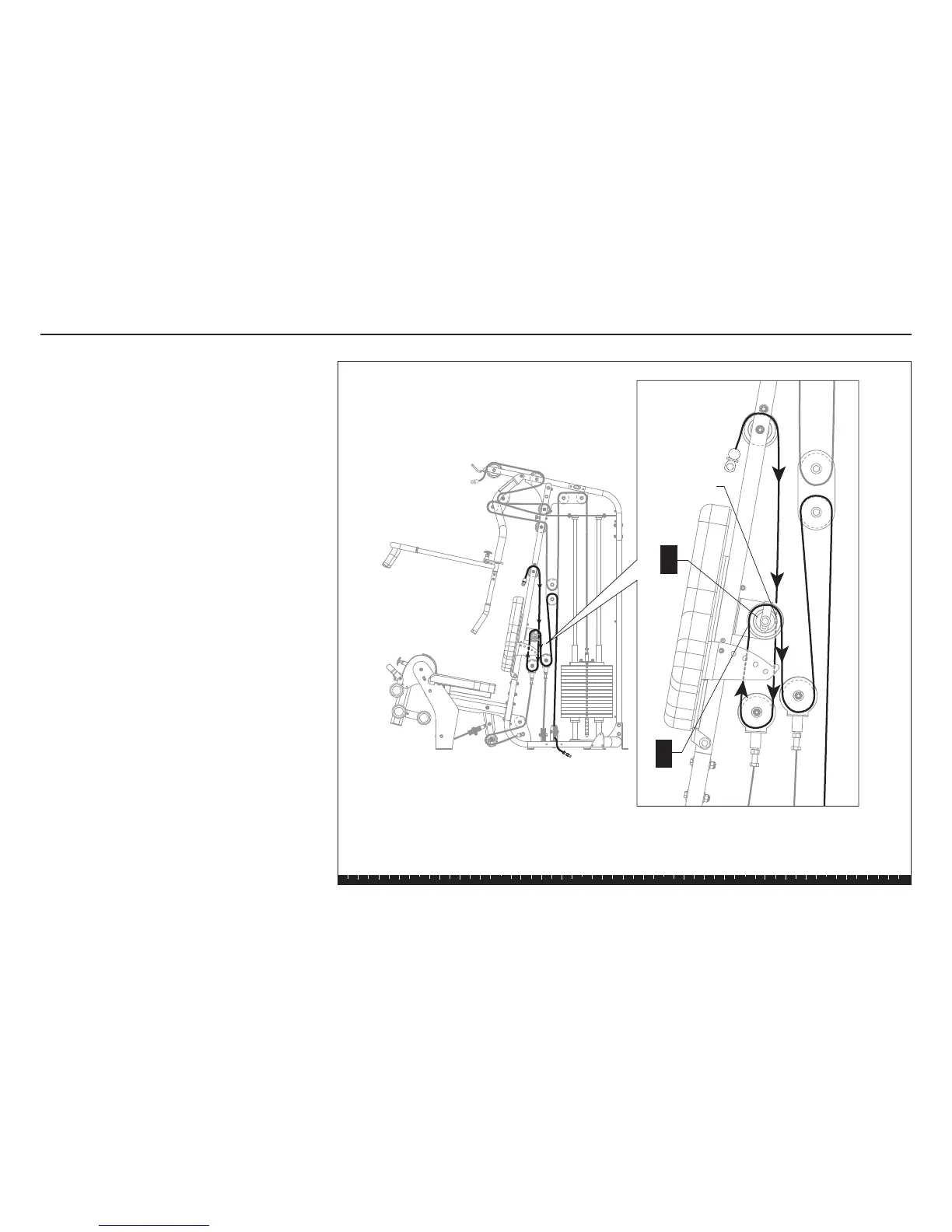

Extension Floating Pulley. Refer to the illustration.
Step 10. Install Mid Pulley Cable and Hi/Lo Pulley Connection, continued
Mid-
Pulley
Bracket
D
C
Note the location of the Hi/Lo Pulley Assembly. The
3½-inch pulley, located on the Mid-pulley Bracket,
must be on the same side as the Hi/Lo Pulley
Assembly. Reassemble the pulley, if necessary.

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
