S3.19 Assembly and Maintenance Guide
page 9
1 2 3 4 5 6

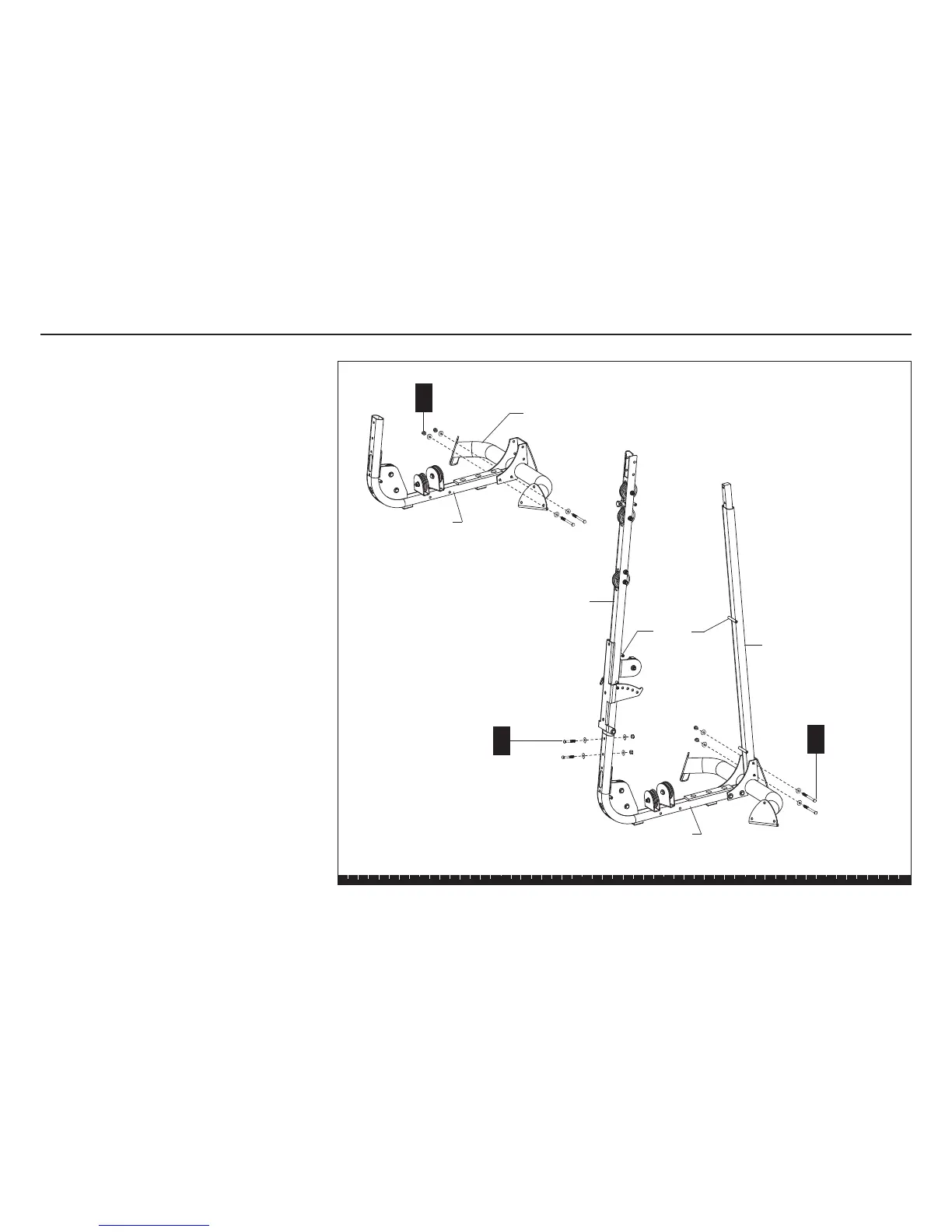

Step 1. Assemble Main Structure
1. Assemble Main Structure
A. Attach the Main Base to the Rear Crossbar using
two 4¾-inch hex head bolts
four flat washers
two locknuts
B. Install the Rear Upright to the Main Base using
two 4¾-inch hex head bolts
four flat washers
two locknuts
Note: Position the uprights so the Shroud mounts
face the center of the unit.
C. Attach the Main Upright to the Main Base
using
two 2¼-inch hex head bolts
four flat washers
two locknuts
2 - 4¾" bolts
4 - washers
2 - locknuts
B
A
2 - 4¾" bolts
4 - washers
2 - locknuts
2 - 2¼" bolts
4 - washers
2 - locknuts
C
Rear Crossbar
Main Base
Rear Upright
Main Upright
Main Base
Shroud
Mounts

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
