S3.19 Assembly and Maintenance Guide
page 13
1 2 3 4 5 6
G. Attach the Seat Pad to the Seat Stem using
four 1-inch zinc buttonhead bolts
two zinc flat washers
Wrench tighten using a 6mm hex key.
H. Insert the Seat Stem into the Seat Upright
Assembly. Pull out the seat adjustment T-handle to
insert the stem. Place the Seat Stem at its lowest
position.
J. To allow clearance for the Back Pad fasteners, pull
the T-handle and adjust the Incline Bracket away
from the Main Upright.
K. Attach the Back Pad to the Incline Bracket using
three 1-inch zinc hex head bolts
three zinc flat washers
Wrench tighten.
L. Return the Back Pad to a vertical position.

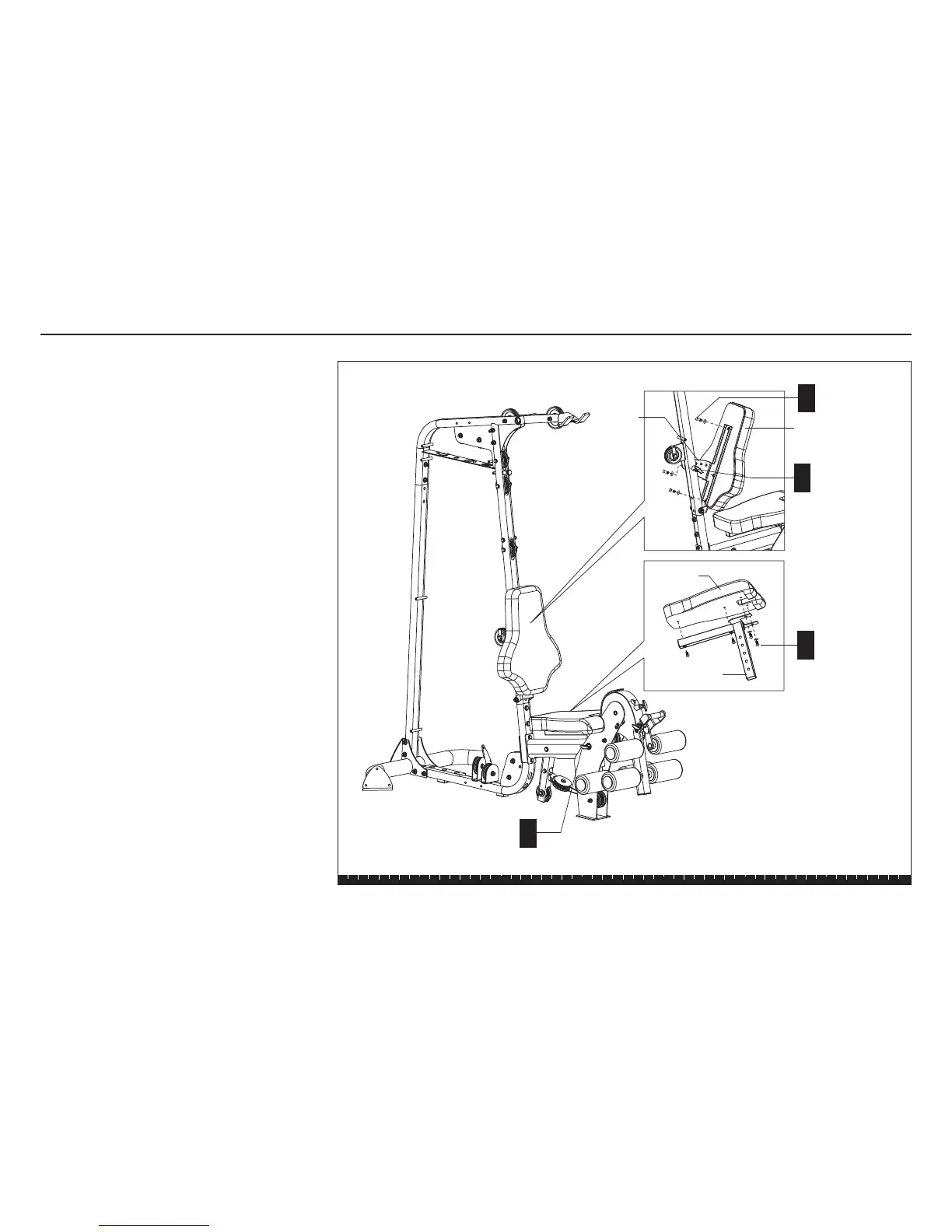

Step 3. Install Rollers and Seat Pads, continued
G
4 - 1" zinc
buttonhead bolts
2 - zinc washers
H
J
3 - 1" zinc bolts
3 - zinc washers
Pull out the seat
adjustment T-handle
to insert stem.
Back
Pad
Seat Stem
Seat Pad
Incline
Bracket
K

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
