J. Feed the threaded end of the cable beneath the
3½-inch pulley at the base of the Hi/Lo Pulley and
reattach it using
one 2-inch hex head bolt
two flat washers
one locknut
Wrench tighten.
K. Cut the wire ties securing the Single Floating Pulley
to the Hi/Lo Pulley Assembly. Remove any cable
twists or kinks.
L. Attach the threaded end of the Mid Pulley Cable to
the Single Floating Pulley. Continue turning the
screw three to four full turns to secure it inside the
floating pulley housing.
M. Check all pulley fasteners and wrench tighten, if
necessary.

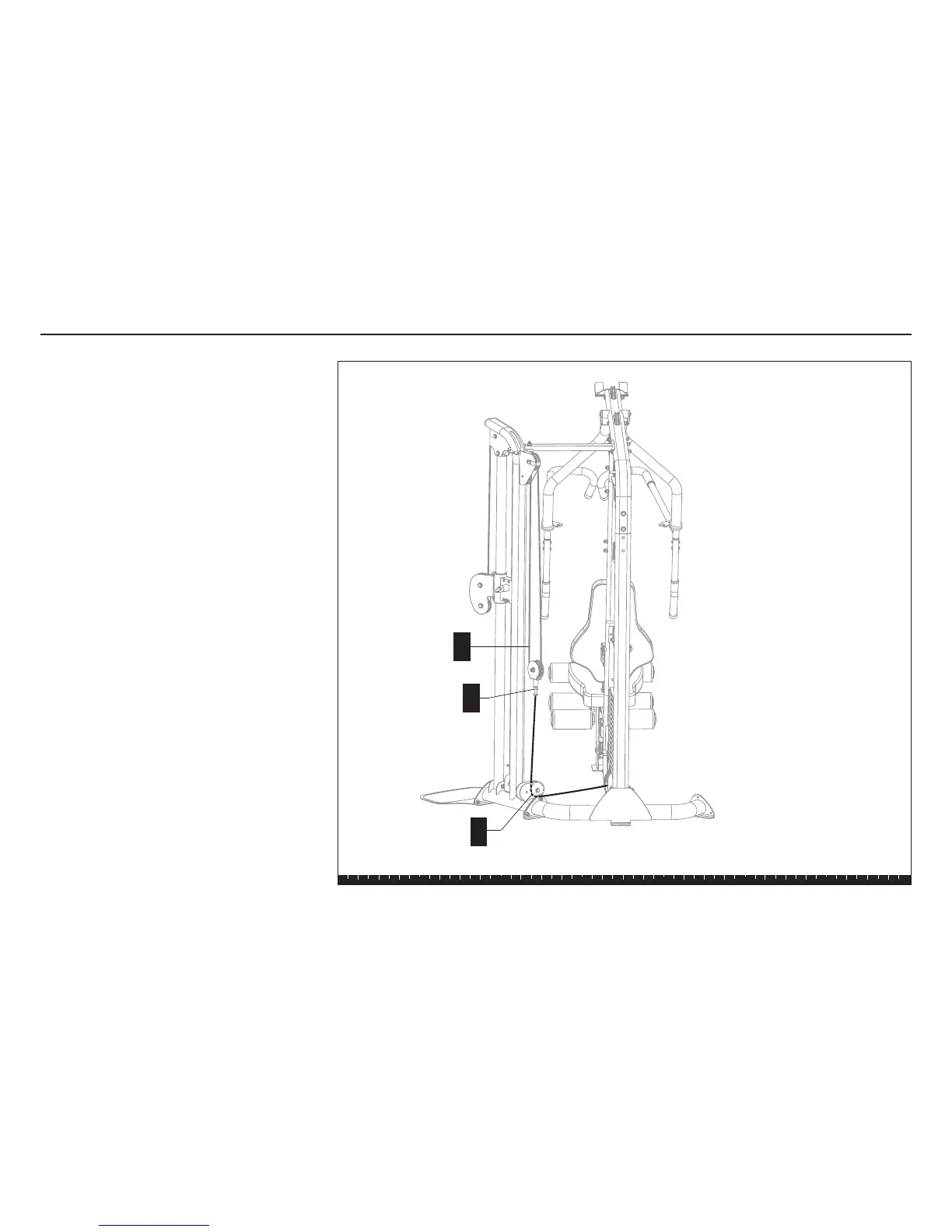

Step 10. Install Mid Pulley Cable and Hi/Lo Pulley Connection, continued
1 - 2" bolt
2 - washers
1 - locknut
J
K
L

Precor move beyond S3.19 Specifications

Weight and Dimensions

length	77 inches (196 cm)
height	83 inches (211 cm)
width	58 inches (147 cm)
width with leg press option	97 inches (147 cm)
shipping weight	418 lb (168.5 kg)
