The following components can be replaced in the field.
Upper Component Access:
There is a small cover that fits on the top portion of the rear of the console. This cover conceals 4
replaceable components, the RFID board, the WiFi Module, the iPod Cable, and the External USB Port.

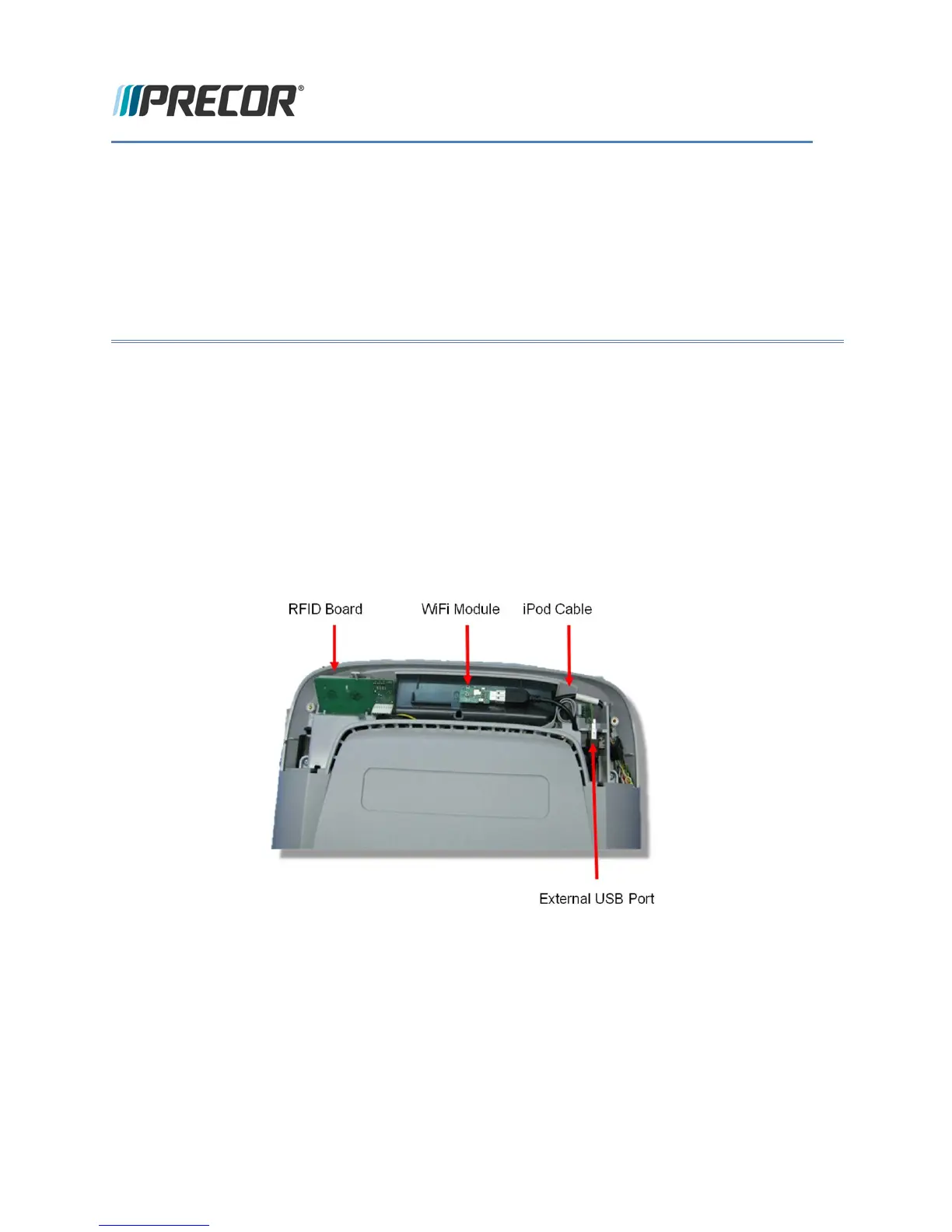

Figure 63: P80 Top Access Panel & Components
The RFID Board is held in place by plastic clips, and connected using a single cable.
The WiFi Module (not currently supported by the software) is held in with double stick mounting tape,
and is connected via a USB cable.
The iPod Cable is the cable that the users will handle when plugging in their iPhone or iPod, and therefore
will need occasional replacement. It plugs into another cable that leads from behind the armor.
The External USB port is mounted on a board that clips into the front port opening. It connects via a USB
cable.
Section 11 - Replacement
Procedures
