© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 109
Replacing the P80 Console
Console Mounting - Removal
1 Remove the rear vent cover. Do not use a sharp tool, such as a flat bladed screwdriver, to pry up the
cover, as you can damage the covers and possibly components inside the console. When the cover
starts to come loose, gently unsnap it from the P80 and set it aside where it will not be scratched.

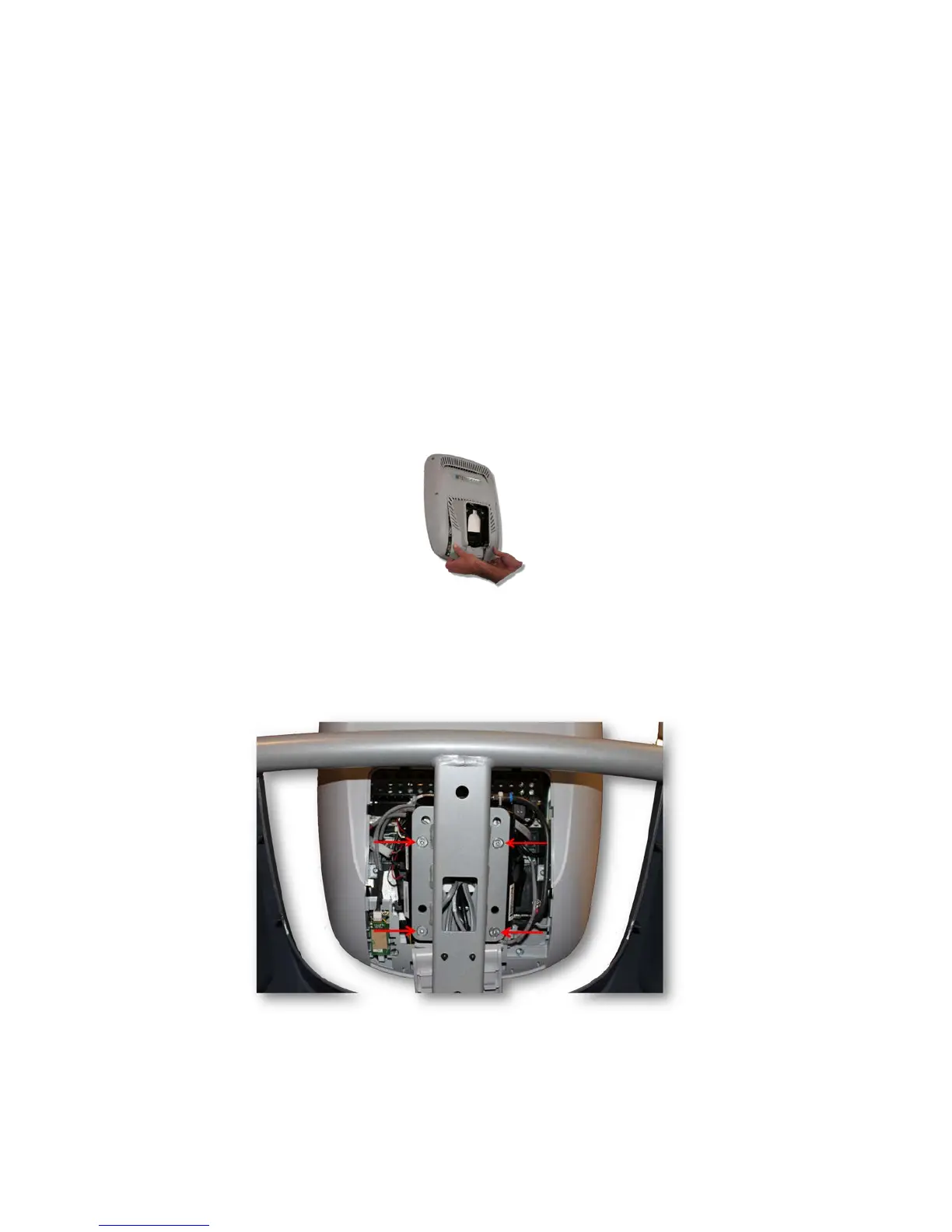

Figure 65: P80 Rear Cover Removal
2 Remove the four flat head 5/8 inch long screws that secure the console to the plate.
Figure 66: Console Mounting Screws
Tilt the console forward (away from yourself) on the mounting hook.
