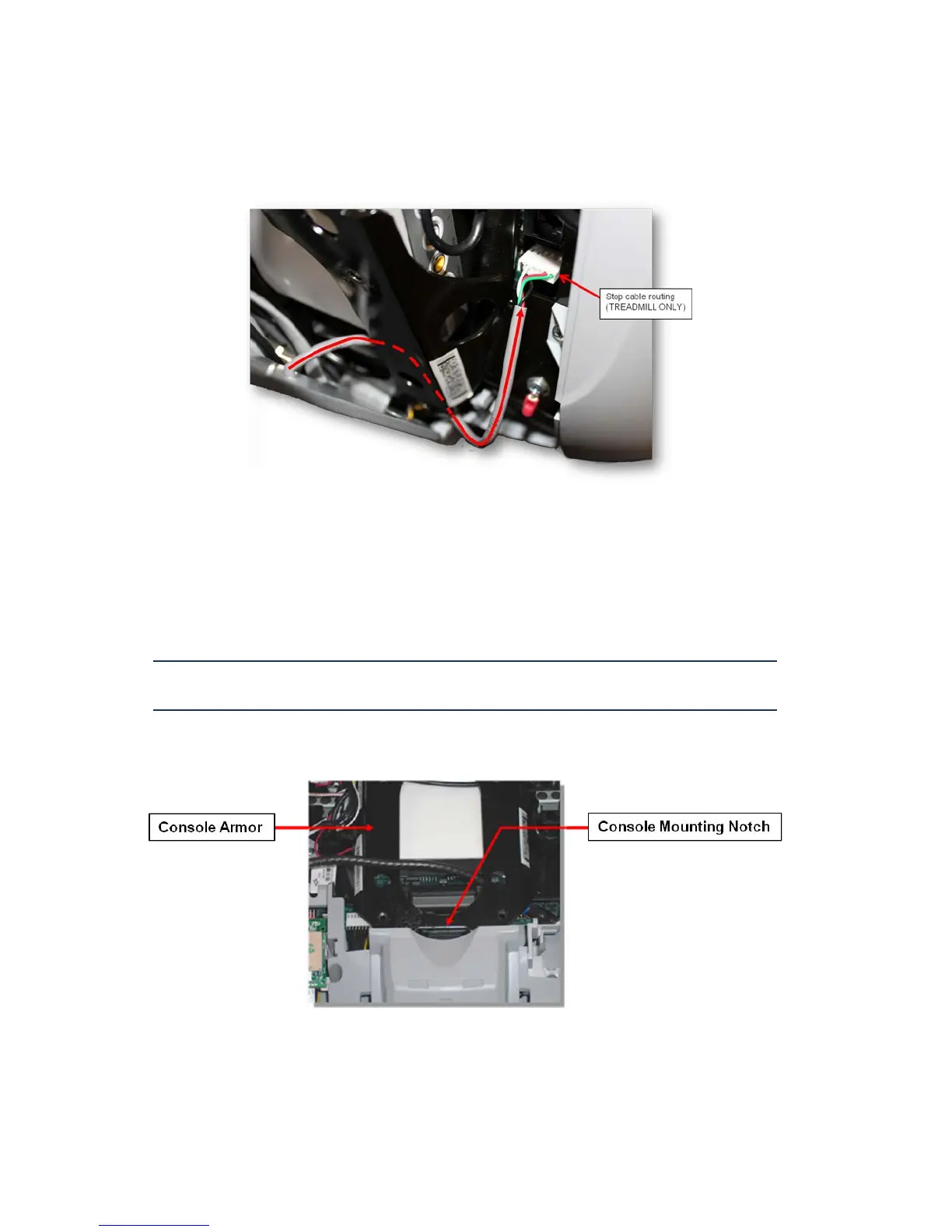

Figure 71: Stop Cable Routing (Treadmill Only)
3 Remove the console by lifting it off the mounting hook.
Console Installation
1 In the back of the P80 console there is a large black steel support called the Armor. At the bottom of
Armor there is a notch about ¼ inches in depth and about 1½ inches across. Set the console notch
over the over the mounting hook.
Note: Before releasing the console insure the notch is securely seated over the
mounting hook.
Figure 72: Console on Mounting Hook
