© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 116

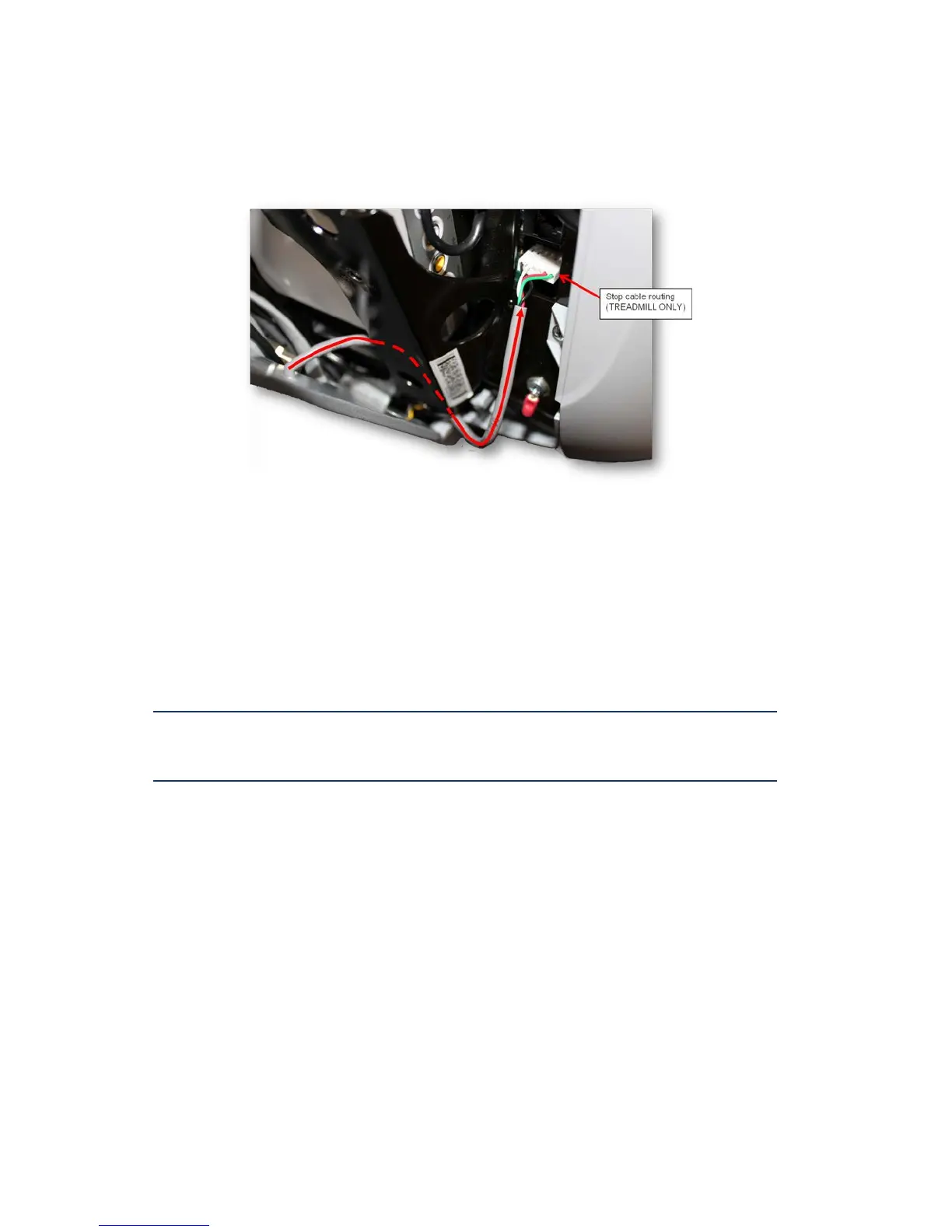

Figure 77: Stop Cable Routing (Treadmill Only)
Securing the P80 Console
1 Make sure that all cables are fully and securely connected, and that cables are tied back properly.
Make sure any extra cabling is pulled down through the neck and along the front of the dash, making
sure the cables are routed through the plastic guides inside the neck.
2 Tilt the control console backward (toward yourself) until the tab on the top edge of the armor slides
along the top edge of the console mount and the screw holes align properly.
3 Secure the console to the plate using the four flat head 5/8 inch long screws.
Note: You must use 5/8 inch long screws. If the screws are too short the console will
not be properly grounded. If the screws are too long it is possible to damage the
internal wiring
4 Tighten the screws fully using a ⁵/₃₂-inch hex wrench.
5 Replace the rear vent cover.
Replacing the P80 Heart Rate PCA Board
Procedure
1 Remove the rear vent cover. Do not use a sharp tool, such as a flat bladed screwdriver, to pry up the
cover, as you can damage the covers and possibly components inside the console. When the cover
starts to come loose, gently unsnap it from the P80 and set it aside where it will not be scratched.
