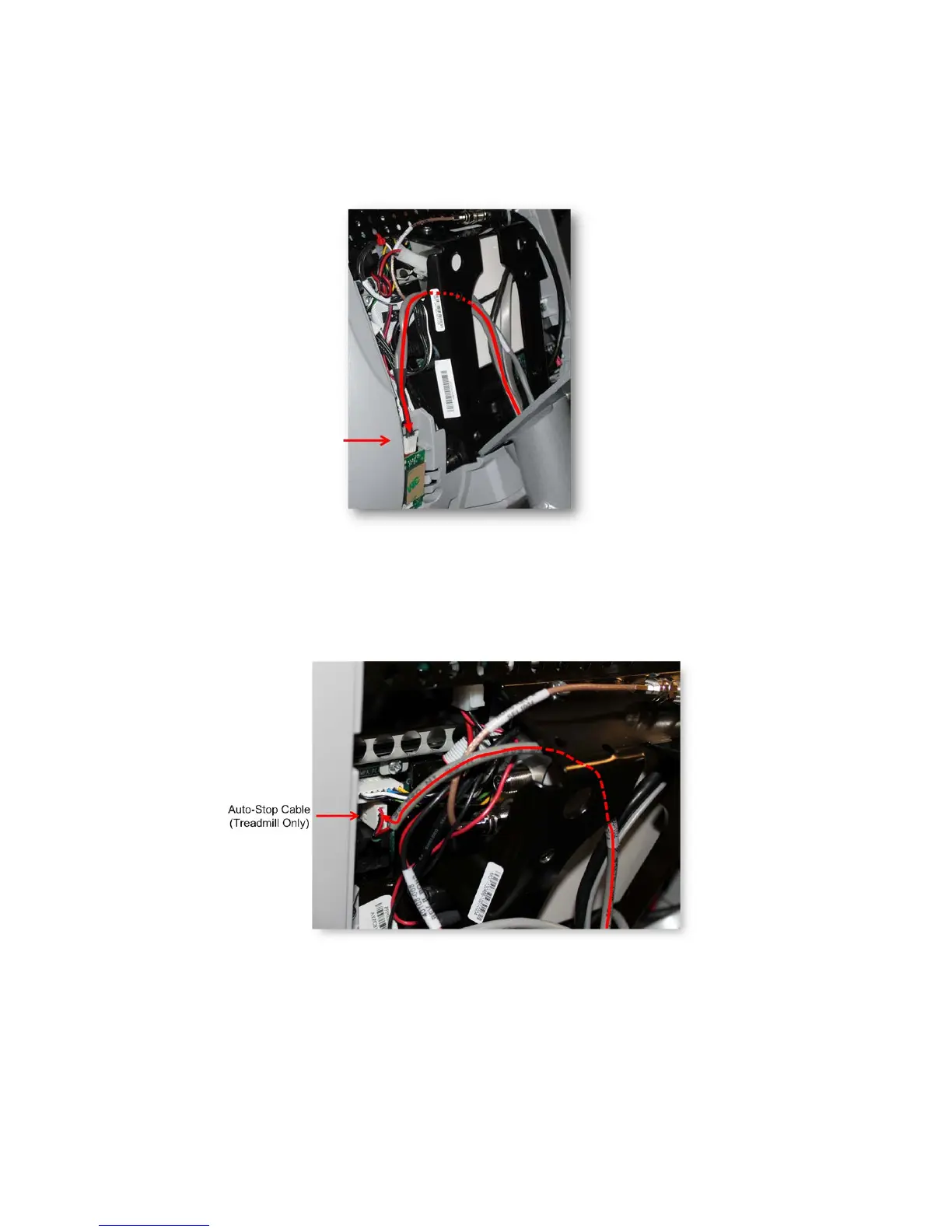

Figure 75: P80 Heart Rate Cable Routing
8 If applicable,route the Auto Stop cable through the upper left corner of the weldment and connect it to
the Auto Stop connector.
Figure 76: Auto Stop Cable Routing
9 If applicable, route the Stop Switch cable (Treadmill only) through the bottom right corner of the
weldment and connect it to the Stop Switch connector.
