Page
17
7-
He
art
Rate Cab
le Routing

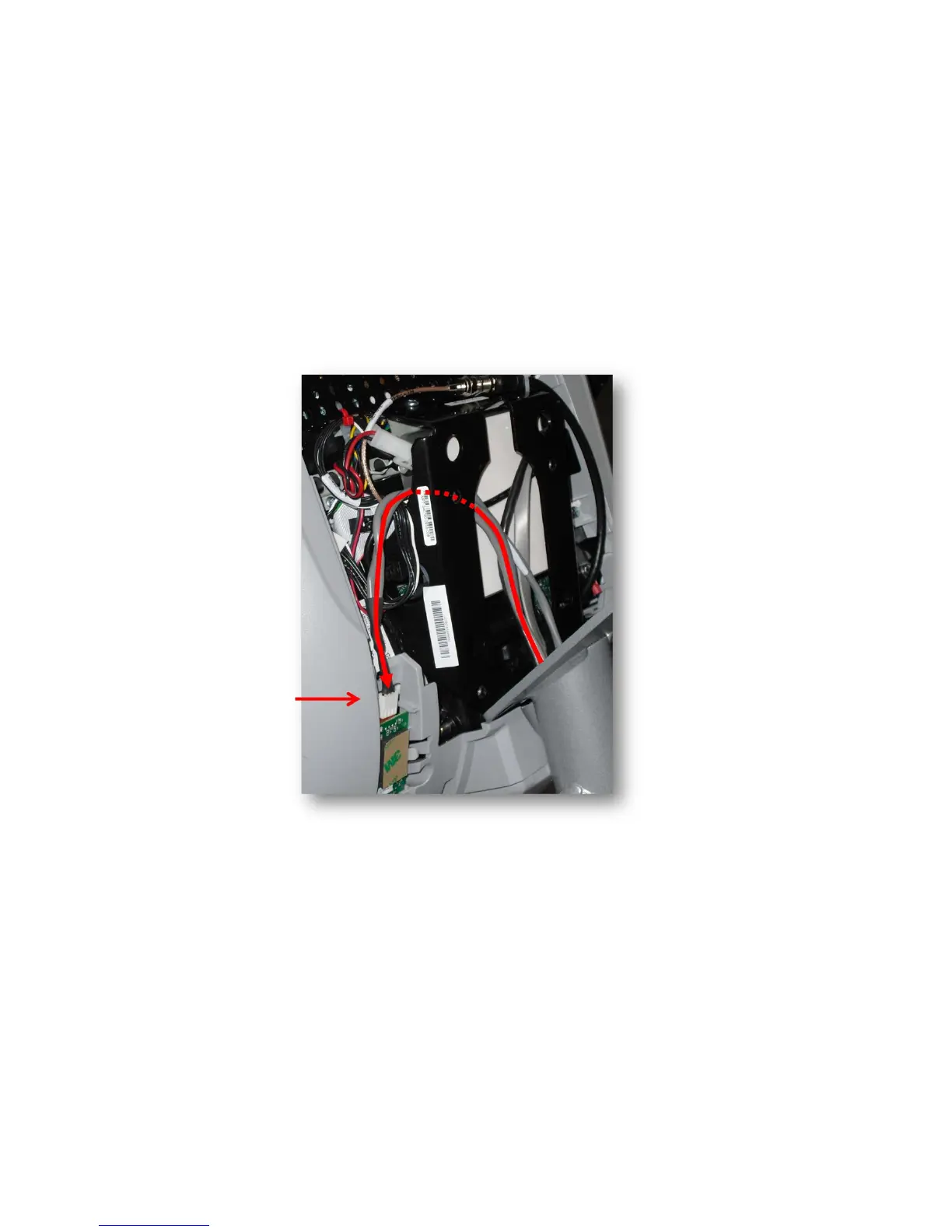

The Heart Rate cable s
hould be routed thr
ough the c
enter of the armor, and the
n through the upper left
corner of the weldment. Route any excess
H
eart Rate cable into the rectangular center section of the dash
assembly.
Fi
g
ur
e
12
:
Hea
r
t
Ra
t
e C
a
ble R
out
i
ng
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1 - Introduction
7
About this Document
7
Safety Guidelines
7
Section 2 - Verifying Proper Installation
9
Equipment Base Cabling
9
P80 Power Requirements
9
Treadmill Specific Concerns
9
Cable Routing through the P80 Armor
11
1-Stop Switch Cable Routing
12
2-RF Coax Cable Routing
13
3-Ethernet Cable Routing
15
4-Data Cable Routing
16
5-Auto-Stop Cable Routing
17
6-Power Cable Routing
18
7-Heart Rate Cable Routing
19
Mounting the P80 Console
20
Initial Configuration Steps
22
Steps to Perform on each and Every P80
22
Steps that Can be Cloned (Copied)
22
Section 3 - Operation Verification
23
Procedure
23
Operation Verification Checklist
25
Section 4 - Accessing the Service Software Menus
27
Settings Menu
27
About Menu
31
Equipment Usage Menu
34
System Settings Menu
36
Section 5 - System Tests and Workout Limits
39
System Tests
39
P80 Workout Limits
44
Section 6 - Updating Software
47
Acquiring P80 Software from the Precor FTP Site
48
Installing P80 Software into the P80 Console
51
Procedure
51
Section 7 - Display and Entertainment Settings
57
P80 Display
57
P80 TV Settings
61
Channel Guide
64
To Scan for Available Channels
64
To Name a Channel
64
To Delete a Channel from the Channel Guide
68
How to Update the Channel Plan
68
Section 8 - Cloning Settings
71
P80 Manage Settings (Cloning)
71
P80 Manage Settings Table
71
P80 Cloning Procedure
73
Section 9 - Connectivity and Registration
79
P80 Connectivity
79
To View Connectivity Information
79
P80 Connectivity Set up and Registration Procedure
81
Troubleshooting Procedures
85
Verifying the Hardware Version
85
Boot Error Resulting in Yellow Triangle Being Displayed
87
Possible Causes
87
Possible Remedies
87
Boot Error Resulting in Red Triangle Being Displayed
88
Description
88
Possible Causes
88
Possible Remedies
88
Preva Net Panel Icon Not Displayed
89
Description
89
Possible Causes
89
Possible Remedies
89
Preva Net Panel Displayed but Web Pages And/Or RSS Feeds Do Not Load
90
Description
90
Possible Causes
90
Possible Remedies
90
Sign-In Button Does Not Appear on the Welcome Screen
91
Description
91
Possible Causes
91
Possible Remedies
91
Black Screen - Full Console
92
Description
92
Possible Causes
92
Possible Remedies
92
Boot Screen Procedure
92
Poor Quality Video - Single Unit Only
93
Description
93
Possible Causes
93
Possible Remedies
93
Poor Quality Video - All Units
94
Possible Causes
94
Possible Remedies
94
Poor Quality Video - One Channel(S) or Limited Channels
95
Description
95
Possible Causes
95
Possible Remedies
95
Green Screen
96
Description
96
Possible Causes
96
Possible Remedies
96
Stuttering Channels
97
Description
97
Possible Causes
97
Possible Remedies
97
Touch Screen Slow Response
98
Description
98
Possible Causes
98
Possible Remedies
98
Touch Screen Responds Incorrectly to Touch or Is Unresponsive
99
Description
99
Possible Causes
99
Possible Remedies
99
Screen Calibration Procedure
99
Poor Quality Video - One Channel or Limited Channels
100
Possible Causes
100
Possible Remedies
100
Poor Audio Quality - All Channels, Multiple Units
101
Description
101
Possible Causes
101
Possible Remedies
101
Machine Controls Unresponsive
102
Description
102
Possible Causes
102
Possible Remedies
102
Message out of Service Displayed
103
Description
103
Possible Causes
103
Possible Remedies
103
Message Please Reset the Treadmill Displayed
104
Description
104
Possible Causes
104
Possible Remedies
104
Unit Reboots of Its Own Volition
105
Description
105
Possible Causes
105
Possible Remedies
105
Treadmill - Resets to Welcome Screen at Beginning of the "3
106
Description
106
Possible Remedies
106
USB Flash Drive Not Recognized
107
Description
107
Possible Causes
107
Possible Remedies
107
Section 11 - Replacement Procedures
109
Upper Component Access
109
The Main Vented Access Cover & Components
110
Replacing the P80 Console
111
Console Mounting - Removal
111
Disconnecting Cables
112
Console Installation
114
Cable Connections
115
Securing the P80 Console
118
Replacing the P80 Heart Rate PCA Board
118
Procedure
118
Section 12 - Wiring & Block Diagrams
121
Section 13 - Replaceable Parts Identification
125
