© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 12

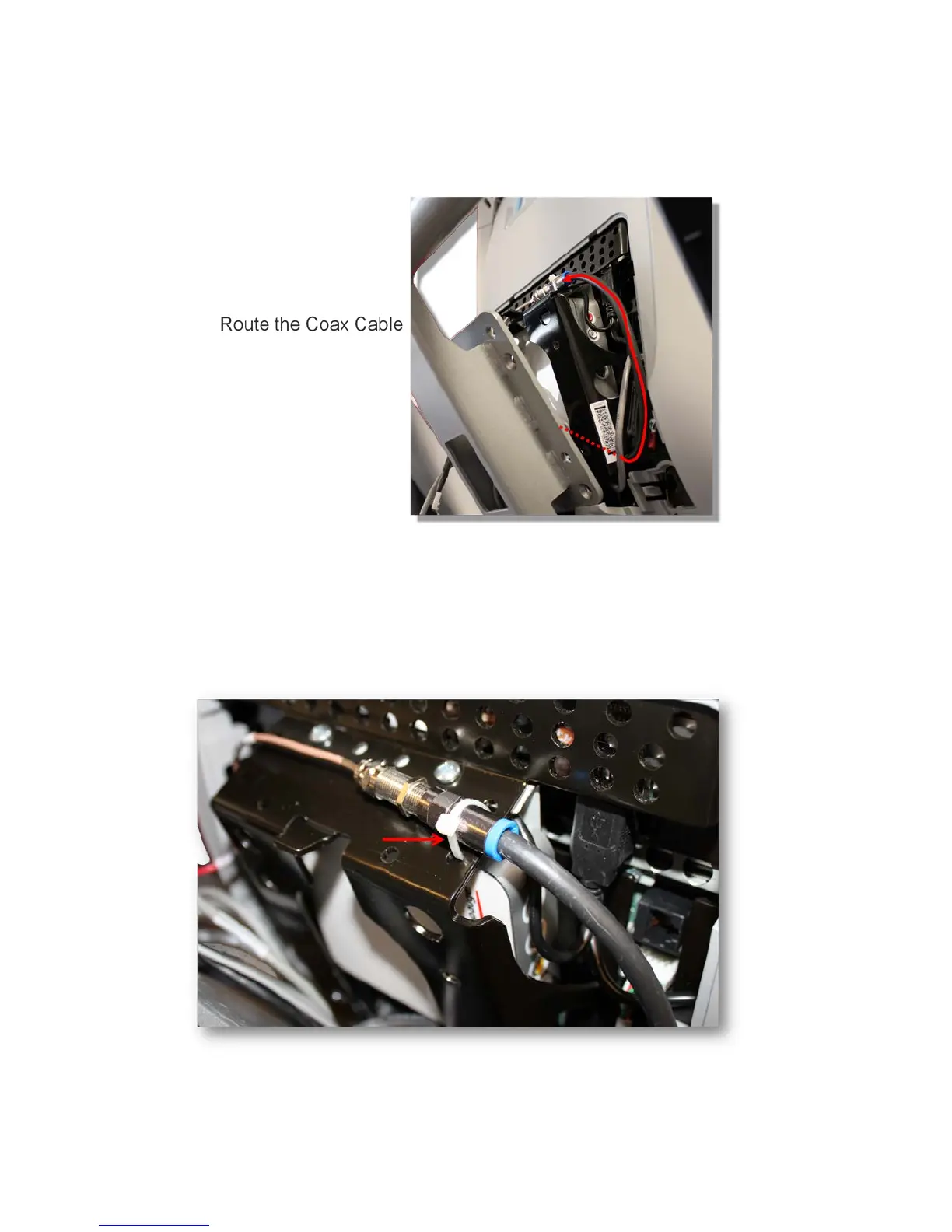

Figure 5: Coax Cable Ending Path
c) The RF Coax connector should be secured in place with the zip tie provided with the console. It is
important that the connection be tied to the frame in this location to prevent the cable being
pinched and possibly causing rattling noises during use. If the zip tie is missing, locate one and
secure the connection. Be sure to get the zip tie on the connector and not on the cable.
Figure 6: Coax Connector Zip Tie
