6 Upgrading your computer - 59
System covers

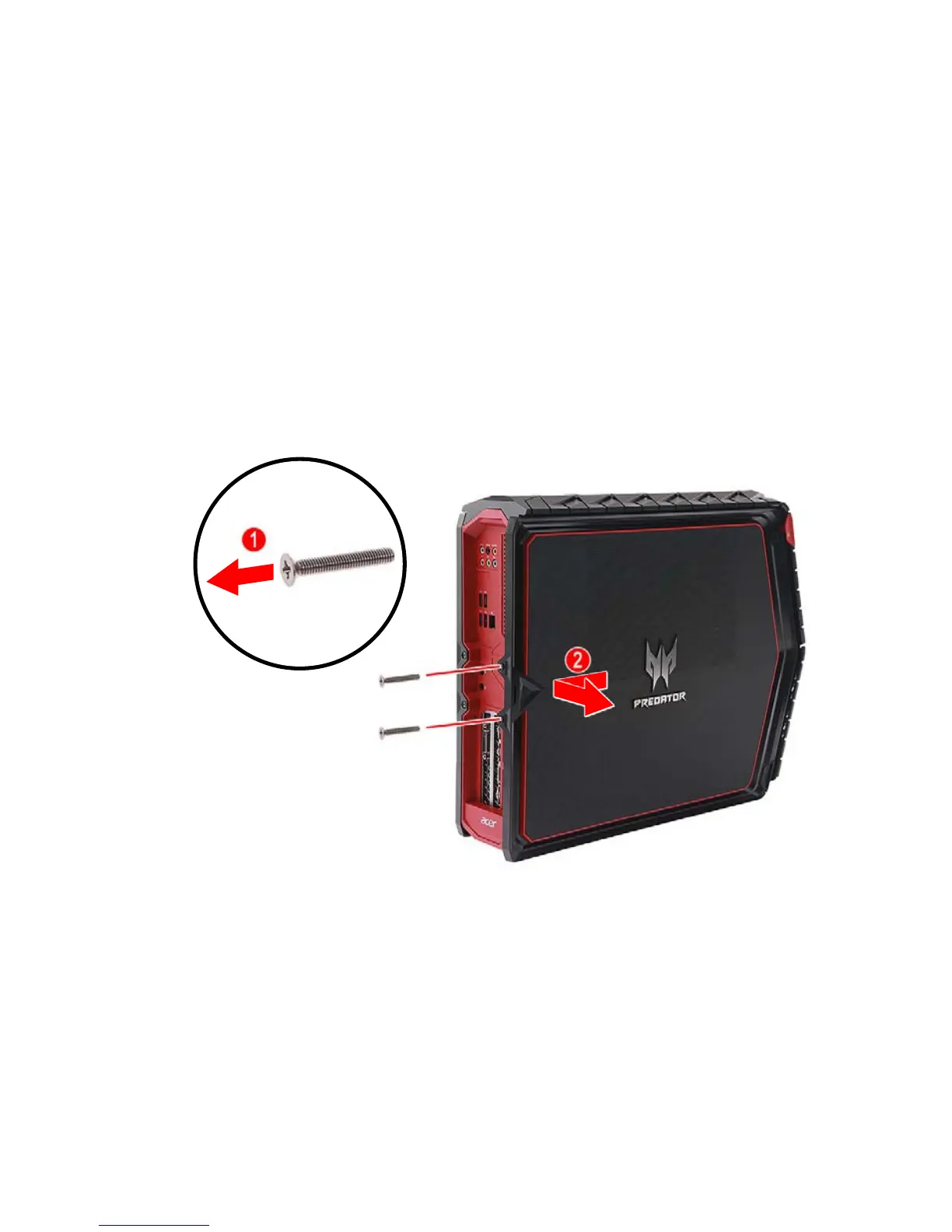

Removing the left side system cover
1.Before you proceed, make sure that you have turned off your
computer and all peripherals connected to it. Read the Pre-
installation instructions on page 58.
2.Remove the two screws that secure the system cover to the
computer (1).
3.Slide the cover toward the back of the computer and pull away from
the side of the computer (2).
4.Set the cover aside for re-installation later.
