PRESONUS Quantum 4848 - Back Panel Connections 后面板连接

7
2
2.2
Hookup

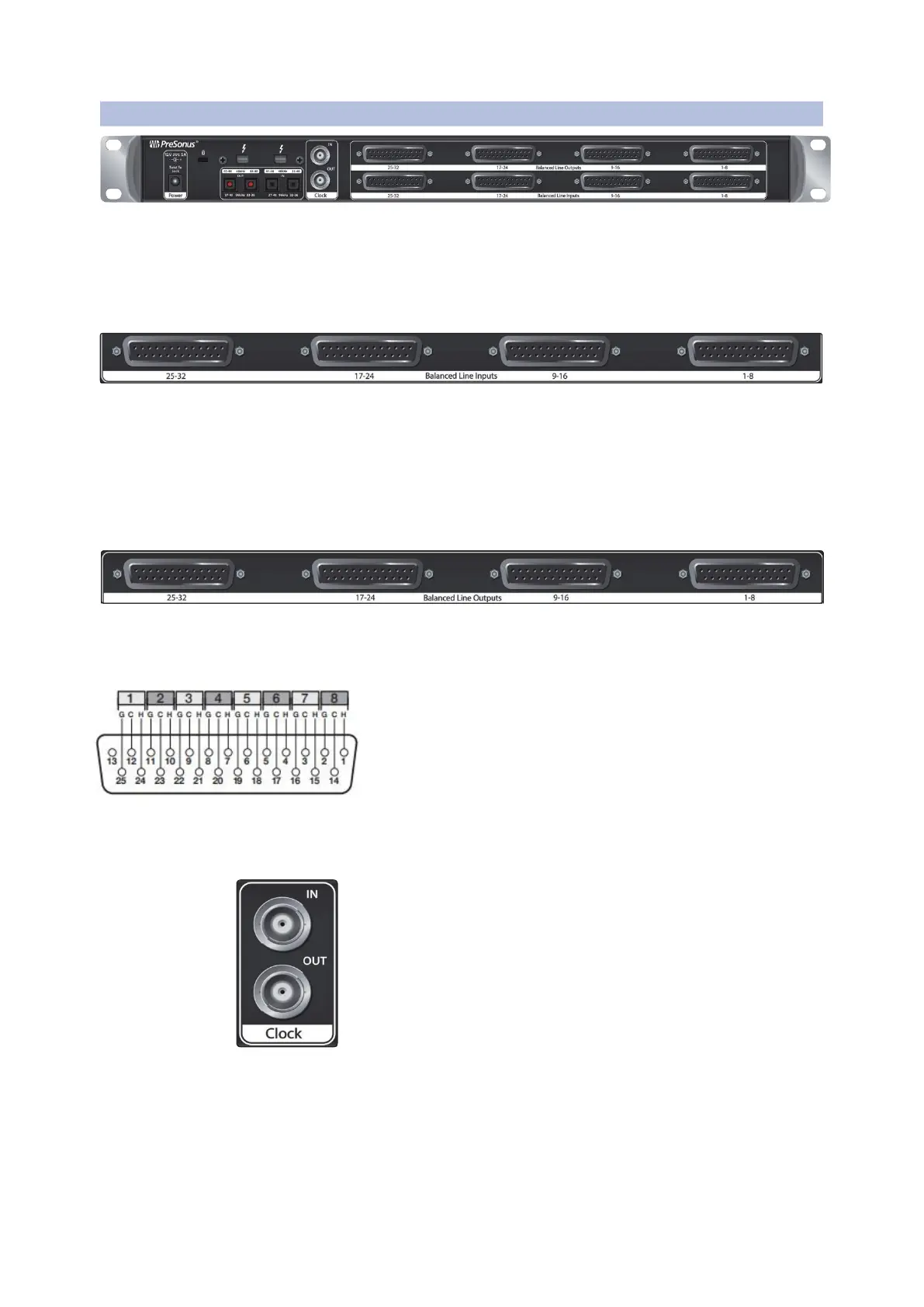

Back Panel Connections
Quantum 4848
Owner’sManual
2.2 Back PanelConnections
后面板连接
Line Inputs. The lower row of DB25 connections are for use with line-
level devices. These inputs are scaled to accept line-level signals up to
+18 dBu.
Line Inputs. 下面一排 DB25 连接是用于线路设备的。这些输入按比
例可以接受高达 +18dBu 的线级信号。
Line Outputs. The upper row of DB25 connections provide 32 balanced
line outputs to route to external devices, such as headphone amps,
signal processors, and patchbays. Each output has an independent
playback stream.
Line Outputs.
上排的
DB25
连接提供了
32
个平衡线路输出，以路由
到外部设备，如耳机放大器、信号处理器和跳线架。每个输出
都有一个独立的播放流。
A Quick Note About DB25
简要说明有关
DB25
The Tascam format DB25 connectors DB25 connectors
provide eight balanced channels on a single analog connector.
Balanced DB25 fan-out snakes can be obtained in various
configurations at most recording an d live-sound retailers.
Common configurations are DB25 to (8) XLRM, DB25 to (8)
XLRF, and DB25 to (8) TRS.
Tascam 格式的 DB25 连接器在一个模拟连接器上提供八个
平衡通道。平衡的 DB25 扇出曲线可以在大多数录音和现
场声音零售商处获得各种配置。常见的配置是 DB25 到
（ 8 ） XLRM ， DB25 到（ 8 ） XLRF ，以及 DB25 到（ 8 ） TRS 。
Clock In and Out. These BNC connections allow Quantum-series
interfaces to receive and transmit word clock to and from other
digital audio devices.
Clock In and Out. 这些 BNC 连接允许 Quantum 系列接口接收和传输
字时钟到其他数字音频设备。
Power User Tip: When using the BNC Clock input for external clock,
you will need to set “Wordclock” as the Clock Source in Universal
Control as well as to set the sample rate to be the same as the
external clocksource device. See Section 4.1 for details. A 75Ω BNC
word clock cable is required to achieve proper sync.
用户提示
:
当使用
BNC
时钟输入作为外部时钟时，你需要在
Universal Control
中设置
"Wordclock "
作为时钟源，并将采样率
设置为与外部时钟源设备相同。 详见第 4.1 节 。为了实现正确
的同步，需要一根 75Ω 的 BNC 字时钟线缆。
