3 Hookup

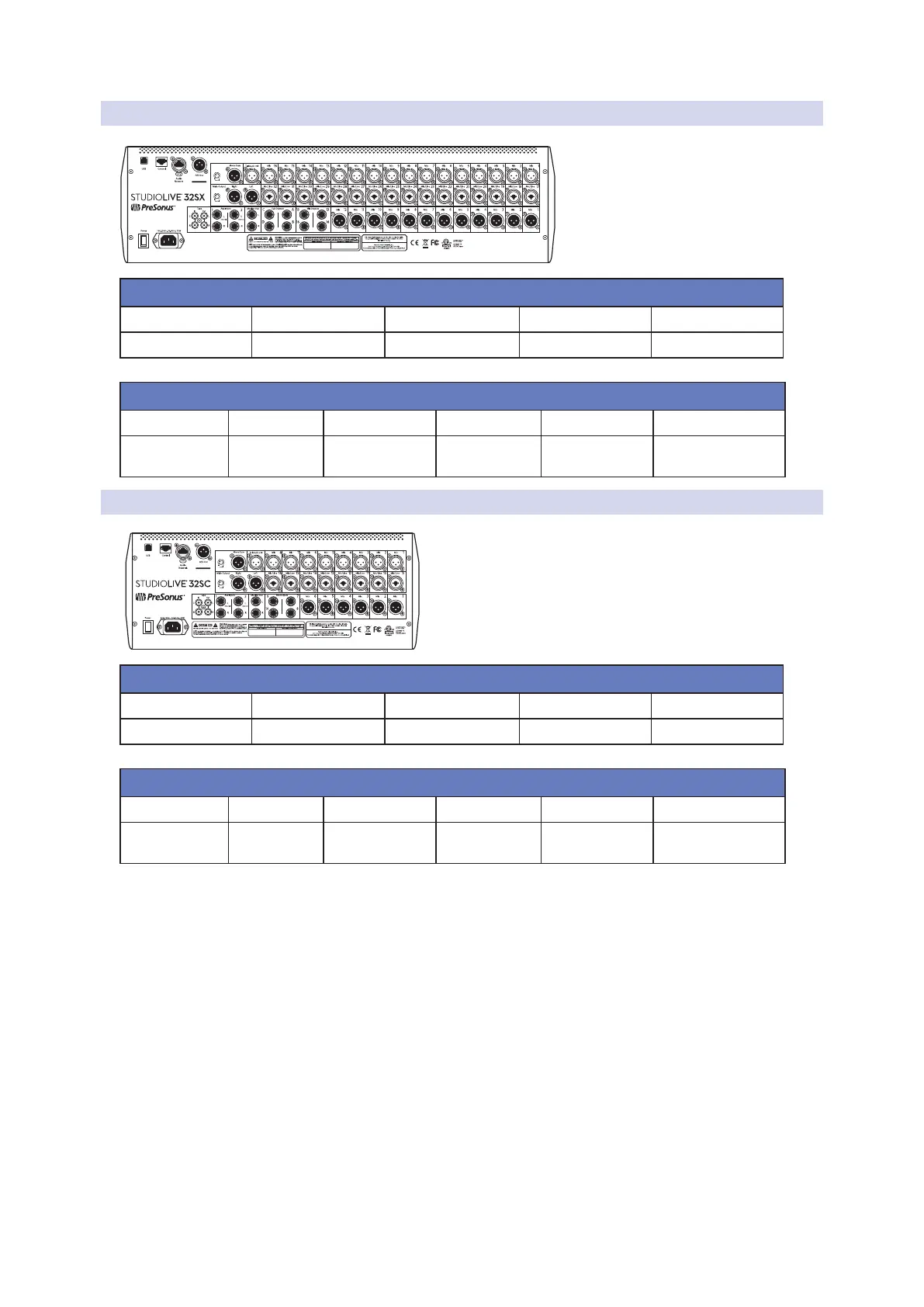

3.1 Rear Panel Configurations
StudioLive™ Series III
Owner’s Manual
3.1.3 StudioLive 32SX
Analog Inputs
Mic / Line Mic Only Aux Inputs Tape Inputs Talkback In
16 Combo 16 XLR 4 1/4” TRS 2 RCA 1 XLR (F)
Analog Outputs
Flex Mix Subgroup Main Out Mono Sum Monitor Out Tape Out
12 XLR (M)
4 1/4” TRS
4 1/4” TRS 2 XLR (M) 1 XLR (M) 2 1/4” TRS 2 RCA
3.1.4 StudioLive 32SC
Analog Inputs
Mic / Line Mic Only Aux Inputs Tape Inputs Talkback In
8 Combo 8 XLR 4 1/4” TRS 2 RCA 1 XLR (F)
Analog Outputs
Flex Mix Subgroup Main Out Mono Sum Monitor Out Tape Out
6 XLR (M)
4 1/4” TRS
N/A 2 XLR (M) 1 XLR (M) 2 1/4” TRS 2 RCA
