6.5.3 Class-A FET Compressor

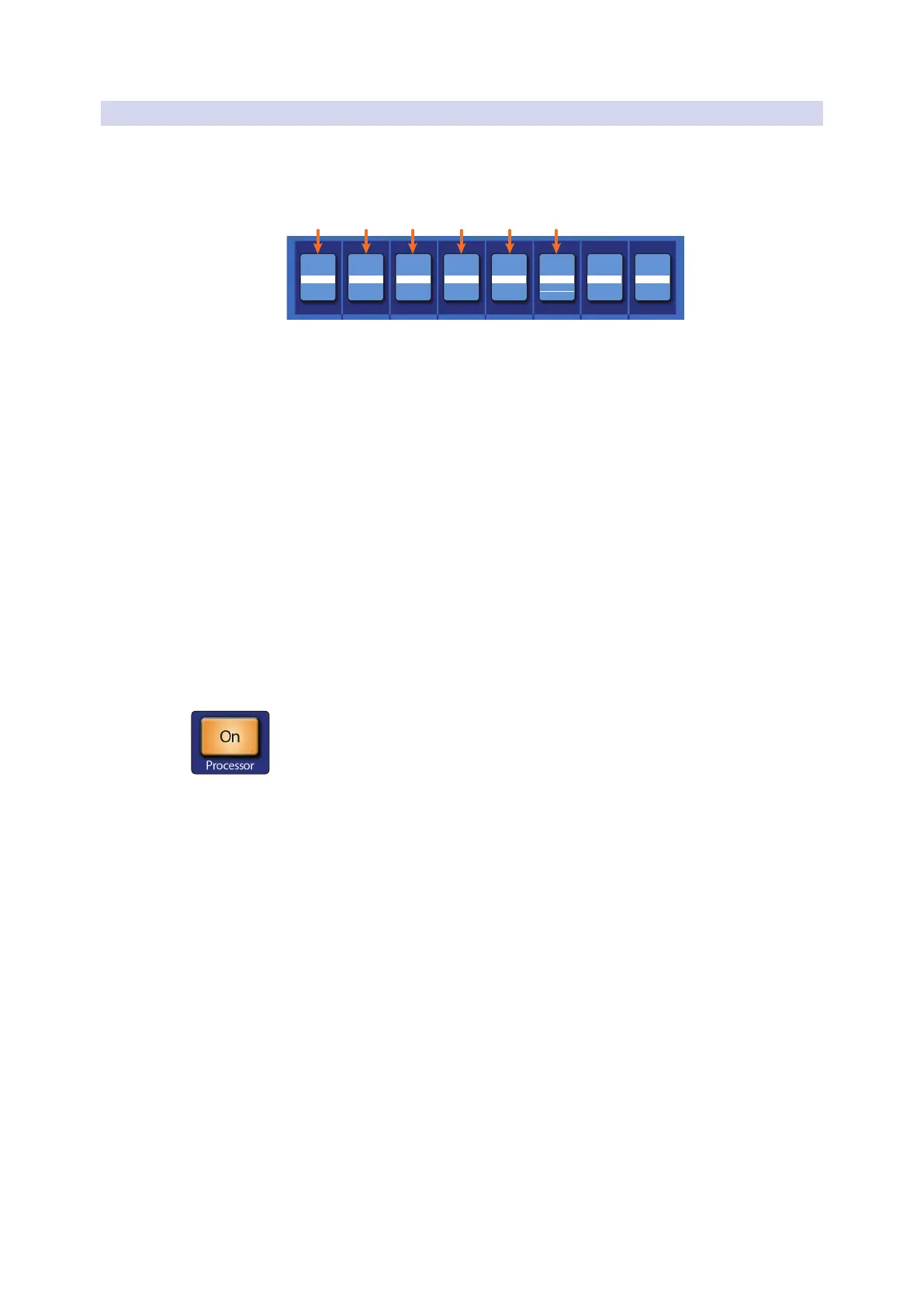

Dynamic Fat Channel Controls
When the Class-A FET Compressor is selected, the following controls are available in
the Fat Channel:
FET FET FETFETFETFET
Input Output Attack Release Ratio Key Fltr
Off0.10 ms 250 ms 4:1-24.00 dB-24.00 dB
Key Lstn
1 2 3 4 5 6
1. Input Gain. Sets input gain to the compressor. This setting affects the action of
the compressor, so feel free to try various settings to find the optimal effect for
your needs.
2. Output Gain. Sets the amount of “makeup gain” to apply to a signal. Once a
signal is compressed, its overall level is often reduced. This gain control lets you
bring it back up to the proper level after compression occurs.
3. Attack. Sets the time it takes for the compressor to begin attenuating a signal
once it passes the threshold.
4. Release. Sets the time it takes for the compressor to stop attenuating a signal
once it falls below the threshold.
5. Ratio. Sets the Ratio for the compressor. The following Ratios are available: 4:1,
8:1, 12:1, 20:1, or All.
6. Key Filter. This encoder sets, and the scribble displays, the frequency at
which the compressor will engage. The compressor will still process the entire
frequency range, but it is only engaged when the specified frequency is
present. Press the button below to listen to the signal being used to trigger the
compressor (including the effects of the high-pass filter, as set with the Key Filter
control). Press again to switch back to the normal channel signal.
Press the Processor button to turn the Compressor on or off.
