Fixed Fat Channel

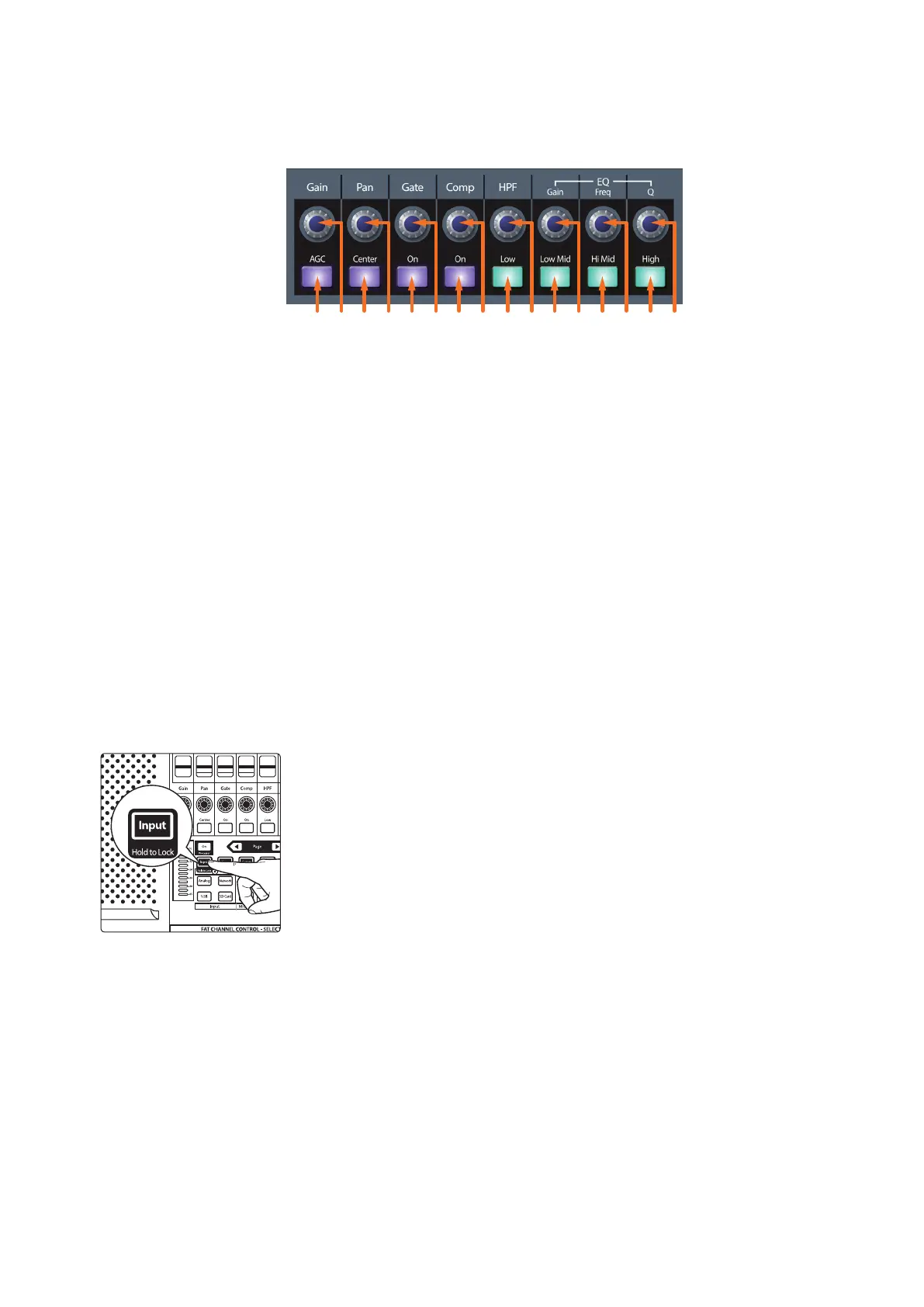

The eight encoders and buttons on the StudioLive 32SX and StudioLive 32SC always
control the following functions:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1. AGC (Automatic Gain Compensation).
2. Preamp Gain.
3. Center.
4. Pan.
5. Gate On / Off.
6. Gate Threshold.
7. Compressor On / Off.
8. Compressor Threshold.
9. Low Band Active.
10. High Pass Filter Frequency.
11. Low Mid Band Active.
12. Active EQ Band Gain Control.
13. High Mid Band Active.
14. Active EQ Band Frequency Control.
15. High Band Active.
16. Active EQ Band Q Control.
All other mixers can lock to these controls by pressing and holding the Input
layer button.
For more information on the Input functions, please see Section 6.3.
