Prestige APSRS - Page 30

APSRS_RevC_9/19
30

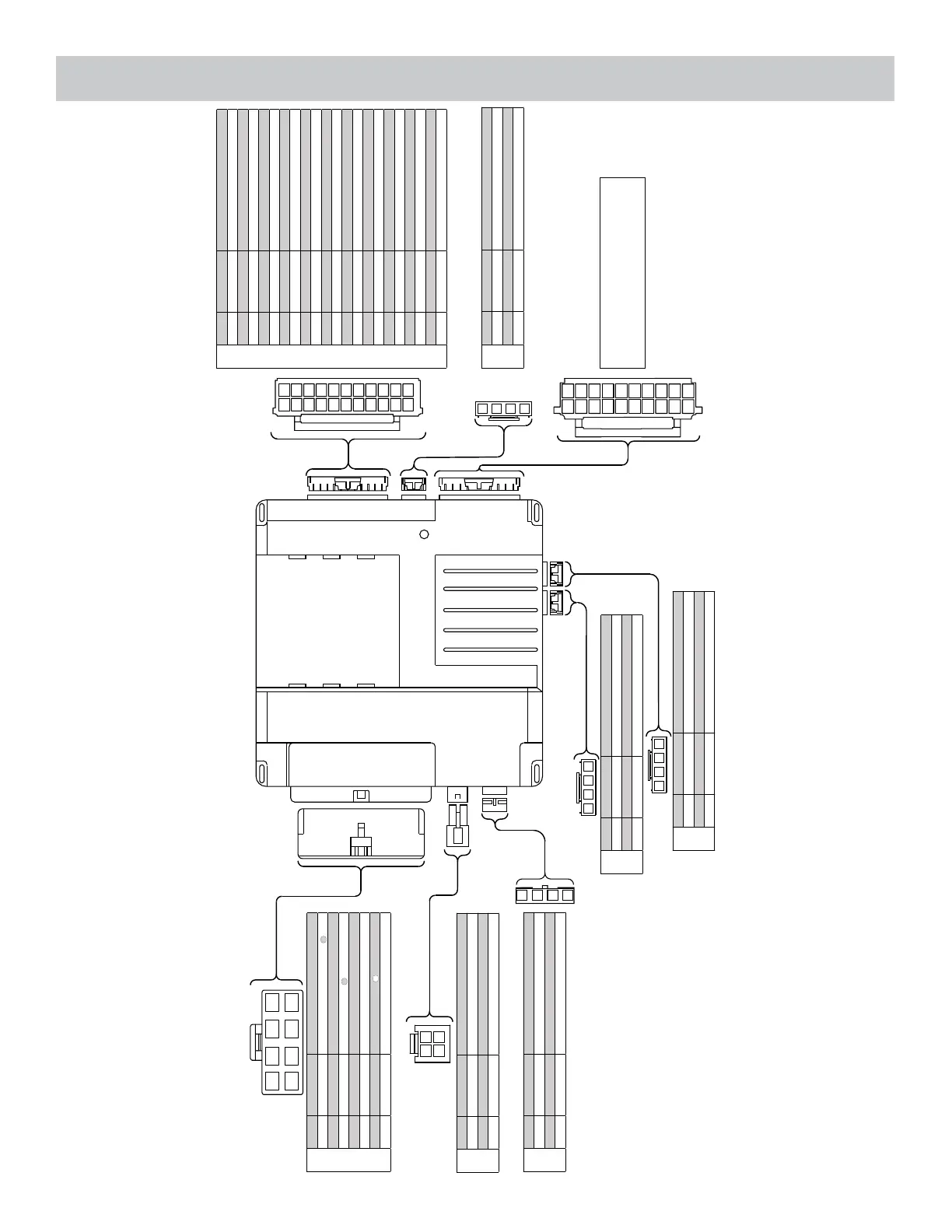

Quick Reference: Wiring Diagrams
1 2 3 4
1 2 3 4
1
2 3 4
1 Red/Black
Ignition 3 Flex Relay (87) Input
2 Pink
Ignition 3 Flex Relay (30) Output
3 Yellow
Starter Output (+)
4 Green
Ignition 2 Output (+)
5 Red
Battery 12V Input (+)
6 Red/White
Battery 12V Input (+)
7 Purple
Accessory Output (+)
8 Blue
Ignition 1 Input / Output (+)
8 Pin Start
P
P
P
1
White Data RX
2
Black Ground (-)
3 Blue
Data TX
4 Red
Battery 12V (+)
DBI
1
Green Data RX
2
Blue Data TX
3 Black
Ground (-)
4 Red
Battery 12V (+)
RF
1
Blue Data TX
2
White Data RX
3 Black
Ground (-)
4 Red
Battery 12V (+)
CarLink
4 Red
Battery 12V (+)
3 Black
Ground (-)
2
White Data RX
1
Blue Data TX
Weblink
22
Green
Unlock Output (-) (NOC 11)
21
Dk. Blue
Trunk Output (-) (NOC 9)
20 Red Lock Output (-) (NOC 10) 19 Green/Lt. Blue Ch. 4 AUX Output (-) (NOC 8)
18 Black/White Horn Output (-) 17 Lt. Blue/Green Ch. 5 AUX Output (-) (NOC 7) 16 Red/Black 2nd Unlock Output (-) (NOC 12)
15
Black/Lt. Green
Factory Arm Output (-) NOC 6)
14 Brown/Black Brake Input (+) 13 Black/Blue Factory Disarm Output (-) (NOC 5) 12 Dk. Blue/Black External Activation Input (-)
11 Black/Red Pulse After Shutdown Output (-) (NOC 4)
10 Orange/Black Parking Brake Input (-)
9 Black/Yellow Pulse During Crank Output (-) (NOC 3) 8 Green/Yellow Diesel Glow Plug Input (+)
7 Green/White DomeLight Output (-) (NOC 2) 6 Purple/Brown Door Trigger Input (- / +)
5 Lt. Blue Remote Start Status Output (-) (NOC 1)
4 Green/Orange Tach Input (-)
3 Gray/Black Hood Input (-)
2 Lt. Green Trunk Trigger Input (-)
1 Orange Starter Kill Relay / Anti-Grind Output (-)
22 Pin Input/Output
1 2 3 4
VOXX
FLCART Dock
Replacement Part #4120457
Replacement Part #4120463 Replacement Part #4120458 Not Included
Not Included
Not Included
Not Included
1 White
Parking Light (30) Output
2 White/Red
Parking Light (87) Input
3 Yellow/Black
Ignition Output to Alarm (+)
4 Black
Ground Input (-)
4 Pin Light
Replacement Part #4360832
This Harness is included with the FLCART.
For Wire Informa�on and Diagram Please Refer to Vehicle Specific
FlashLogic Install Guide.
Visit www.FlashLogic.com for More Informa�on.
Not Included
19 17 15 13 11
9 7 5 3 1 2
4 6 8
10 12 14 16 18 20
21 22 19
20
17 18 15
16
13
14
11 12
9
10
7 8 5 6 3 4 1 2
1 3 5 7 2 4 6 8
1 3 2 4
