Label and Roll Specifications 43

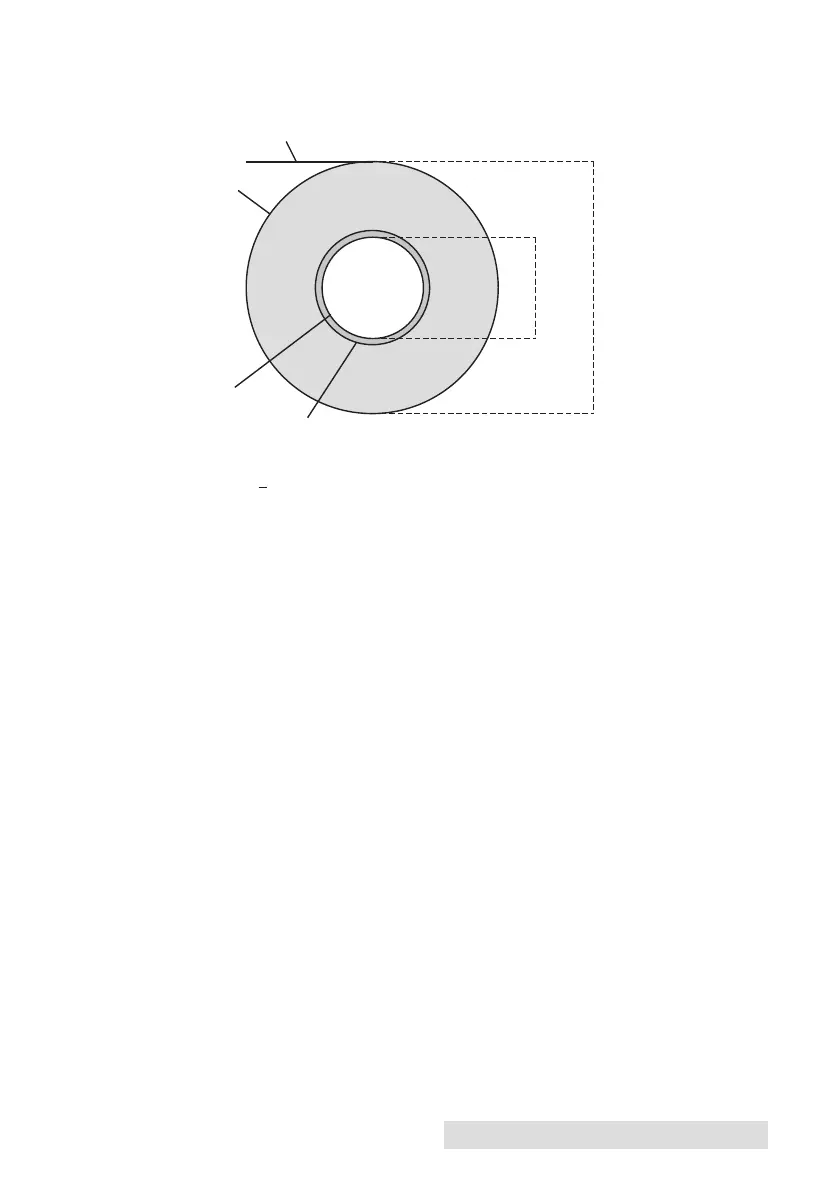

Roll Specifications
Label Side Out
Core I.D.
Core O.D.
Roll O.D.
Notes:
1.
Label height <1.5” requires a 2.00” I.D. x 3.00” O.D. core.
Label height >1.5” requires a 2.00” I.D. x 2.25” O.D. core.
2.
Turret glue or 1/2”-wide 3M 928 double-sided removable tape must be
used to attach stock to core. Removable tape must be positioned across
full width of core. Other types of tape are not allowed.
3.
End face of liner must align with end of core on both sides within 0.030”.
(Core width should be the same as liner width.)
4.
Masking tape or equivalent may be used to secure label stock to outside of roll.
2” 5”
Label Stock
