10 Hardware and Software Set-Up and Testing

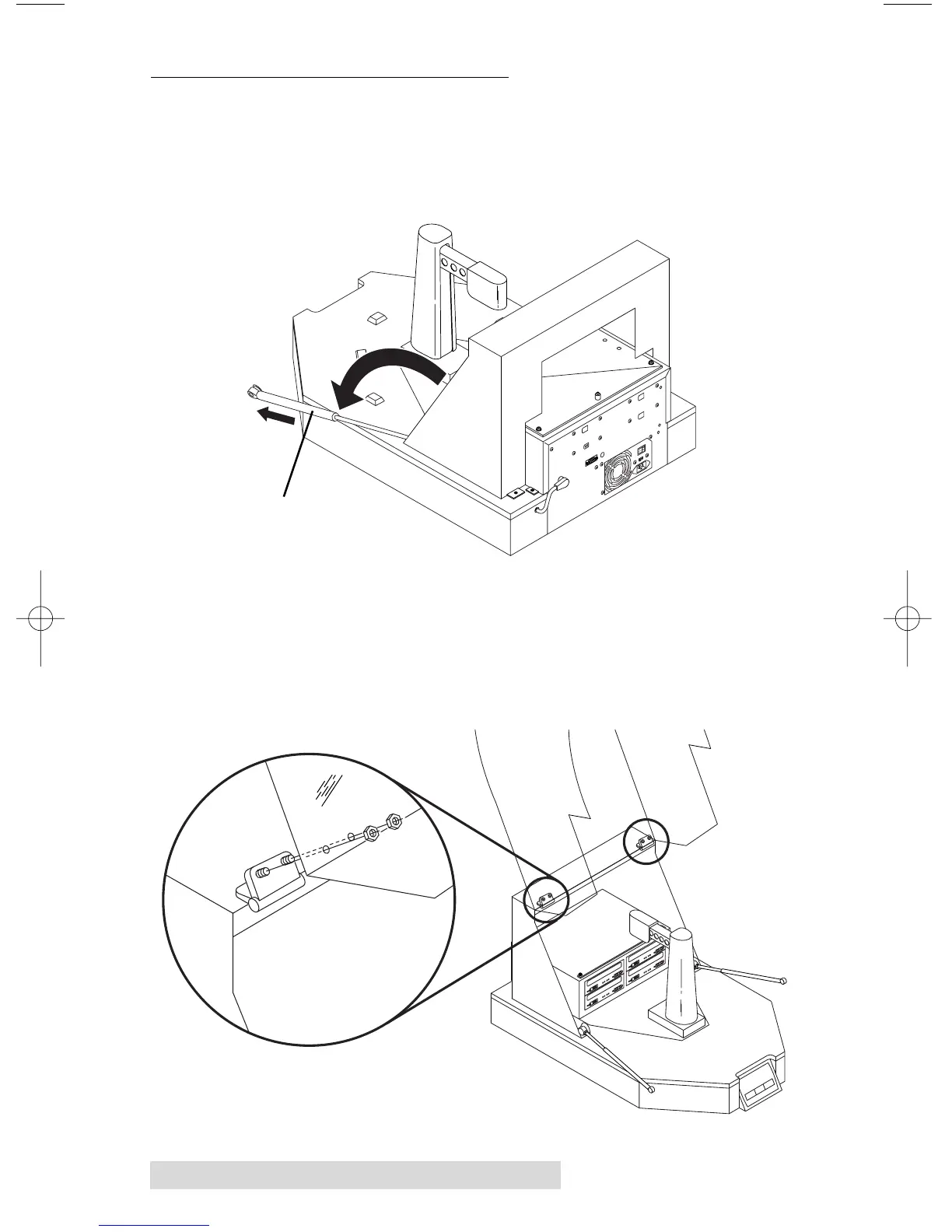

B. ATTACHING THE TOP COVER
1. Remove shipping tape surrounding the Support Struts.
2. Compress the struts to move them out from the Duplicator
Shell Case, and lay them to the side as shown.
3. Set the Top Cover on the Duplicator Shell Assembly, aligning
the holes on the Top Cover with the mounting studs of the
black plastic hinges.
4. Install the 4 Gold Mounting Nuts to attach the Top Cover to the
Duplicator Shell Assembly.
Support Strut
To Next Page
