C. IDENTIFYING THE PARTS
Front Panel and Top

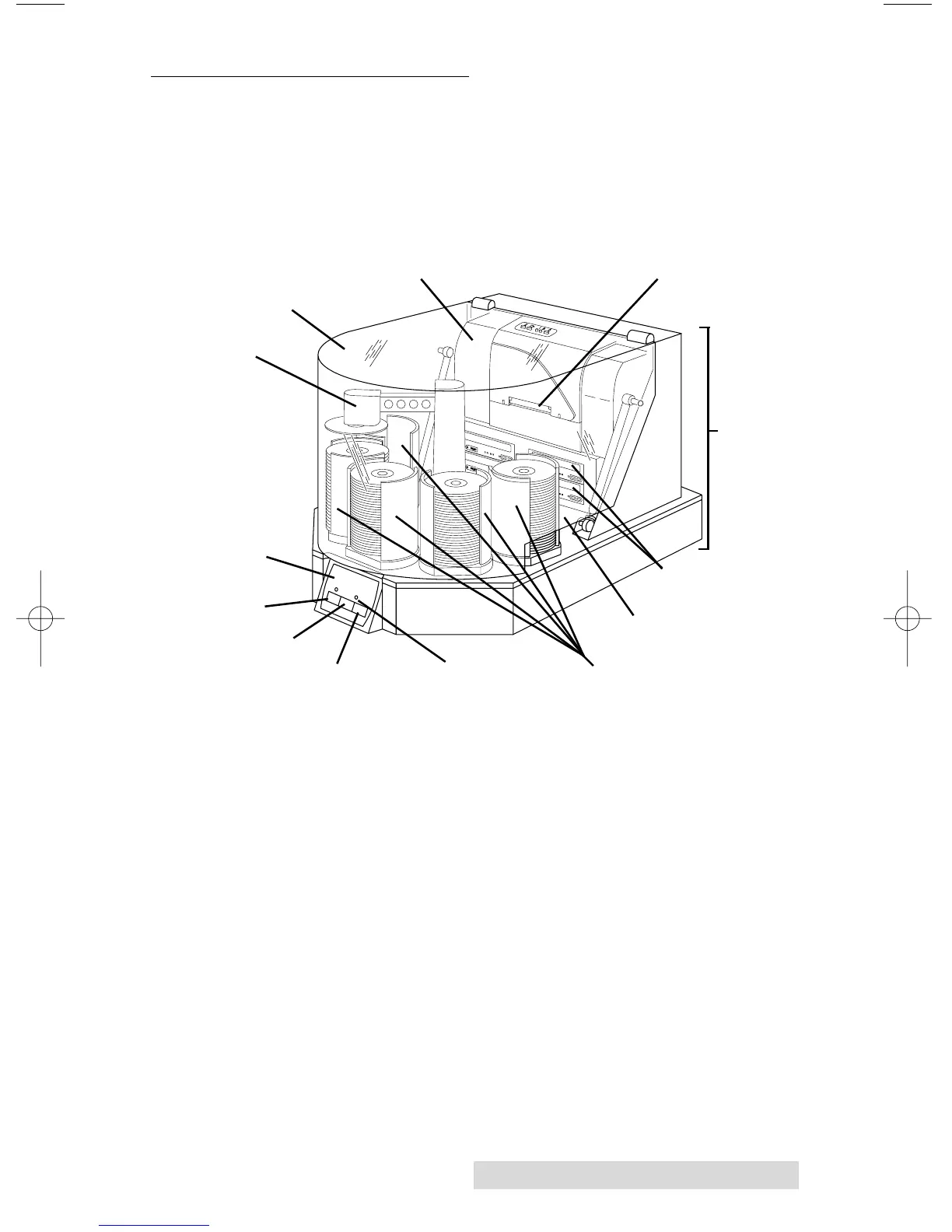

This illustration shows the Duplicator, its Control Panel,
Buttons, LED indicator lights, Input/Output Bins and other
components. An optional ink-jet CD printer is shown with the
unit so that you can see where it is attached:
CD/ DVD Recorder Drives are automatically loaded and
unloaded by the Duplicator for the unattended copying
of discs.
The Robotic Arm transports discs from an Input Bin, to a
CD/DVD Recorder, to the printer, and finally to an Output Bin.
The Control Panel contains LED Status Lights and Buttons to
manually control operation of the Duplicator.
The LED Status Lights indicate that Power is ON and when
the Pause Button has been pressed. They also blink in certain
patterns to indicate an error or other condition of the
Duplicator. See Section 4 for a full explanation of the LED
Status Light conditions.
The Pause Button immediately pauses the motion of the
Robotic Arm. It is also used in combination with the Pick
Button to perform a reset on the robotics.
Getting Started 3
Ink Jet CD Printer
CD Printer Tray
Duplicator
Shell
CD/DVD
Recorder Drives
LED Status
Light
Pick Button
Sequence Button
Pause Button
Control Panel
Input/Output Bins
Robotic Arm
Top Cover
Reject Area
