The Sequence Button moves the Robotic Arm from one
position to the next. It is used mainly during the set-up and
testing procedures.
The Pick Button is used to manually pick up a disc and to
drop it in a Bin, the CD Recorder or the Reject area. It is
also used in combination with Pause to perform a reset in
the robotics.
The Input/Output Bins are situated on pegs around the base of
the Duplicator. This is where you stack up to 100 blank discs,
which are to be recorded and printed. The center bin is left
empty and will be the first output bin. The duplicator will then
keep track of which bins contain blank media and which bins
will accumulate finished output.
The Reject Area is where discs are dropped if they do not pass
a software verification test. Discs simply drop on the base of
your Duplicator in front of the drives. In most cases, rejected
discs should be discarded.
The Top Cover is a durable cover made of poly-carbonate
plastic that will protect the duplicator from dust and
interference.
Rear Panel

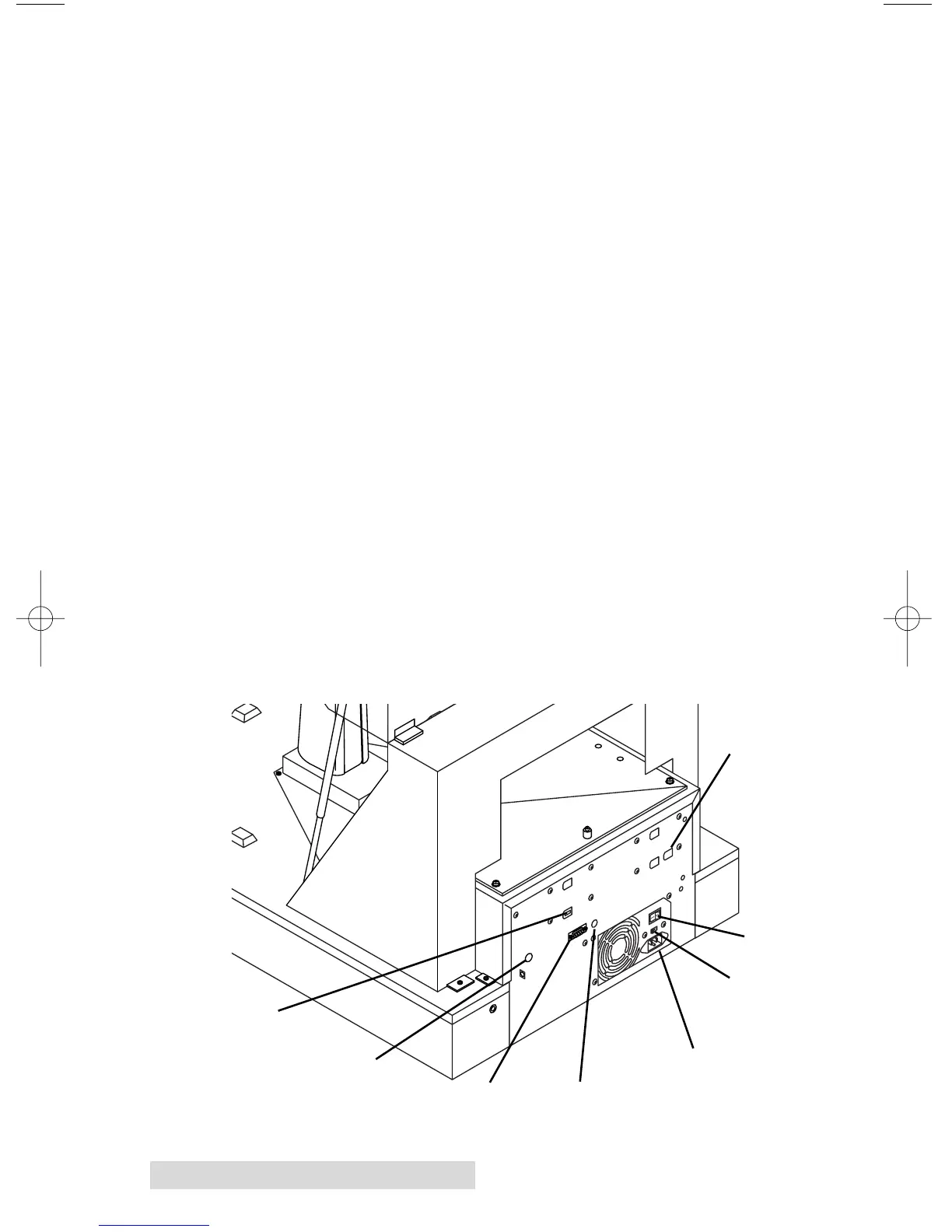

This illustration shows the input ports found on the rear panel
of the Duplicator:
4 Getting Started
Robotic Module
Interface Cable
Port
FireWire Port
Serial Control
Port
Printer Control Port
Power Port
Voltage
Selector
Switch
On/Off
Second
FireWire Port
(DVD version
only)
