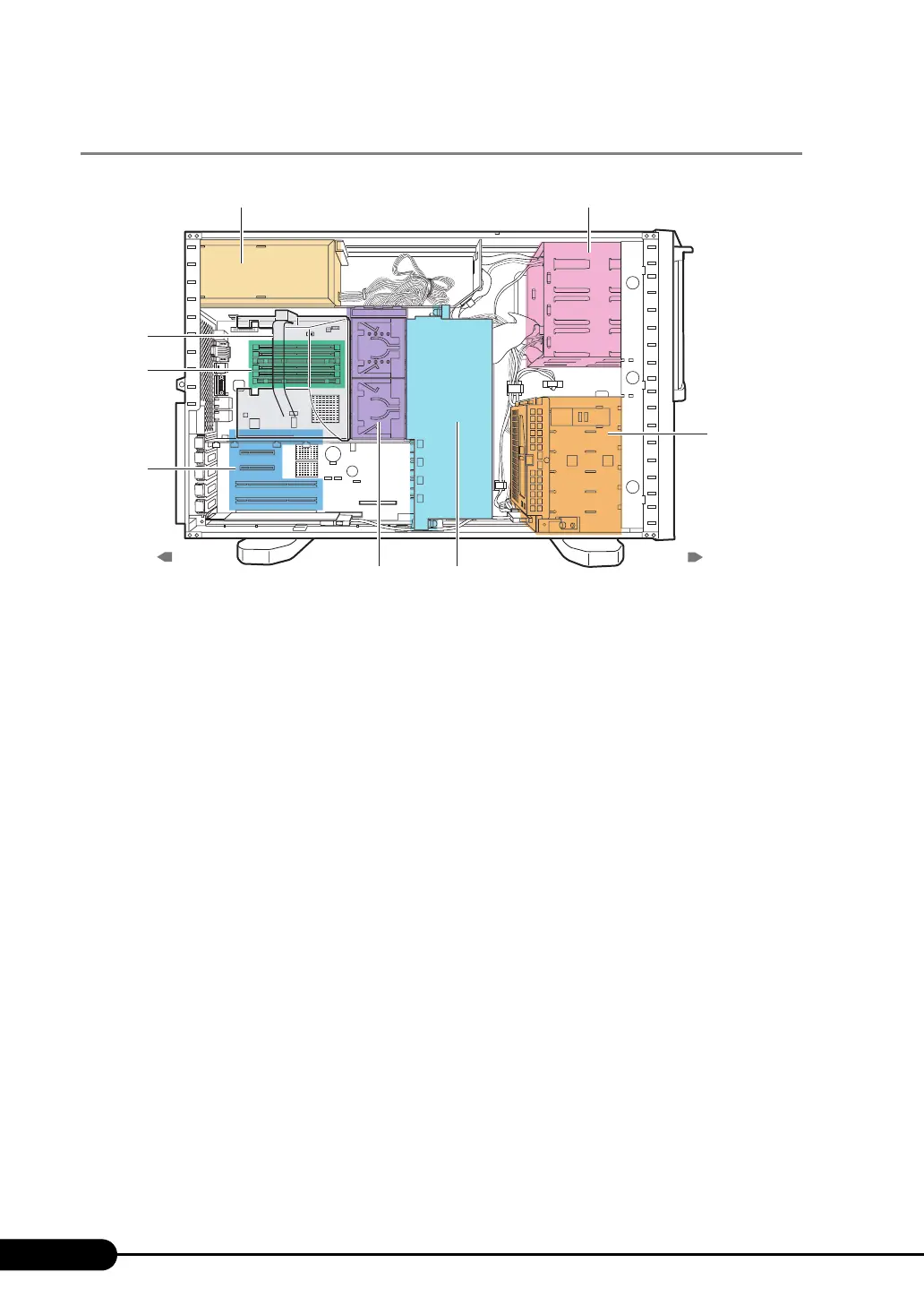

1.3.3 Server (Internal)
a Power supply unit
b 5-inch storage bay
Contains a 5-inch internal optional device. .
c 3.5-inch storage bay
Contains a 3.5-inch internal optional device.
d System fan
When Power Supply Conversion kit is used, four fans are installed to enable the redundant
function.
e CPU socket
Install the CPU. One socket is installed by default. Up to two sockets can be installed.
When Power Supply Conversion kit is used, attach CPU fans.
f PCI slot
Contains extension cards that enhance the server functions.
PCI cards with the PCI bus interface can be installed in the PCI slots.
g Memory slot
Contains memory.
h Ventilation duct
