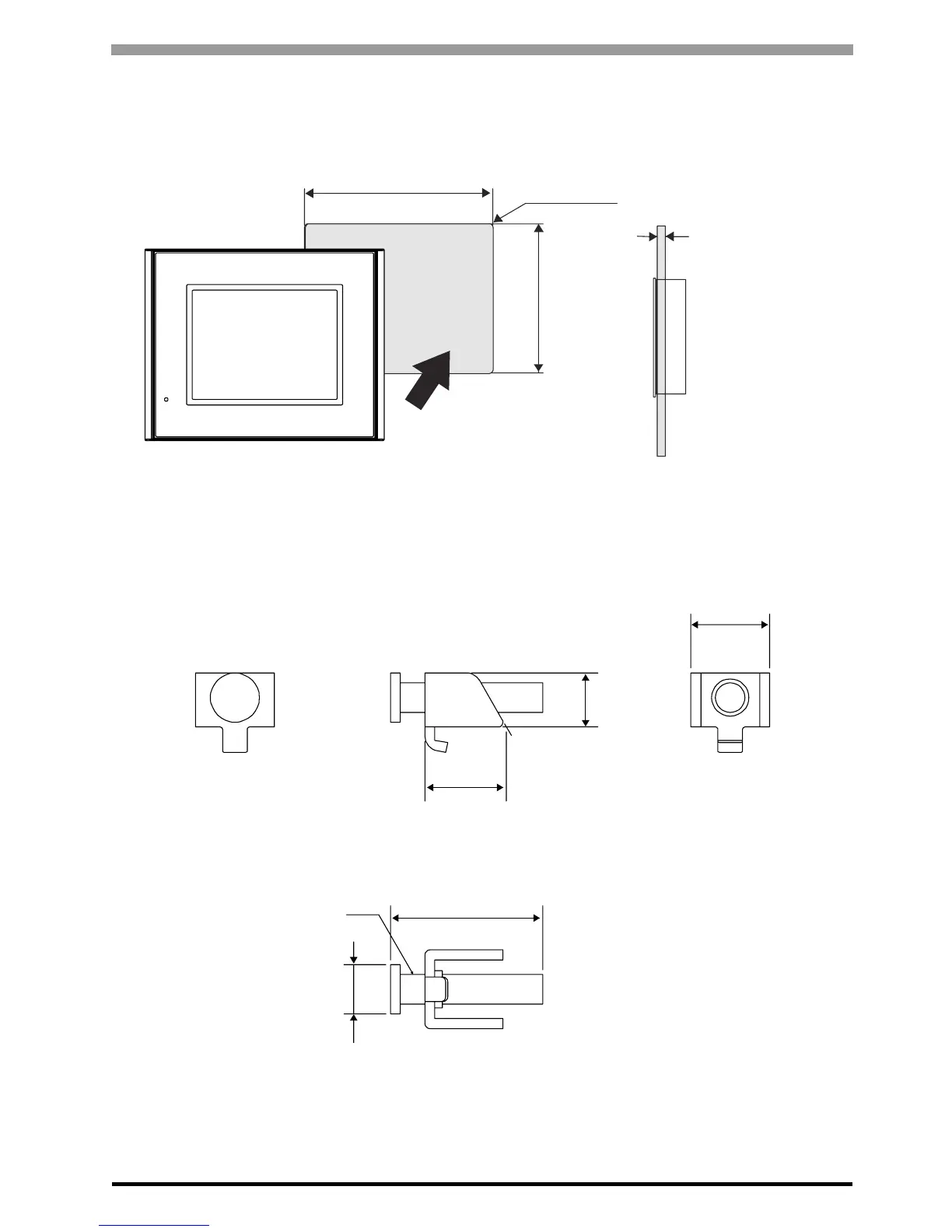

Panel Cut Dimensions
Unit: mm[in.]
Installation Fasteners
Unit: mm[in.]
118.5
+0.04
-0
92.5
+1
-0
4-R3 [0.12] or less
Panel thickness area
1.6[0.06] to 5.0[0.20]
+1
-0
[4.67 ]
[3.64 ]
+0.04
-0
16[0.63]
31[1.22]
M6
Φ10[0.39]
16.6[0.65]
11[0.43]
