Wrapper Jogging Screen
This is the Wrapper Jogging Screen. This screen allows jogging of each component of the
machine.

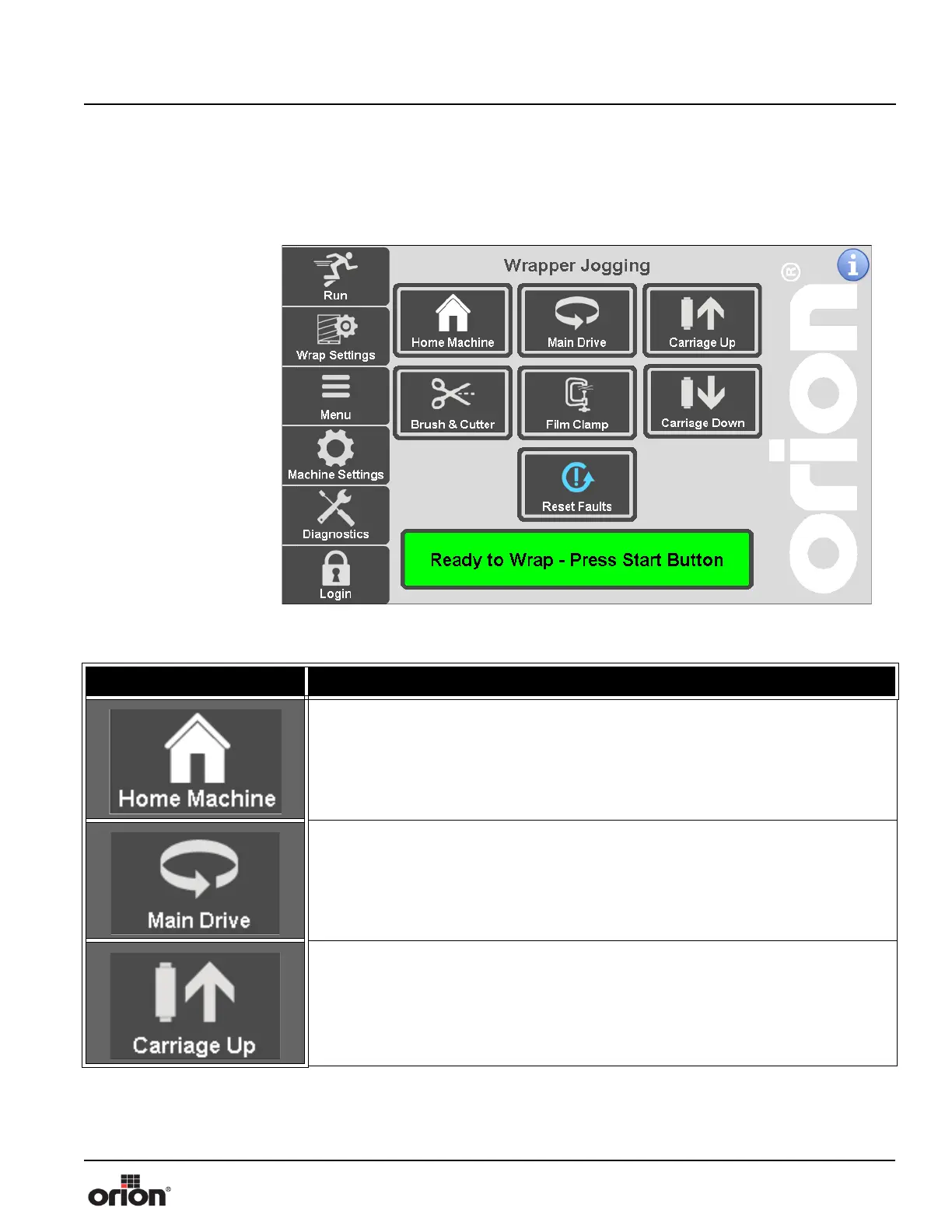

Figure 3 - 9
The Wrapper Jogging
Screen
Table 3-8. The Wrapper Jogging Screen Button Descriptions
STATE 1 DESCRIPTION
Press this button to move the machine to the home position.
Press this button to jog the main drive (turntable/ tower) in the direction of normal
operation. The main drive moves until the operator releases the jog button.
Press this button to jog the carriage upwards. The carriage move slowly upwards
until the operator releases the jog button.
