Engineering Information (Continued):
Operator Interface Panel (OIP) (Continued):
ADAM Setup Menu:
This menu displays the various settings for the universal analog input module. This module provides the
various analog input signals to the PLC. These values identify the input types for the various channels. All
settings listed here are set at the factory and should not be changed.

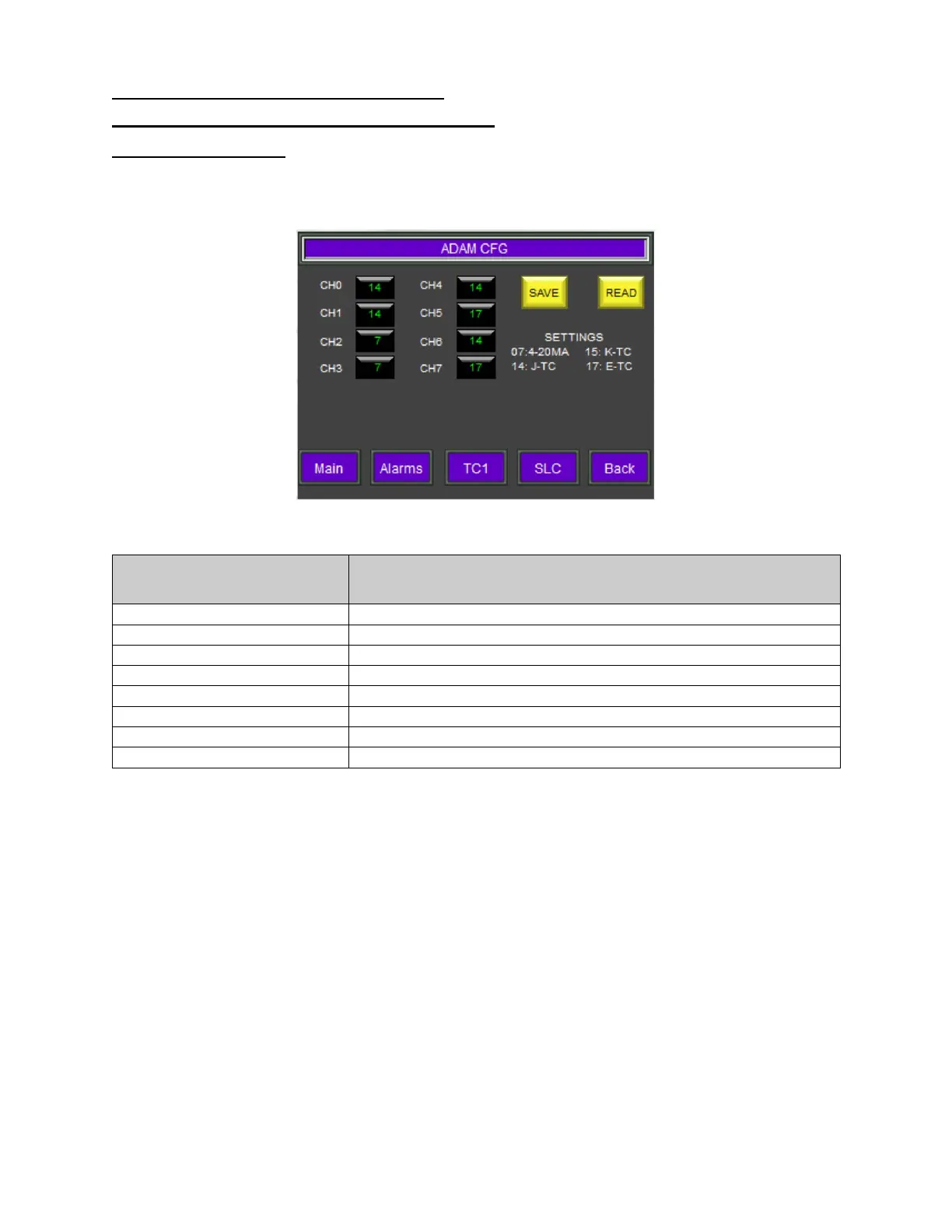

Figure 12: ADAM Setup Menu
ADAM CFG Information
Panel
Description
CH0-CH7
These fields show the analog sensor type for each input channel.
SAVE
Saves changes made to a channel input value.
READ
Reads the stored value from the ADAM module’s memory.
MAIN
This button will display the MAIN MENU screen.
ALARMS
This button will display the ALARMS MENU screen.
TC1
This button will display the TC1 SETUP MENU screen.
SLC
This button will display the SLC SETUP MENU screen.
BACK
This button will return to the previous screen.
