The time that the waveform is high includes the rise time and is set in “ms”
The time that the waveform is low includes the fall time and is set in “ms”
The RISE and FALL time is set in “mA/μs” or “A/μs”. The actual engineering unit is
Shown on the right of the lower 5 digit display
Press DYN setting key, LED will ON

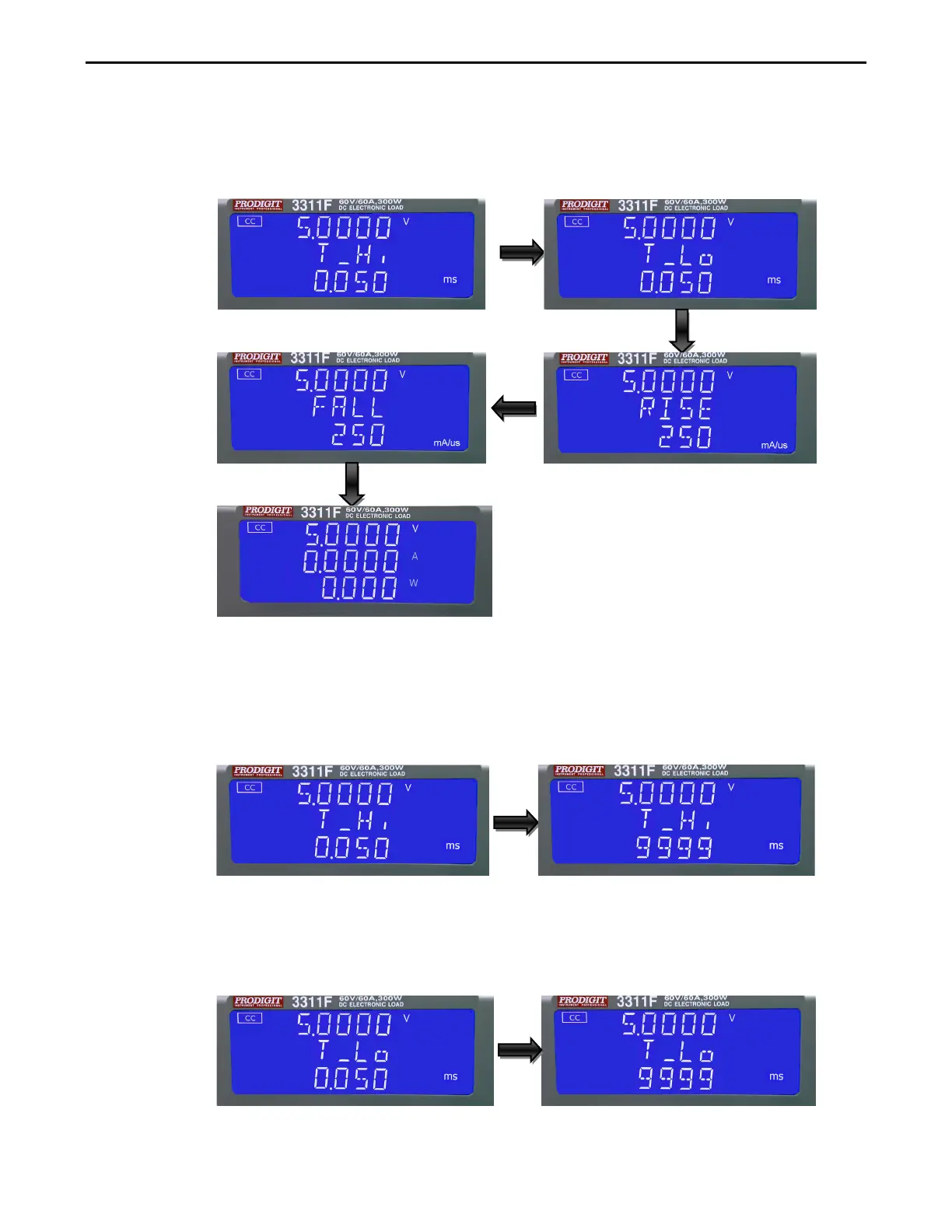

Setting level High Period, Middle 5 digit LCD display will show 「T-Hi」
Lower 5 digit LCD display will show setting value, the unit is “ms” , The T-Hi
Set range from 0.050 ms to 9999 ms step 0.001ms by rotating the setting
Knob.
Setting level Low period, Middle 5 digit LCD display will show 「T-Lo」,
Lower 5 digit LCD display will show setting value, the unit is “ms” , The T-
Lo set range from 0.050 ms to 9999 ms step 0.001ms by rotating the
Setting knob.
