ProFire PF2100 - Included Components

76
BASE MODELS
MODEL # MODEL DESCRIPTION
E0000 Base Model
E0400* Base Model with 4-20mA Repeater Expansion Card
E0R00 Base Model with 4-20mA Repeater Expansion Card
E0M00 Base Model with ModBus Expansion Card
E04M0* Base Model with 4-20mA Repeater Expansion Card and Modbus Expansion Card
E04M0 Base Model with 4-20mA Repeater Expansion Card and Modbus Expansion Card
INTERNAL COIL MODELS
MODEL # MODEL DESCRIPTION
EC000 Internal Coil Model
EC400* Internal Coil Model with 4-20mA Repeater Expansion Card
ECR00 Internal Coil Model with 4-20mA Repeater Expansion Card
ECM00 Internal Coil Model with Modbus Expansion Card
EC4M0* Internal Coil Model with 4-20mA Repeater Expansion Card and Modbus Expansion Card
ECRM0 Internal Coil Model with 4-20mA Repeater Expansion Card and Modbus Expansion Card
*Discontinued model
1.5 | Included Components
CODE DESCRIPTION E0000 E0400 E0M00 E04M0 EC000 EC400 ECM00 EC4M0
A PF2100 • • • • • • • •
B Mounting Brackets & Screws • • • • • • • •
C Installation Guide • • • • • • • •
D Internal Coil • • • •
E Ferrules (2) • • • •
F Straight Silicone Boots (2) • • • •
G Ignition Cable (20ft) • • • •
H 4-20mA Repeater Expansion Card • • • •
I Modbus Expansion Card • • • •

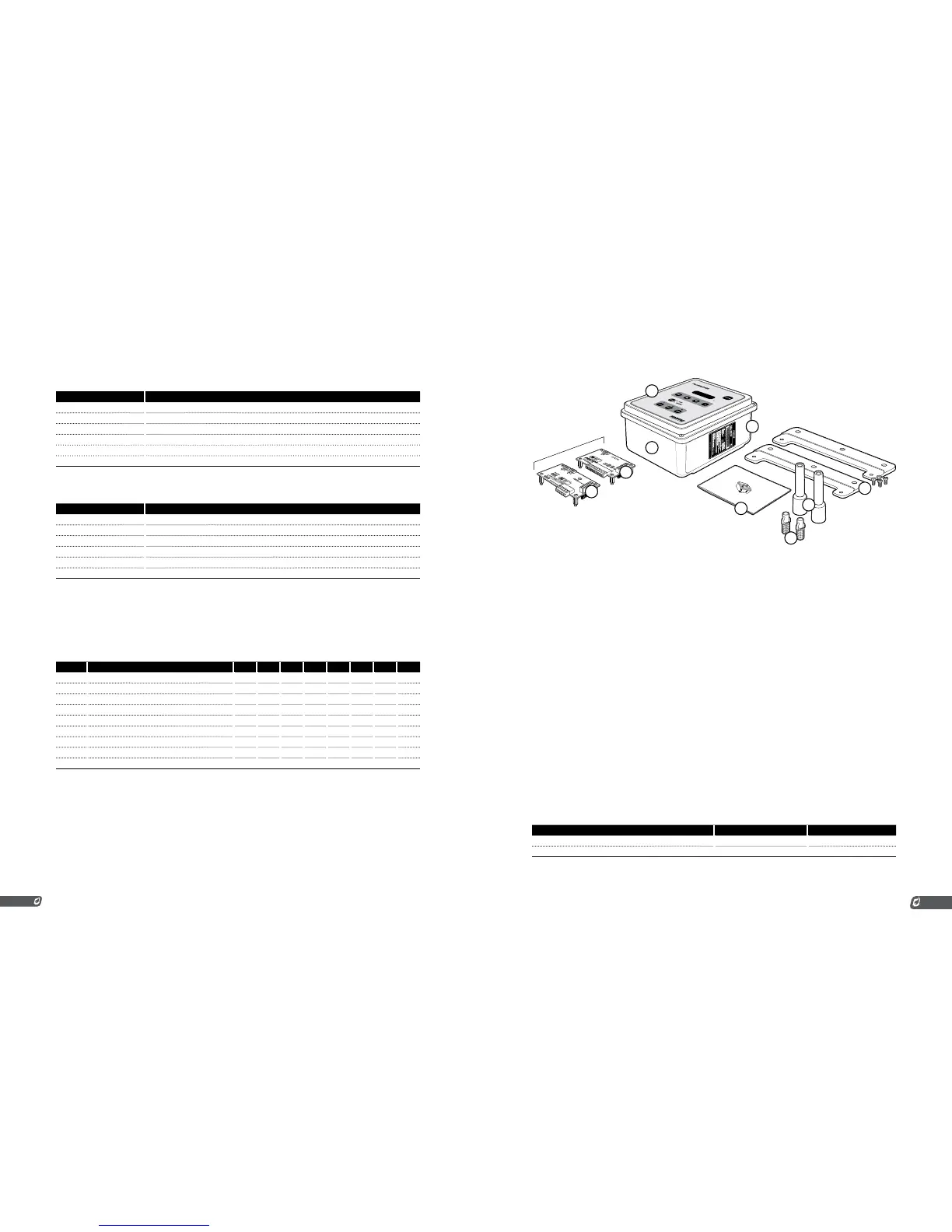

EXPANSION CARDS
F
A
E
I
G
B
D
H
C
GENERAL FEATURES
Designed for use with natural draft fire tube heaters
Meets or exceeds all relevant codes and standards
Easy installation with clearly marked component I/O
Easily accessible removable terminal connections
Rapid 3 second shut-down on flame-out
Electronic spark ignition
Low-power operating mode to accommodate solar panel or TEG applications
Auto-relight or manual operation
Transient protected and fail-safe circuits
All solid state circuit components
CSA compliant for Class I, Division 2 locations
Certified for use on B.149 compliant valve trains
Optional internal or external ignition coil
INPUTS & OUTPUTS
Digital inputs for safety interlock device connections (6)
Digital outputs (5)
4-20mA output (1)
Flame-rod input (1)
Thermocouple inputs (3)
TECHNICAL SPECIFICATIONS
TEMPERATURE RATINGS MIN MAX
Operating Range -40˚C (-40˚F) +55˚C (+130˚F)
Storage Range -40˚C (-40˚F) +80˚C (176˚F)
