PROLiNK PRC2401U - Access Point Mode Setup

PROLiNK® PRC2401U Wireless AC2600 MU-MIMO Dual-Band Gigabit Router
8

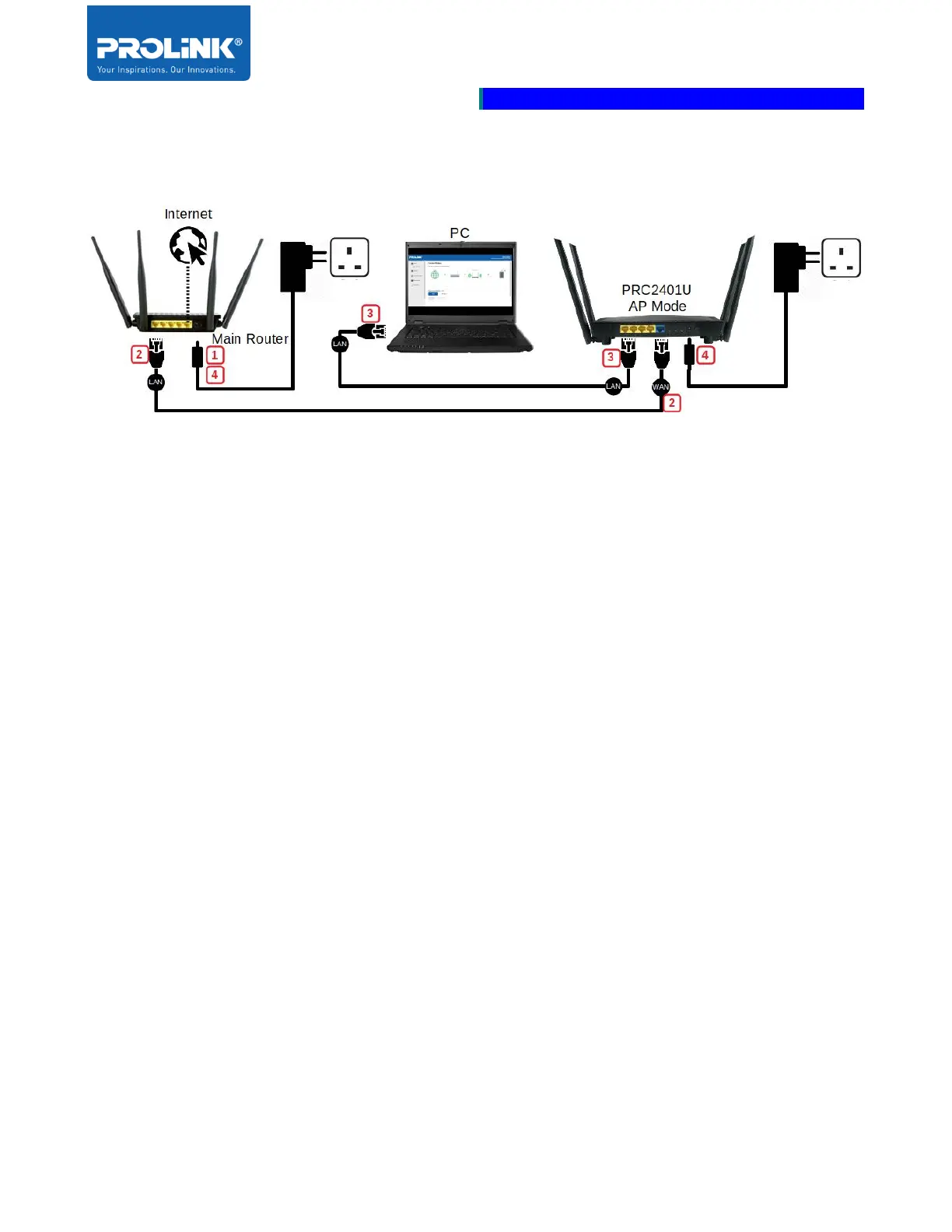

Access Point Mode Setup
1. Turn OFF Main Router/Existing Router
2. Connect Ethernet cable between Main/Existing Router LAN port to PRC2401U WAN Port.
3. Connect Ethernet cable between Computer LAN port to PRC2401U LAN port.
4. Turn ON power Main/Existing Router and PRC2401U. The boot process takes a few seconds to
complete.
