PROLiNK® PRC2401U Wireless AC2600 MU-MIMO Dual-Band Gigabit Router
35

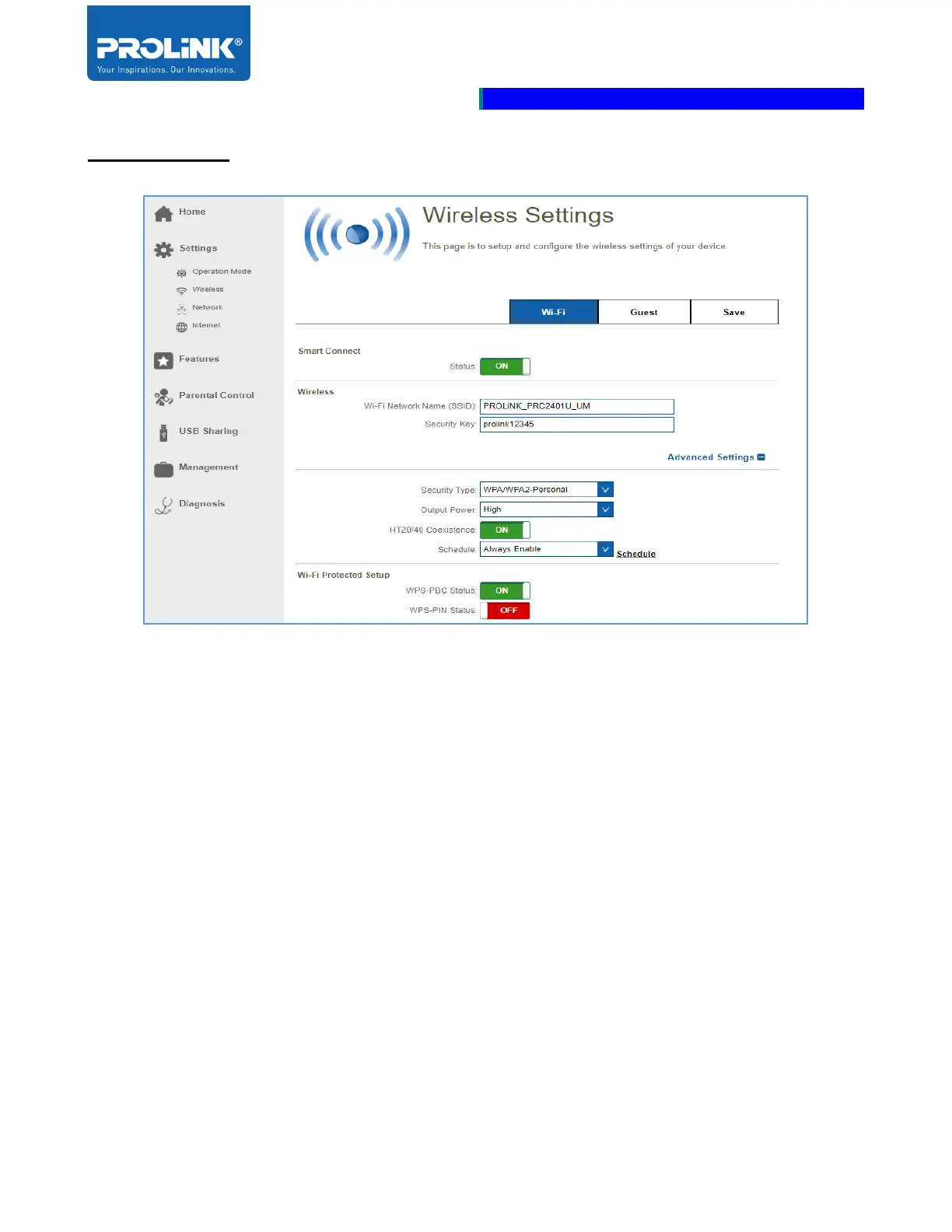

Smart Connect
• Status: Click the slider switch to enable and disable Smart Connect function. Disable the Smart
Connect will enable 2.4GHz and 5GHz wireless frequency band.
• Wi-Fi Network Name (SSID): Enter Wi-Fi name for your wireless network to be identify by
other client.
• Security Key: Enter a unique wireless security for other user to connect with the network.
• Security Type: Select type of security to be set. Select either Open or WPA/WPA2-Personal.
• Output Power: Select the desired wireless transmission power. Select from High, Medium or
Low.
• Schedule: by default is always enable. From the drop-down menu select one of the schedule
either pre-configure schedule or create your own schedule. To create your own schedule click
on the Schedule.
