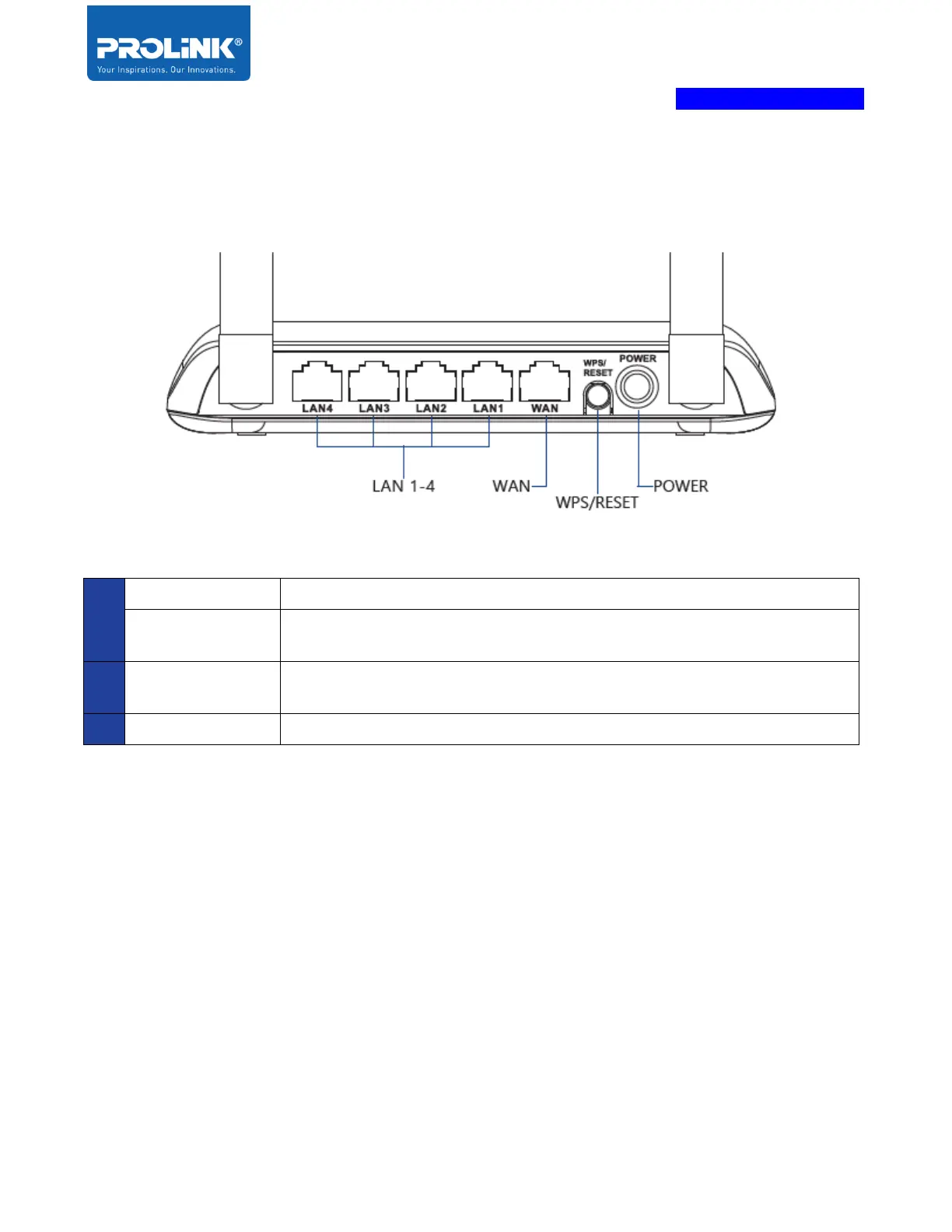

1.3 Hardware Overview
1
LAN 1 - 4
The LAN ports to be connected to local PC / laptop
2
WAN
WAN port is to be connected to the broadband access device:-
Fibre / Cable / DSL modem, or to any other internet source
3
WPS / RESET
To Reset to factory default, press and hold for 10 seconds
To trigger WPS function, press and hold for 2 seconds
4
POWER
Power socket (DC-In) to be connected to the power adapter
