Prolitec AirQ 1570 User Manual

AQ1570 11Chapter 5 Installation
Appliance Location
1. Placement of an AQ1570 cartridge head is the KEY TO OPTIMAL PERFORMANCE. It is
important to identify a location where the output of AQ1570 can use, rather than ght, the
natural air currents in a room.
2. Air currents in a room are determined by using a SMOKE TEST KIT available from Prolitec or any
source of smoke or vapor, such as a candle or match.
3. To conduct a smoke test, stand at the entrance of the room in front of the door and observe the
direction of the smoke or vapor. If the smoke drifts into the room the AQ1570 cartridge head
should be installed somewhere near the door.

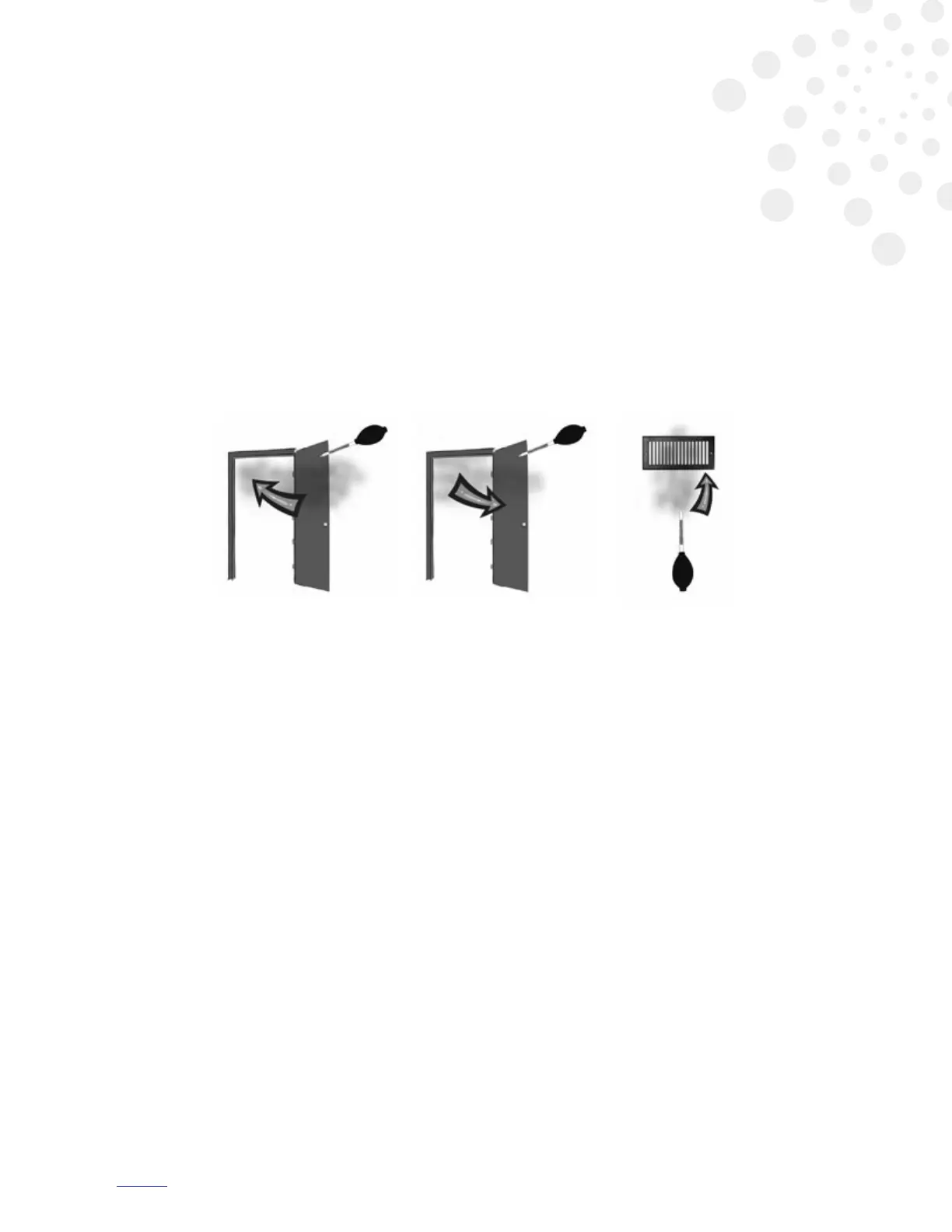

Figure 1
Smoke ows
away from door
Smoke Tube
Smoke Tube
Figure 2
Smoke ows
back toward door
Figure 3
Smoke travels
toward grill
Smoke Tube
See Figure 1. If the smoke drifts out of the room, the AQ1570 cartridge head should be placed on
the wall furthest from the door. See Figure 2. If there is no clear direction that the smoke travels or it
travels upward into the air-conditioning return grill, nd a position near the air-conditioning supply
grill. See Figure 3.
NOTE: The location of AQ1570 MUST NOT be near an HVAC return grill, exhaust fan or vent, or an
open door or window through which air is leaving the space. Remember, you want to work with the
natural air ow, not against it.
5

Prolitec AirQ 1570 Specifications

Power

input voltage	100 – 240V AC
input current	1.5A max
frequency	50/60 Hz
internal power	15VDC at 4 A
battery type	Lithium 3V, #CR2032

Operating Environment

working temperature	0˚ to 40˚ C
working humidity	85% or less
service area per cartridge head	Up to 150, 000 cu. ft. (4245 m³)

Capacity

liquid capacity	2500mL cartridges

Weight and Dimensions

CCU dimensions	36cm x 35cm x 17.2cm
cartridge head dimensions	35.6cm x 18cm x 17.2cm
CCU weight with 4 modules	12 lbs (5.1 kg)
cartridge head weight	5 lbs (2.5 kg)
