AQ1570 17Chapter 6 OPERATING INSTRUCTIONS

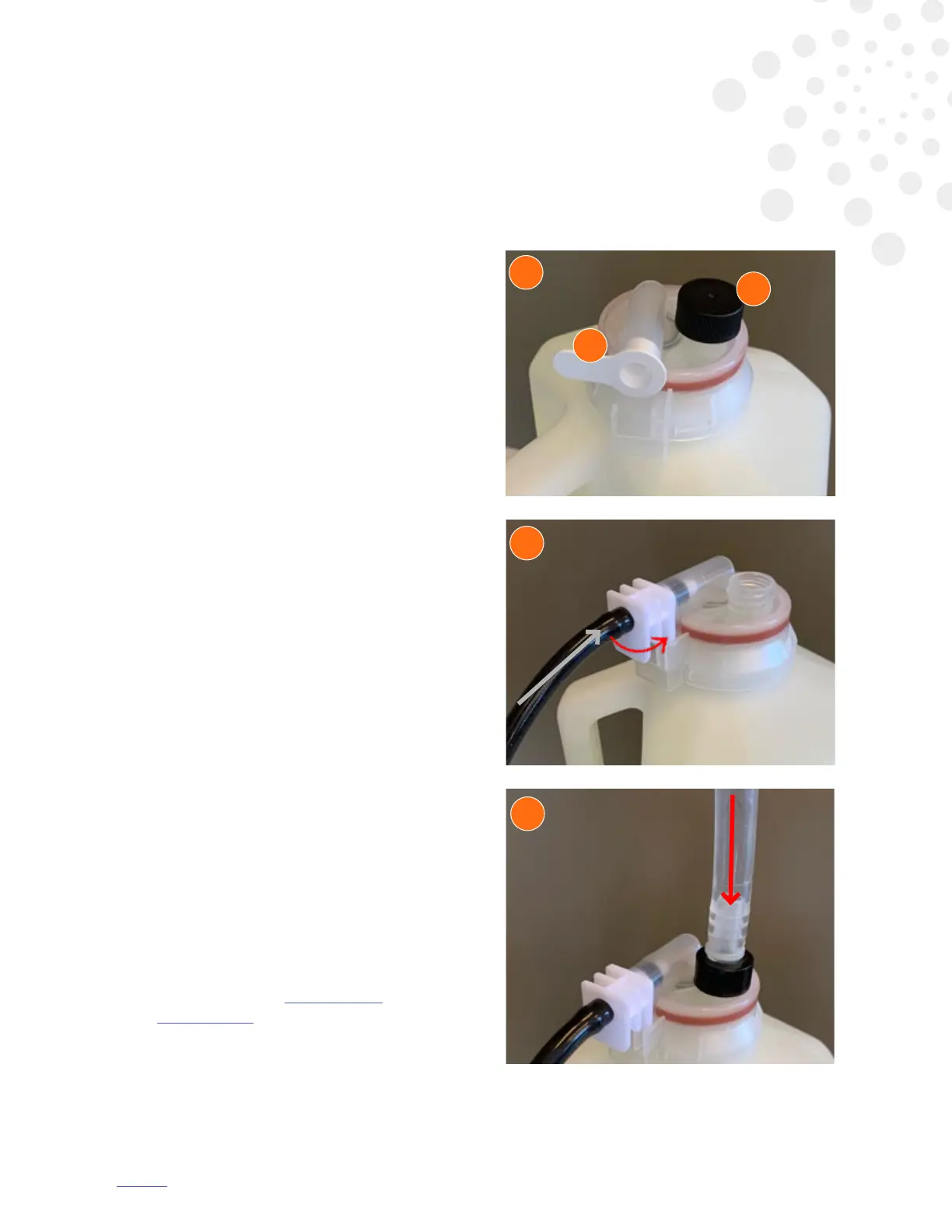

Setting Up the Cartridge
1. Use the key to unlock and open the door of the cartridge head.
2. Prepare the cartridge.
• Remove the big plug
from the air-stem port (A)
on the back side of the
cartridge.
• Remove the black screw
cap from the top outlet
port (B) of the cartridge.
3. Insert the airstem into the
air-stem port in the
cartridge head. Rotate air
stem to locked position.
4. Place and tighten the plume kit
tightly on the cartridge outlet port.
5. Place cartridge in the enclosure.
6. If the appliance has been previously
programmed, activate preferred
setting. If not (see Programming
the Appliance), press : so the
backlight turns on, close and lock
the door.
6
2
3
4
B
A

Prolitec AirQ 1570 Specifications

Power

input voltage	100 – 240V AC
input current	1.5A max
frequency	50/60 Hz
internal power	15VDC at 4 A
battery type	Lithium 3V, #CR2032

Operating Environment

working temperature	0˚ to 40˚ C
working humidity	85% or less
service area per cartridge head	Up to 150, 000 cu. ft. (4245 m³)

Capacity

liquid capacity	2500mL cartridges

Weight and Dimensions

CCU dimensions	36cm x 35cm x 17.2cm
cartridge head dimensions	35.6cm x 18cm x 17.2cm
CCU weight with 4 modules	12 lbs (5.1 kg)
cartridge head weight	5 lbs (2.5 kg)
