AQ1570 16Chapter 6 OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS

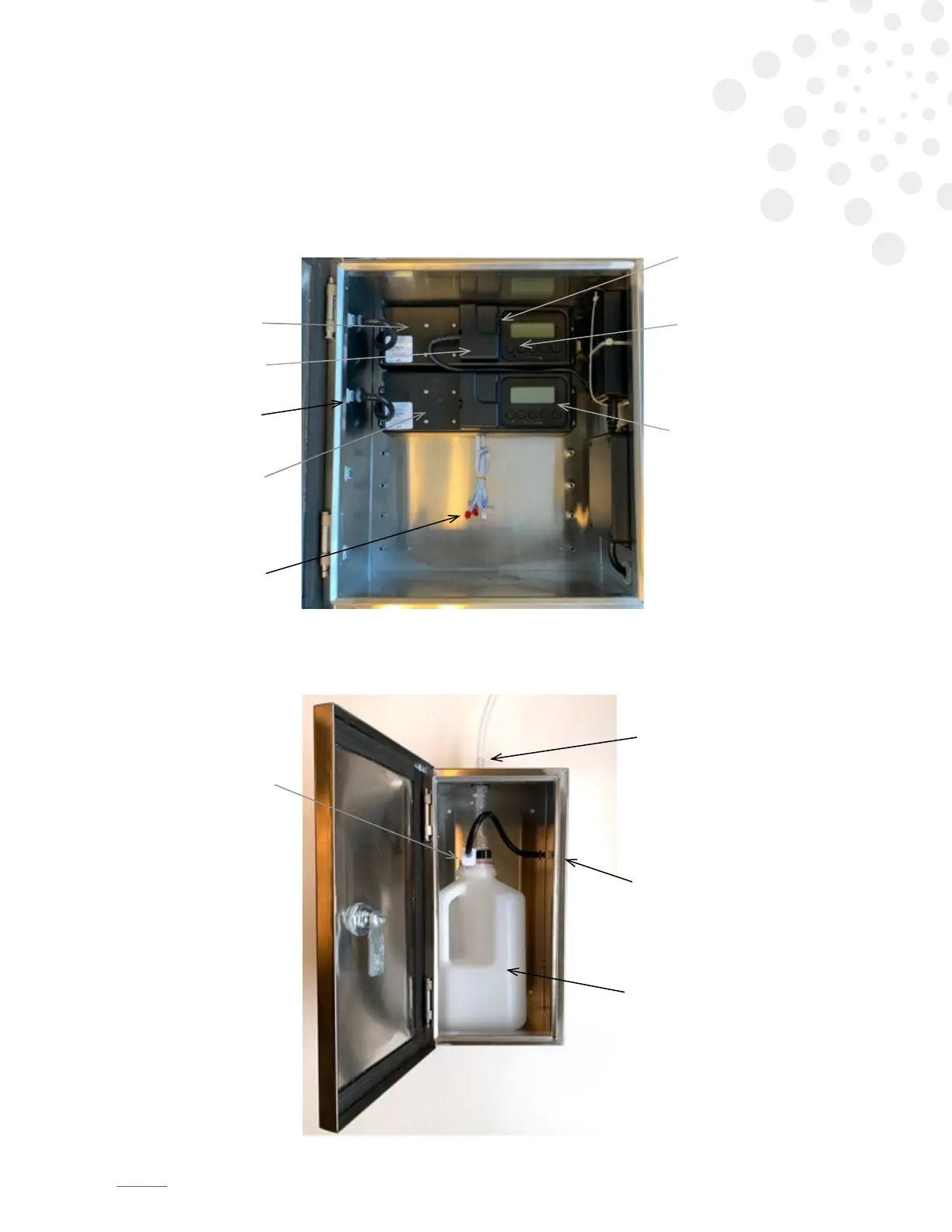

Features and Controls
Top Module
Connections
for Add-On
Modules
Second
Module
Airline Fittings
DC Jack
Reset and
Programming
Replaceable Battery
User Interface
CCU
Locking Air Stem
and Hose
Plume Kit
assembled
with Injector
Tubing
Custom
2500mLCartridge
Cartridge Unit
Airline Fittings
6

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Prolitec AirQ 1570 and is the answer not in the manual?

Prolitec AirQ 1570 Specifications

Power IconPower
input voltage100 – 240V AC
input current1.5A max
frequency50/60 Hz
internal power15VDC at 4 A
battery typeLithium 3V, #CR2032
Operating Environment IconOperating Environment
working temperature0˚ to 40˚ C
working humidity85% or less
service area per cartridge headUp to 150, 000 cu. ft. (4245 m³)
Capacity IconCapacity
liquid capacity2500mL cartridges
Weight and Dimensions IconWeight and Dimensions
CCU dimensions36cm x 35cm x 17.2cm
cartridge head dimensions35.6cm x 18cm x 17.2cm
CCU weight with 4 modules12 lbs (5.1 kg)
cartridge head weight5 lbs (2.5 kg)
