AQ1570 14Chapter 5 Installation
Installing an Additional Module
To install an additional module in the CCU:

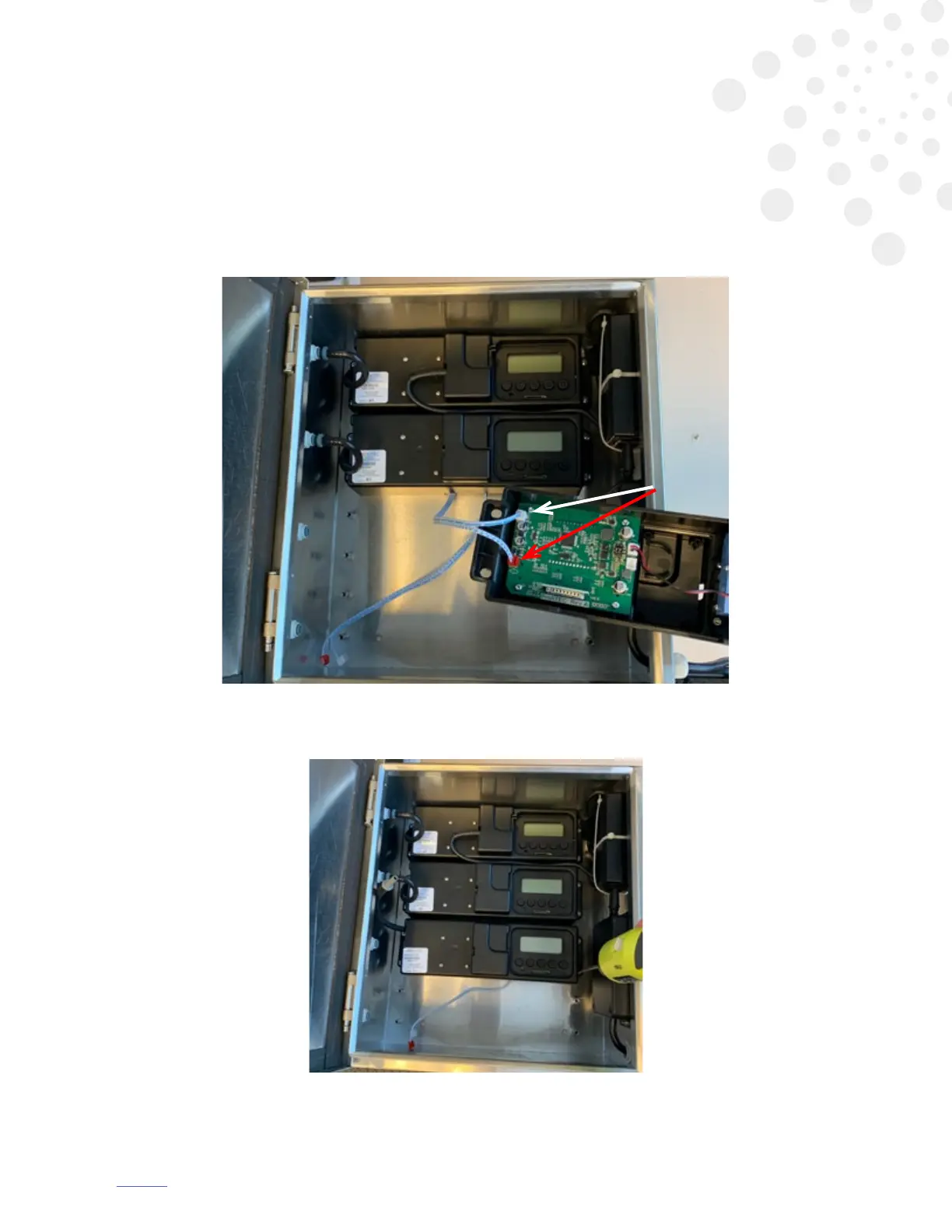

1. Connect one wire harness to the two inputs (one red and one white) on the back of the circuit
board of the new module, as shown.
2. Place the connected module over the next four standoffs and use four screws to secure it in
place.
5
