Prolitec AirQ 1570 User Manual

AQ1570 12Chapter 5 Installation
Wall-Mounting AQ1570
Installation Kits
One mounting kit is provided for each enclosure, and one plume kit is provided for each cartridge
enclosure.

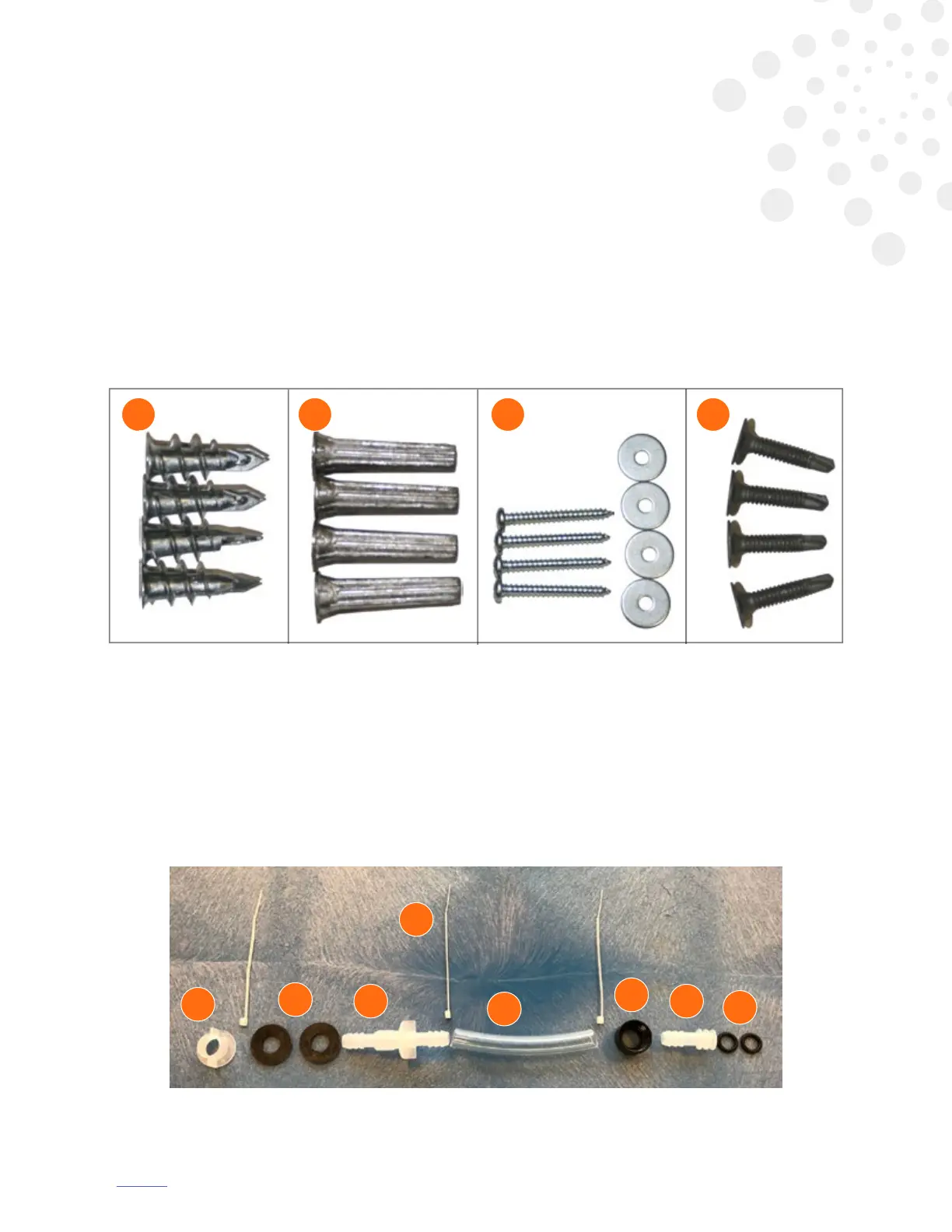

SUB1400MOUNT contains the following:
1. Four (4) drywall anchors for mounting in drywall
2. Four (4) lead anchors for mounting in concrete
3. Four (4) screws and four (4) washers for mounting in drywall and concrete
4. Four (4) #10 self-tapping sheet metal screws for mounting in sheet metal
1 432
KIT2500PLUME contains the following:
1. 2500 Plume Kit Parts (parts 1a, 1b, 1c are not available separately]
2. Two (2) washers
3. Three (3) cable ties
4. 3.75” injector tubing
5. One (1) cap
6. Two (2) o-rings
1a
2
1b
3
4
5
1c
6
5

Prolitec AirQ 1570 Specifications

Power

input voltage	100 – 240V AC
input current	1.5A max
frequency	50/60 Hz
internal power	15VDC at 4 A
battery type	Lithium 3V, #CR2032

Operating Environment

working temperature	0˚ to 40˚ C
working humidity	85% or less
service area per cartridge head	Up to 150, 000 cu. ft. (4245 m³)

Capacity

liquid capacity	2500mL cartridges

Weight and Dimensions

CCU dimensions	36cm x 35cm x 17.2cm
cartridge head dimensions	35.6cm x 18cm x 17.2cm
CCU weight with 4 modules	12 lbs (5.1 kg)
cartridge head weight	5 lbs (2.5 kg)
