Prolitec AirQ 1570 User Manual

AQ1570 7Chapter 3 Unpacking
Unpacking

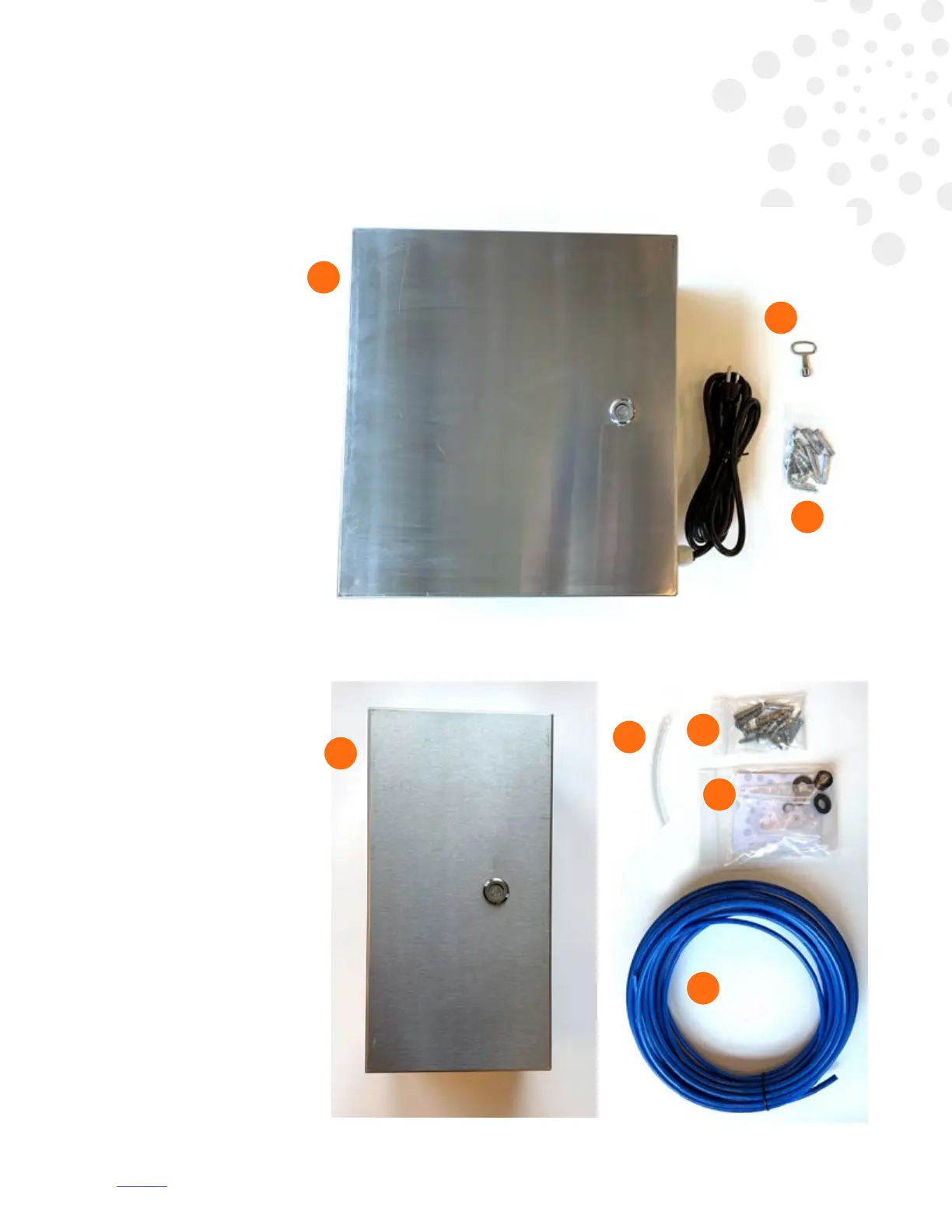

Remove the AQ1570 Central Control Unit (CCU) from the container. The following items should be
included:
1. AQ1570 CCU
2. Key
3. Mount Kit
Remove the AQ1570 cartridge head(s) from the container(s). The following items should be included:
1. Cartridge Enclosure
2. Air Line Tubing (50 ft)
3. Plume Kit
4. Mount Kit
5. Injector Tubing (6”)
3
1
1
2
2
3
3
4
5

Prolitec AirQ 1570 Specifications

Power

input voltage	100 – 240V AC
input current	1.5A max
frequency	50/60 Hz
internal power	15VDC at 4 A
battery type	Lithium 3V, #CR2032

Operating Environment

working temperature	0˚ to 40˚ C
working humidity	85% or less
service area per cartridge head	Up to 150, 000 cu. ft. (4245 m³)

Capacity

liquid capacity	2500mL cartridges

Weight and Dimensions

CCU dimensions	36cm x 35cm x 17.2cm
cartridge head dimensions	35.6cm x 18cm x 17.2cm
CCU weight with 4 modules	12 lbs (5.1 kg)
cartridge head weight	5 lbs (2.5 kg)
