Prolon VC2000 Series - Page 23

PL-C1050-VAV
M2000-RTU
M2000-HP
C1050-RTU
C1050-HP
NC2000
Outside Temperature (optional)
Occupancy (optional)
Supply Air Temperature
Occupancy
Math Values
Outside Temperature
M2000-HYD
Damper Override
Occupancy
Math Values
Outside Temperature
T1000
T500
T200
Zone Temperature
Setpoint
Unoccupied Override
Damper Override
Outputs 3/4/5 disabled on morning
warm up (optional)
Outputs 3/4/5 override based on
outside temperature (optional)
Outputs 3/4/5 override based on
outside temperature (optional)
Radiant Floor Temperature
(optional, T1000 only)

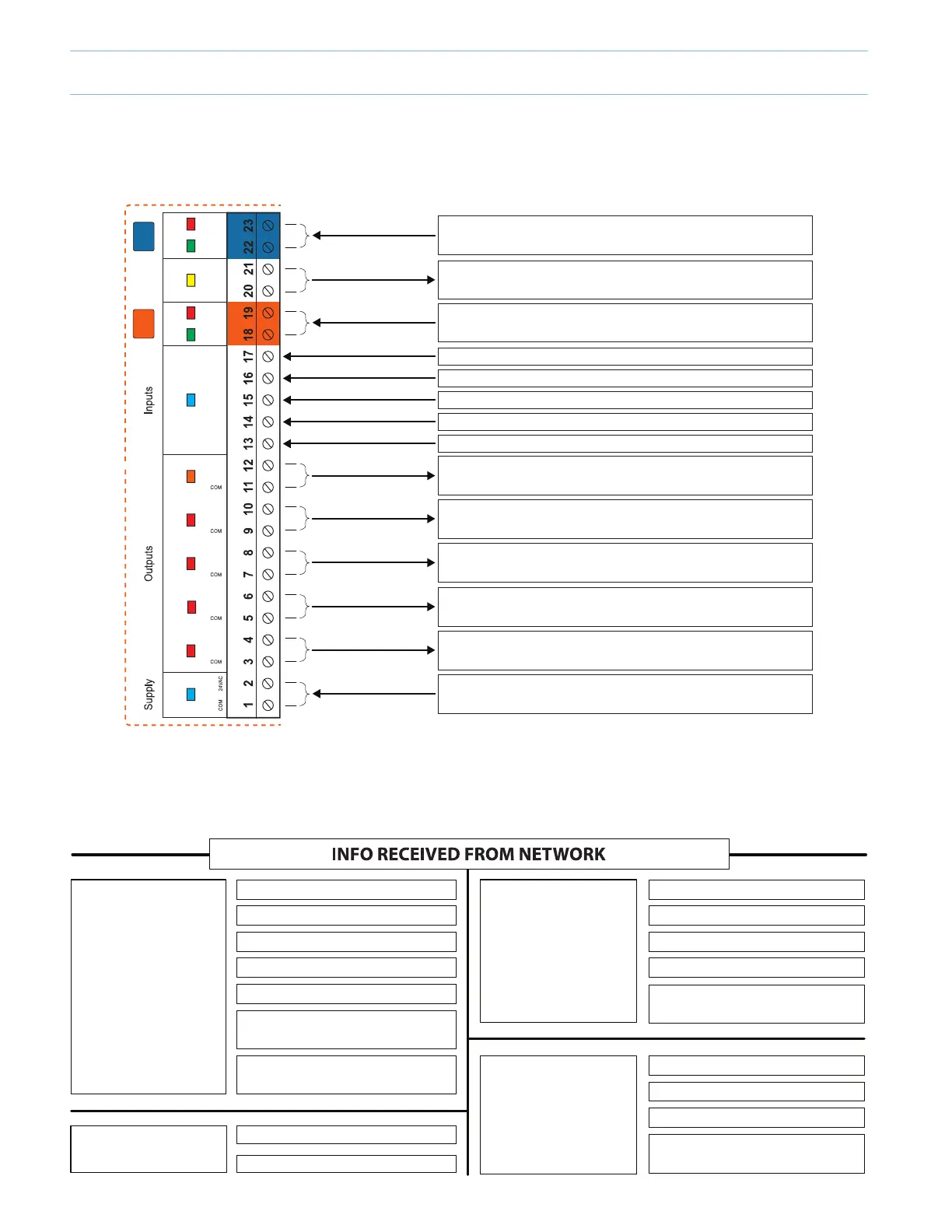

INT Port: Incoming Modbus RS485 communication from digital
sensor -OR- Remote computer with Prolon Focus Software
NET Port: Incoming Modbus RS485 communication
-OR- BACnet MS/TP
Digital Input for Night Setback / Stanby Mode
Multi-function Analog Input
Common for all the inputs
Temperature setpoint (0-10K potentiometer)
Room temperature sensor (10K thermistor)
Output 5 (Analog 0-10 VDC)
(Max current: 40 mA)
Output 4 - Isolated or Source, TRIAC 24 VAC
(Max current: 300 mA)
Output 3 - Isolated or Source, TRIAC 24 VAC
(Max current: 300 mA)
Output 2 - Isolated or Source, TRIAC 24 VAC
(Max current: 300 mA)
Output 1 - Isolated or Source, TRIAC 24 VAC
(Max current: 300 mA)
Power source of the controller
24 VAC - Class 2
DO1
DO2
DO3
DO4
AO
DO124V DO2 DO3 DO4 AO HBEAT STAT
NETREC NETSND INTREC INTSND
UI1
UI2
COM
UI3
DI
-
24VAC
COM
INT
+
B
NET
A
RS485
NET
RS485
INT
Power supply to digital sensor (24 VAC)
4-2
